Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 172
SE Group Confidential (Related Staff Only)

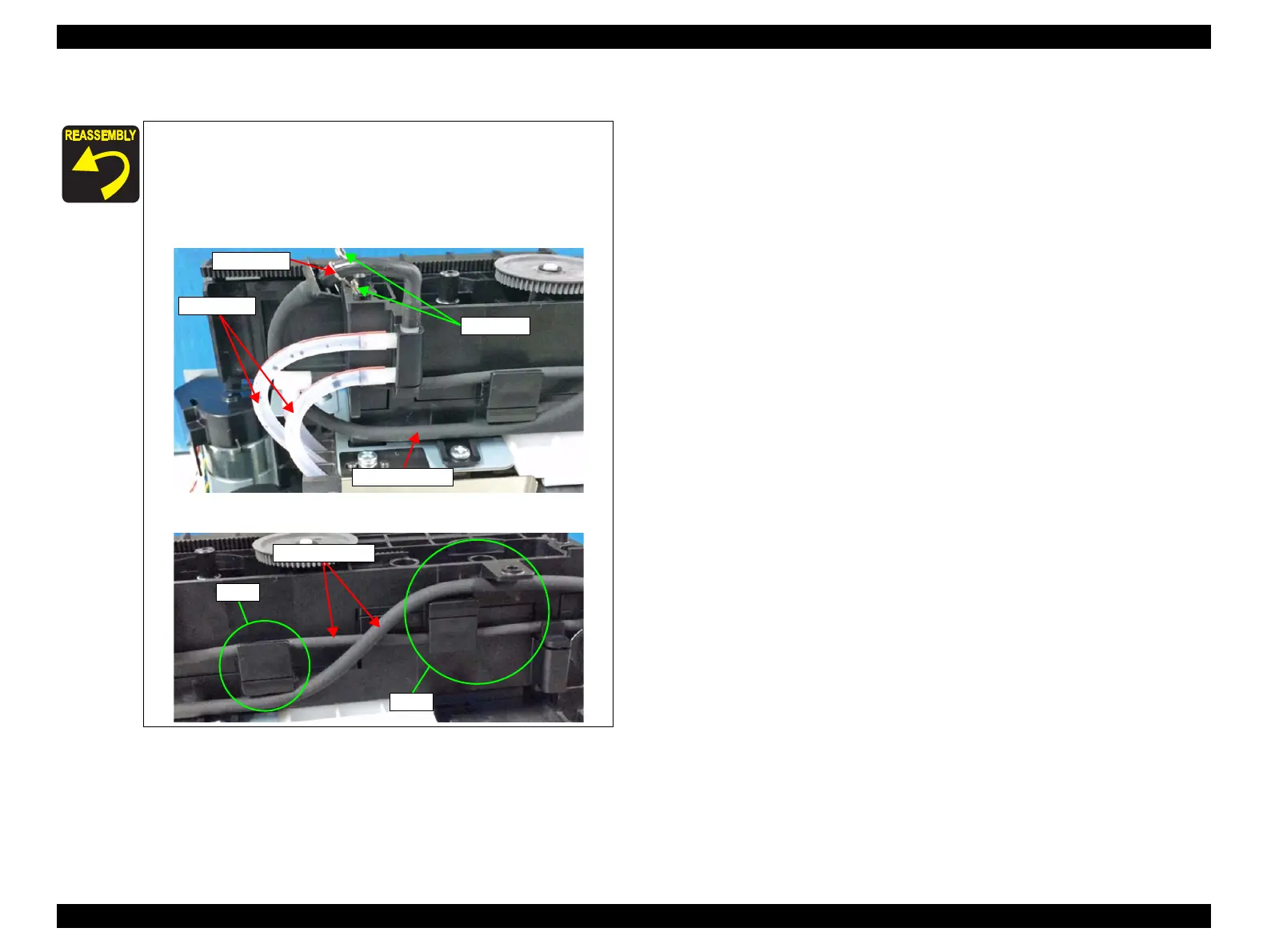

13. Remove the Tube Clamp, and remove the Waste Ink Tube.
When attaching the Waste Ink Tube, be careful of the following
points.
 Route the Waste Ink Tube through the inner side than the
Pump Tube.
 Orient the lever part of the Tube Clamp referring below figure.
 Route the Waste Ink Tube through the two guides.
Tube Clamp
Waste Ink Tube
Lever part
Pump Tube
Guide
Waste Ink Tube
Guide
