Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 174
SE Group Confidential (Related Staff Only)
14. Remove the smaller clamp from the frame.

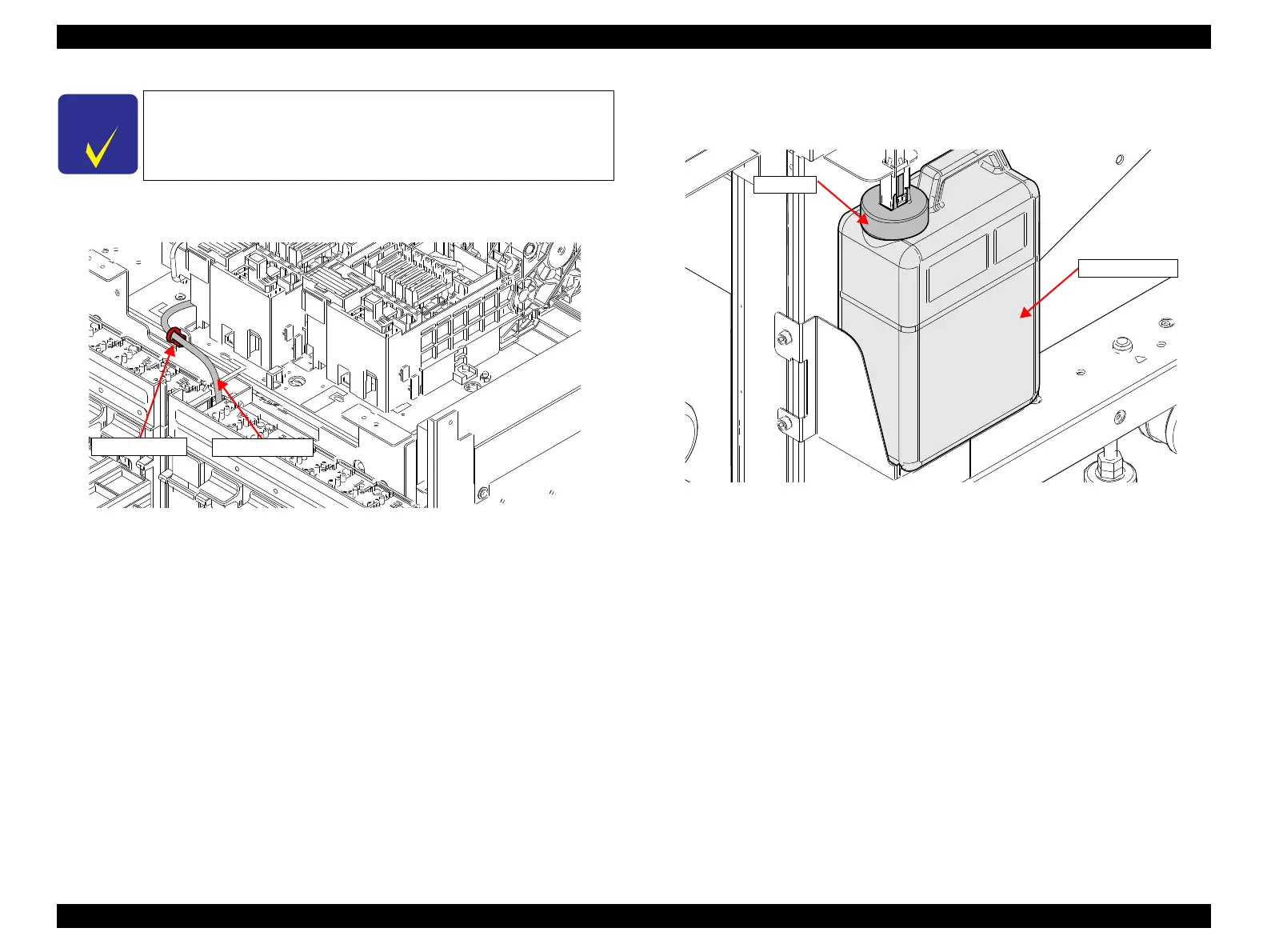

Figure 3-114. Removing the Waste Ink Tube (1)
15. Remove the Waste Ink Tank.
16. Remove the Stopper.
Figure 3-115. Removing the Waste Ink Tube (2)
C H E C K
P O I N T
When replacing the Waste Ink Tube, follow the procedure below.
Smaller clamp
Waste Ink Tube
Waste Ink Tank
Stopper
