Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 194
SE Group Confidential (Related Staff Only)

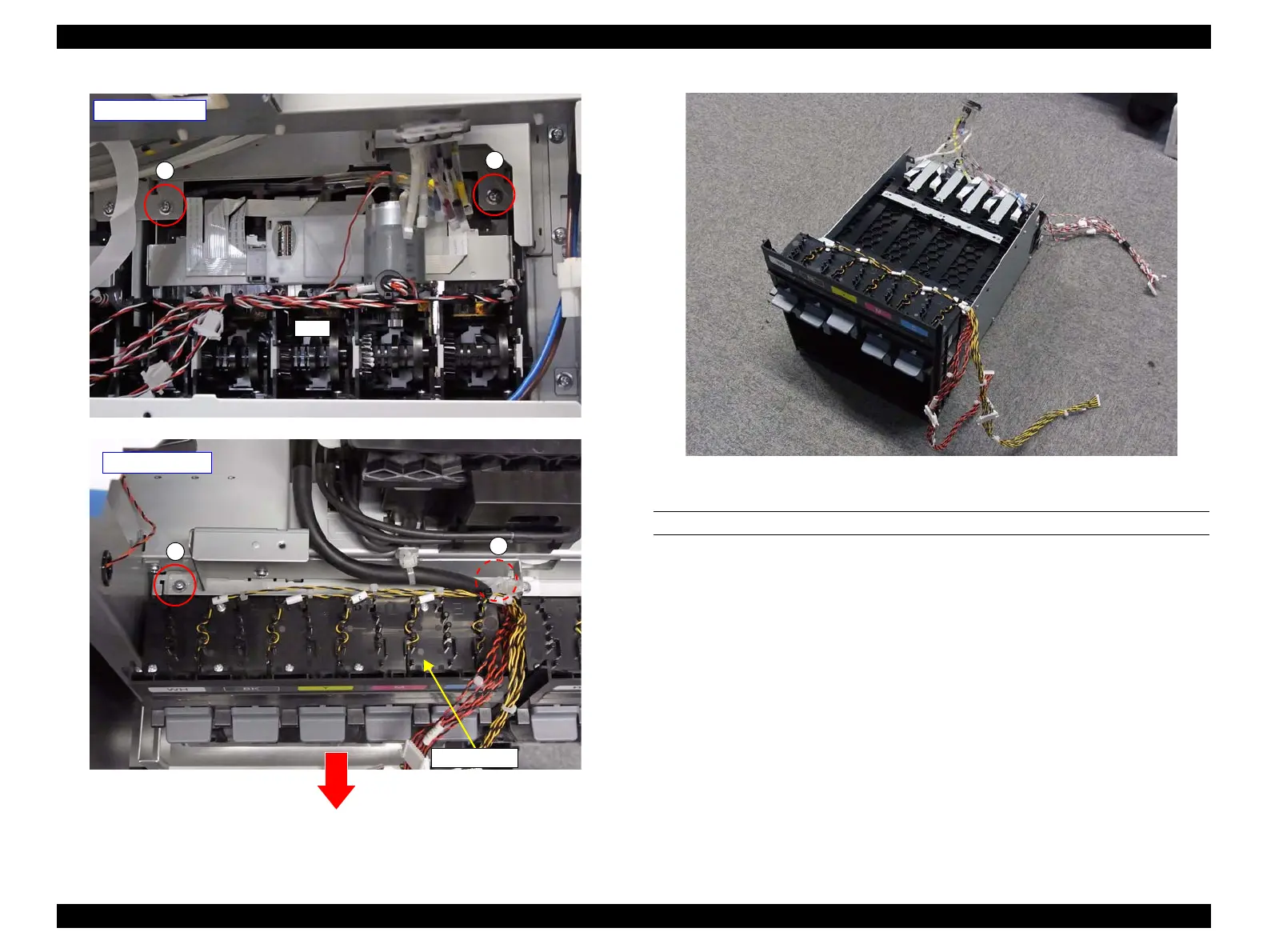

Figure 3-138. Removing the IC Holder 2
.
Figure 3-139. IC Holder
AFTER REPLACEMENT
1.
Install the four ink cartridges for service. (p207)
2. Lower the lock levers.
3. Turn on the printer.
4. Discard the waste ink.
5. Select Initial ink charge.
Select Single channel -> Ink Holder 2 (Full) -> Cyan/Yellow, Magenta/ Black
and Ink Cartridge for service, and press the [Run] button to perform the initial
ink charge. (p334)
6. Select Nozzle Check.
Select Nozzle Check Pattern Print, and press the [Run] button to perform the
nozzle check. (p311)
7. Perform cleaning if necessary. (p313)
H
H
H
H
Rear of IC Holder
Top of IC Holder
IC Holder 2
