DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 212
SE Group Confidential (Related Staff Only)
6. Remove the two screws, and remove the cover.
D) Silver M3x8 S-tite screw with built-in washer: 2 pcs

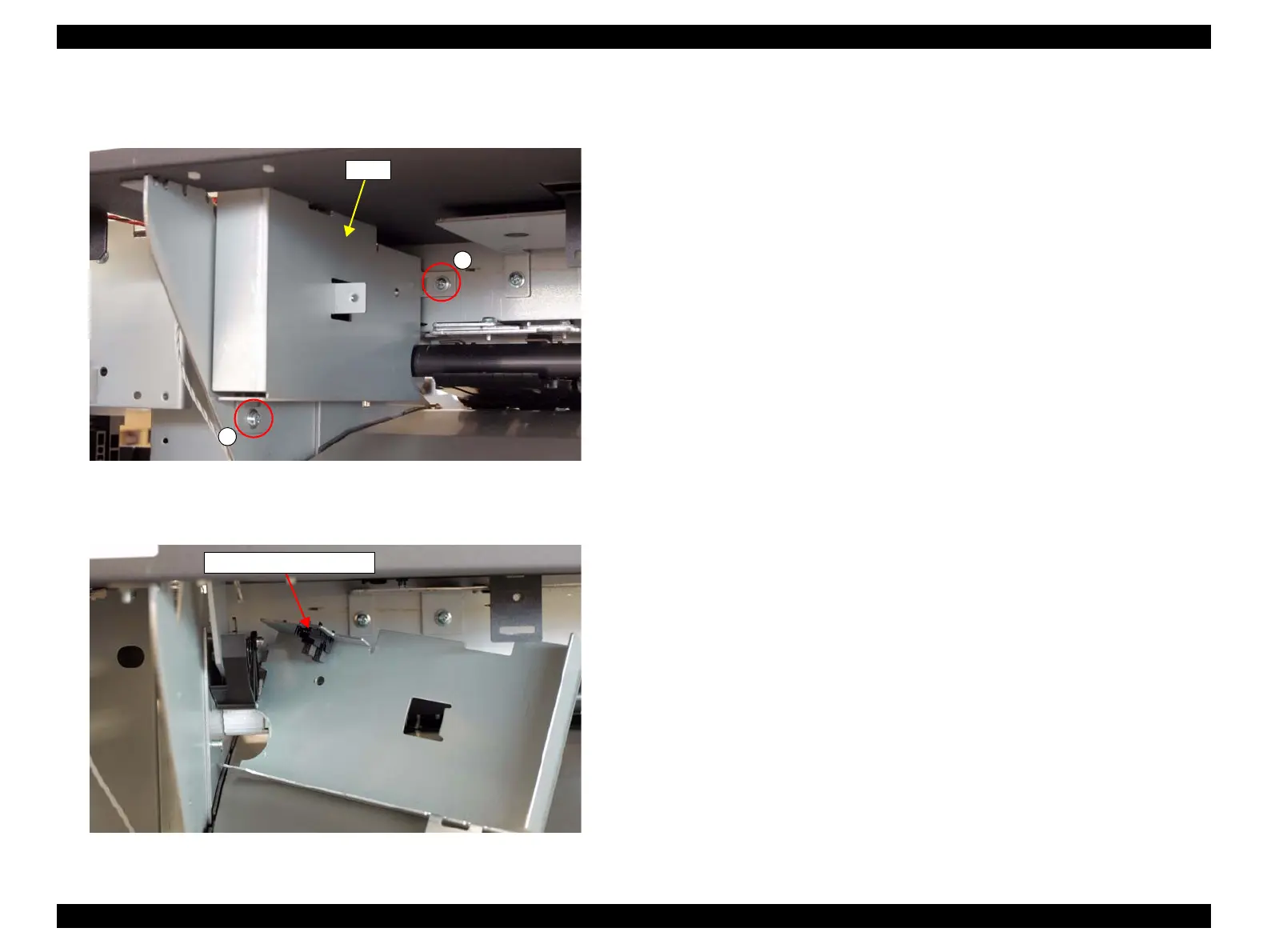

Figure 3-160. Removing the Cover
7. Disengage the hook, and remove the Media Loading Lever Sensor.
Figure 3-161. Removing the Media Loading Lever Sensor
D
D
Cover
Media Loading Lever Sensor
