Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 232
SE Group Confidential (Related Staff Only)

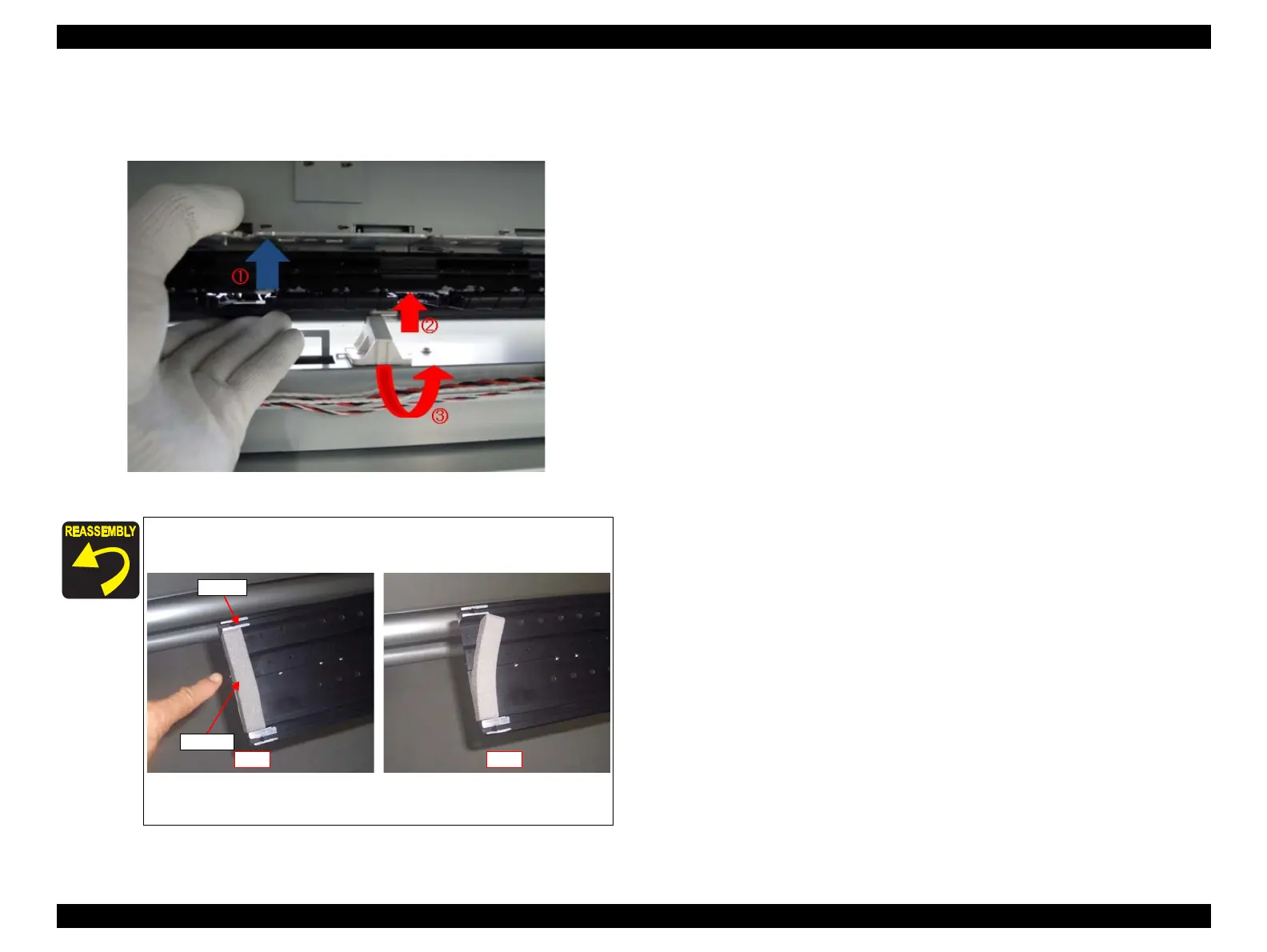

11. Raise the PF Roller by hand, and remove the PF Roller Center Support as shown
below figure.
Figure 3-185. Removing the PF Roller Center Support 3
 When installing the Platen, make sure the cushion is attached
correctly.
 Remove the PF Roller Center Support one by one. Because to
prevent bending of PF Roller.
Platen
Cushion
OK NG
