Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 238
SE Group Confidential (Related Staff Only)
3.4.8.3 Roll Paper Holder
1. Remove the C-ring (φ25).
2. Remove the screw, and remove the plate.
A) Silver M3x8 P-tite screw: 1 pcs
3. Remove the screw that secures the Roll Paper Holder.
B) Special screw: 1 pcs

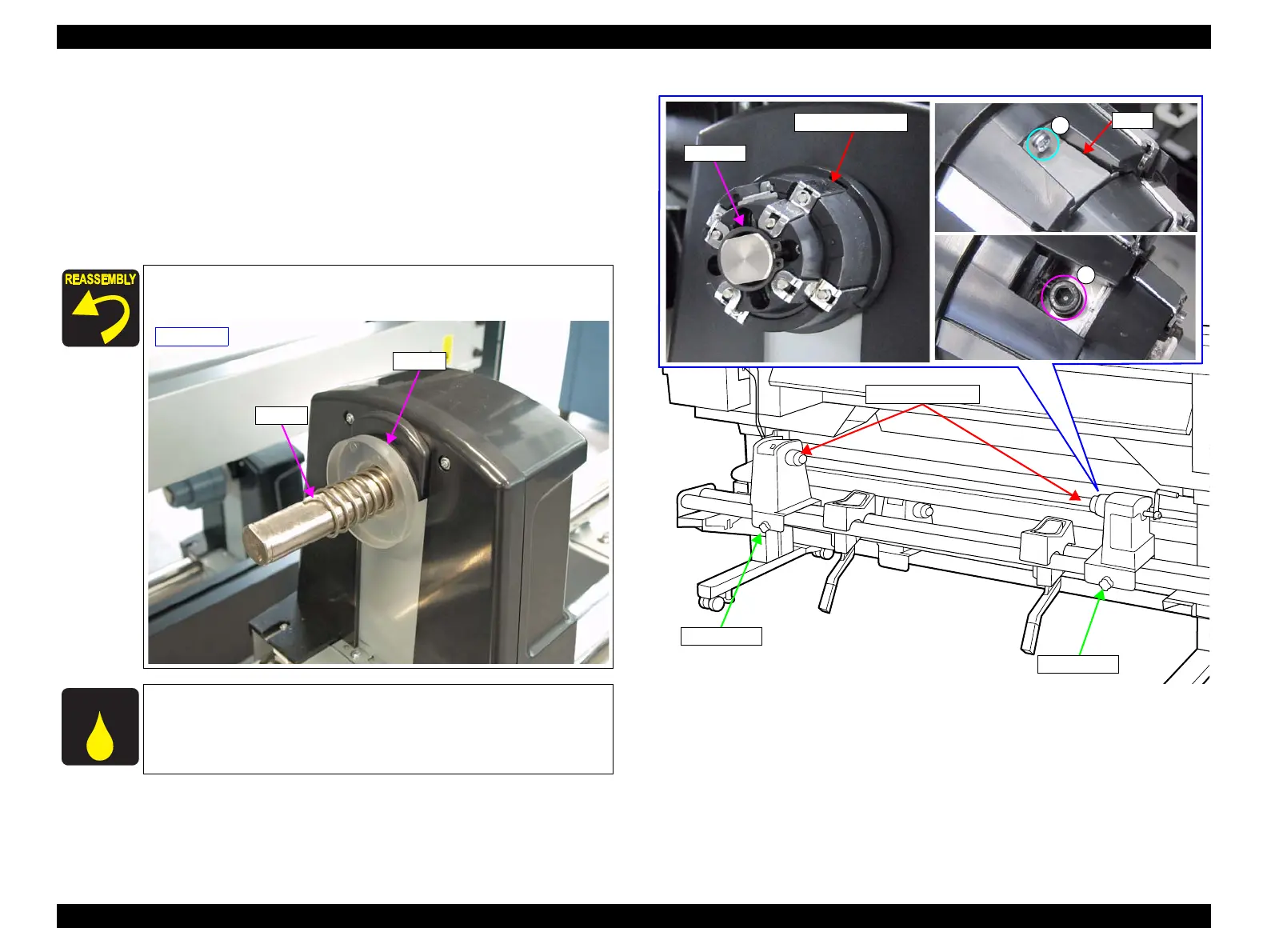

Figure 3-191. Removing the Roll Paper Holder
Before installing the Roll Paper Holder on the left, install the
holder and the spring as shown in the figure below.
LubricationLubrication
When replaced with a new part, make sure to lubricate the new one
referring to“5.6 Lubrication” (p387).
- Left side -
Spring
Holder
Roll Paper Holder
L Roll Unit
R Roll Unit
C-ring
Roll Paper Holder
A
Plate
B
