3.4.8.4 Sub-F Board (Roll)
1. Remove the Roll Paper Holder of the Right Roll Unit. (p238)
2. Disengage the hook, and remove the cover.
3. Disconnect the cable from the connector (CN600) on the Sub-F Board.
4. Remove the four screws that secure the Right Roll Cover. (
See Figure 3-193.)
A) Silver M3x8 S-tite screw with built-in washer: 4 pcs
5. Remove the two screws, and remove the Right Roll Side Cover. (See Figure
3-192.
)
B) Silver M3x8 S-tite screw with built-in washer: 2 pcs
6. Slightly lift the Right Roll Cover, and remove the Right Roll Side Cover

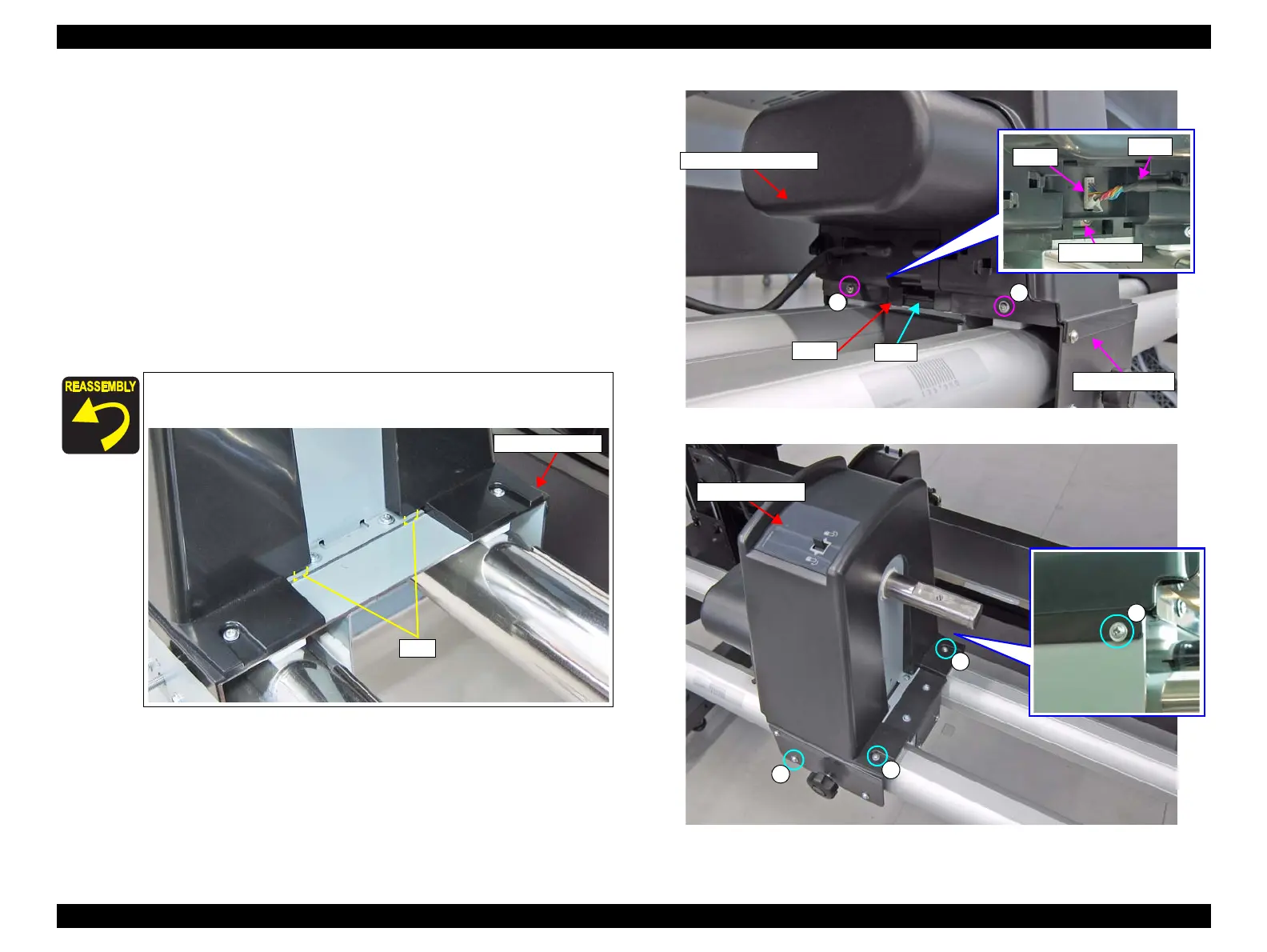

Figure 3-192. Removing the Cover
Figure 3-193. Removing the Right Roll Side Cover
Insert the two ribs of the Right Roll Cover into the two positioning
holes on the frame.
Right Roll Cover
Ribs
Sub-F Board
Cable
CN600
B
B
Right Roll Side Cover
Cover
Hook
Right Roll Unit
A
A
A
A
Right Roll Cover
