Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 243
SE Group Confidential (Related Staff Only)

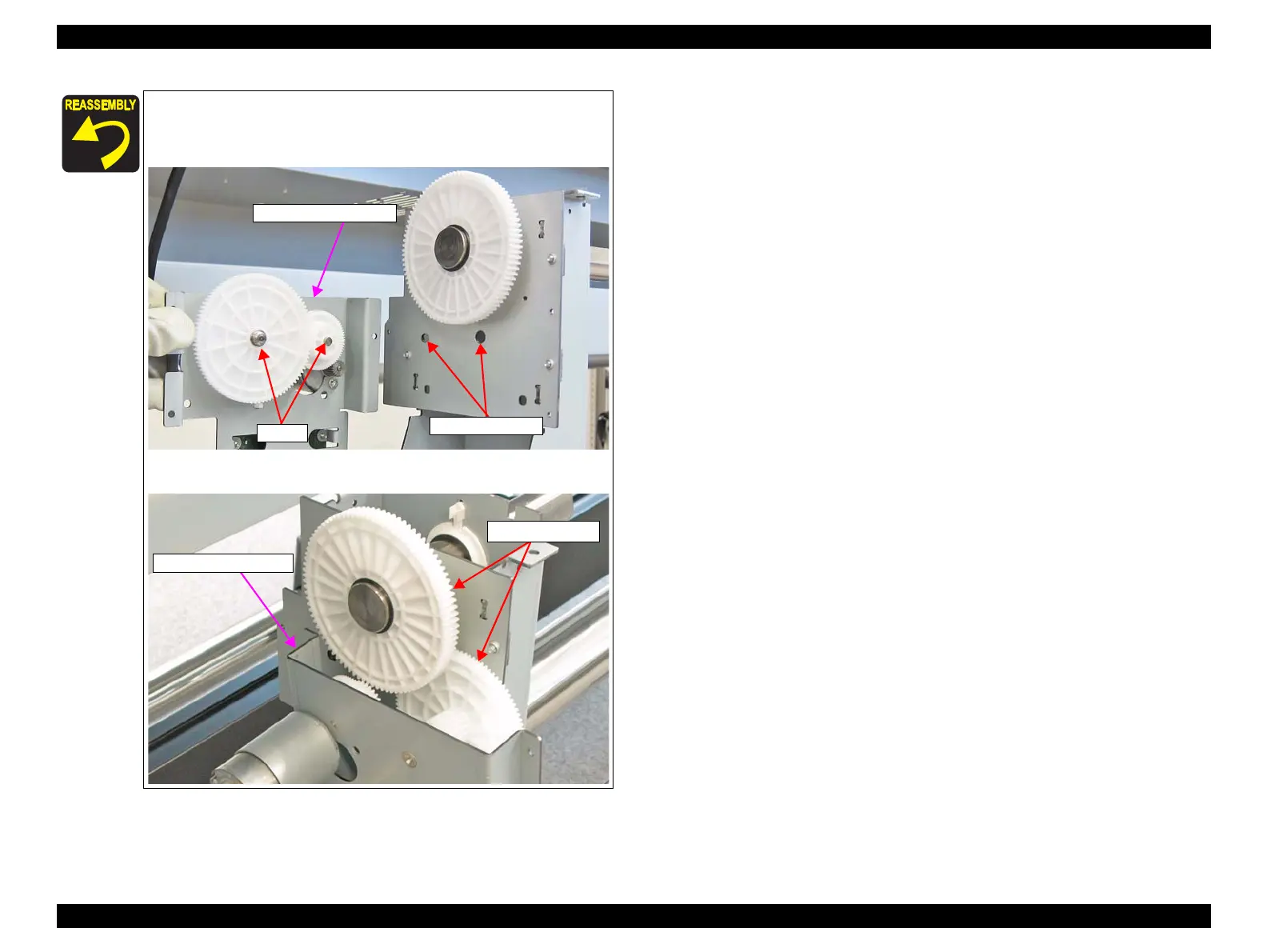

When installing the Right Roll Side Frame, confirm the following.
 Set the two shafts of the Right Roll Side Frame into the two
positioning holes on the frame.
 Install the two Compound Gears as shown in the figure below.
Shafts
Right Roll Side Frame
Positioning holes
Compound Gears
Right Roll Side Frame
