DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 242
SE Group Confidential (Related Staff Only)
8. Remove the two Compound Gears.
9. Remove the two screws, and remove the ATC Motor.
B) Silver M3x6 S-tite screw with built-in washer: 2 pcs

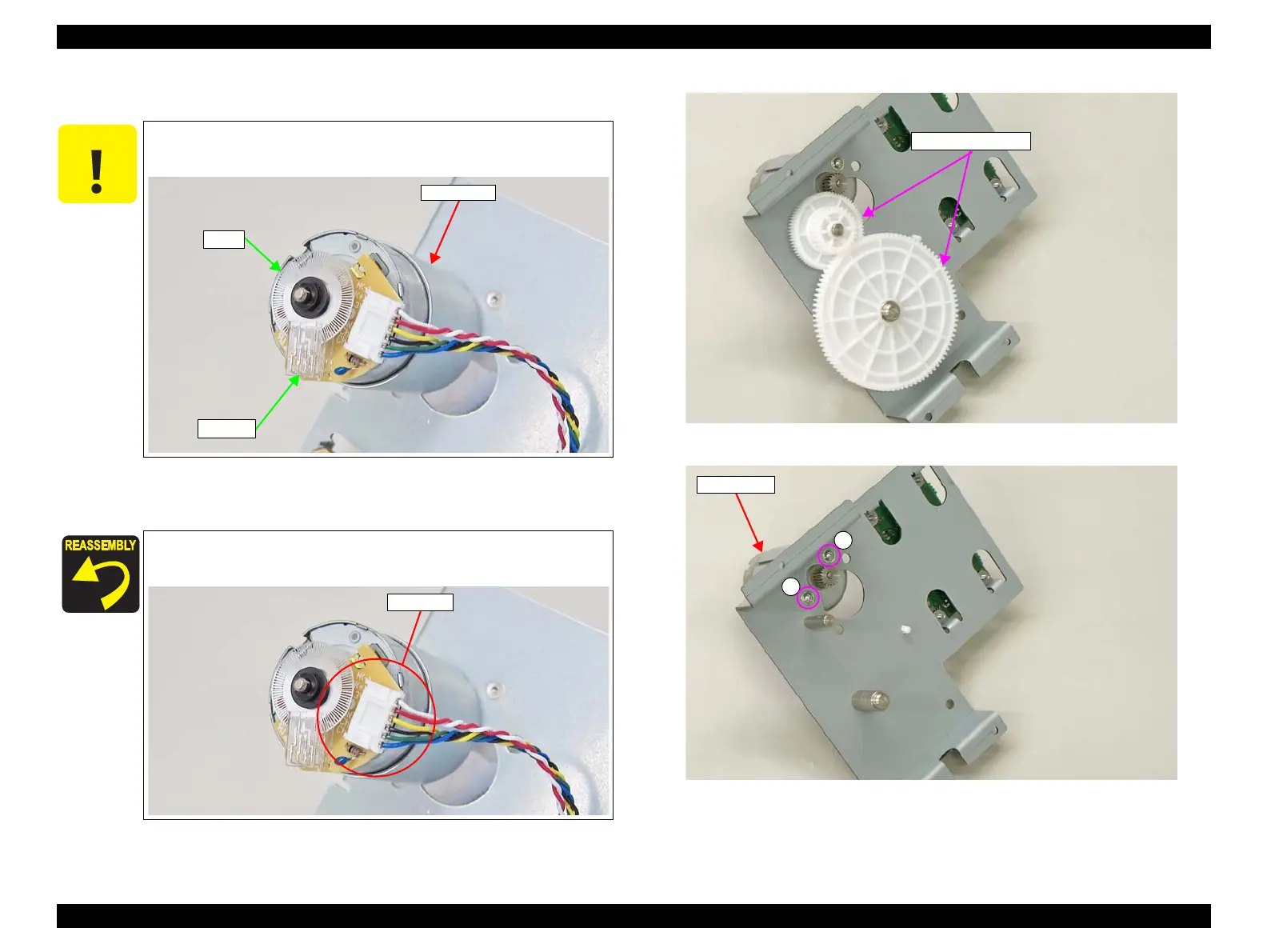

Figure 3-197. Removing the Compound Gears
Figure 3-198. Removing the ATC Motor
C A U T I O N
Be careful not to damage the encoder and scale of the ATC Motor
in the next step.
Make sure to install the ATC Motor in the correct orientation
checking the connector position.
ATC Motor
Scale
Encoder
Connector
Compound Gears
B
B
ATC Motor
