8. Remove the two Compound Gears.

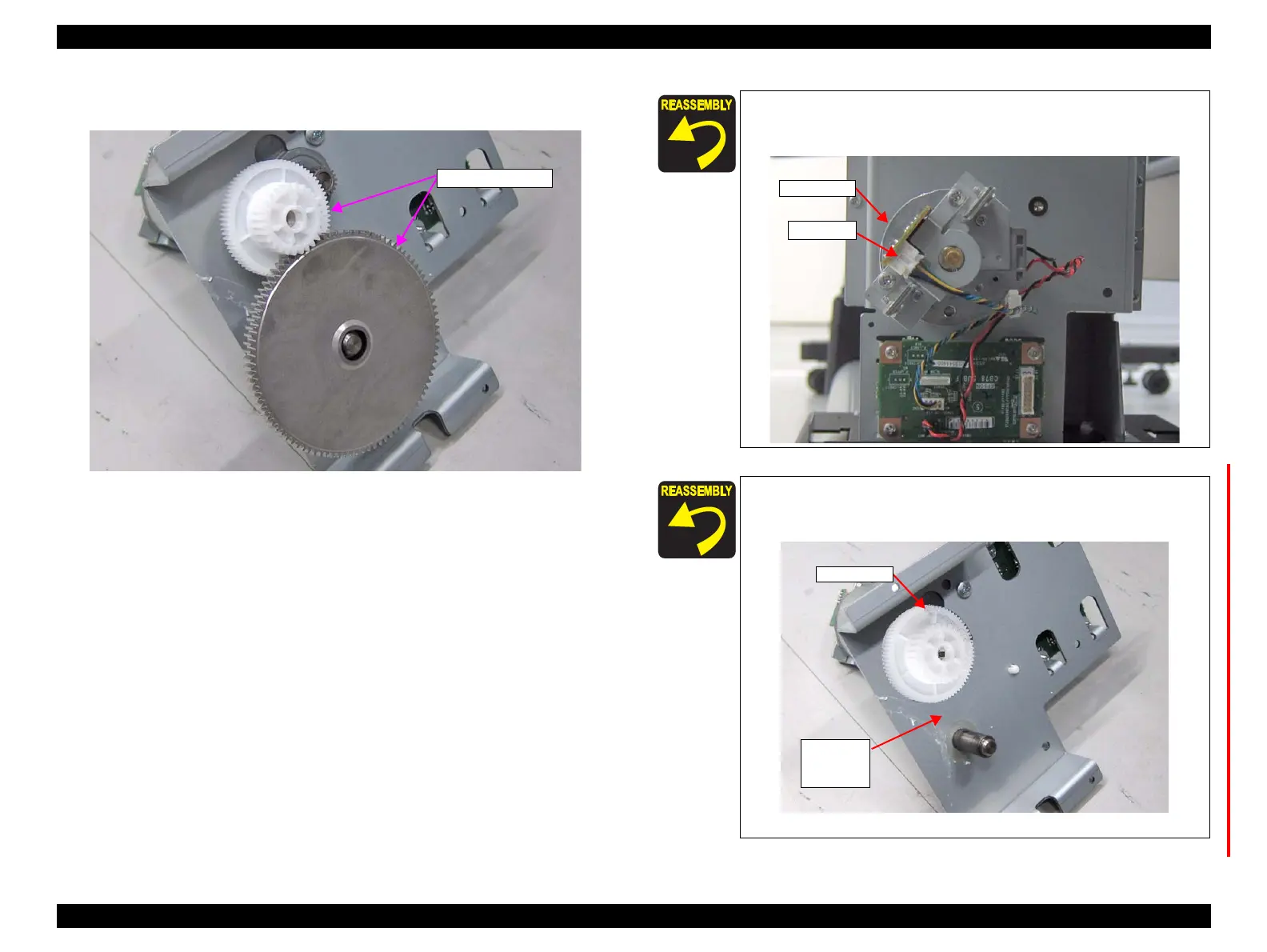

Figure 3-207. Removing the Compound Gears
9. Remove the two screws, and remove the Reel Motor.
B) Silver M3x6 S-tite screw with built-in washer: 2 pcs
Make sure to install the Reel Motor in the correct orientation
checking the connector position.
Gear and Mounting Plate should be replaced at the same time with
Mounting Plate Assy.
Figure 3-208. Mounting Plate Assy
To Next Page
