Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 251
SE Group Confidential (Related Staff Only)

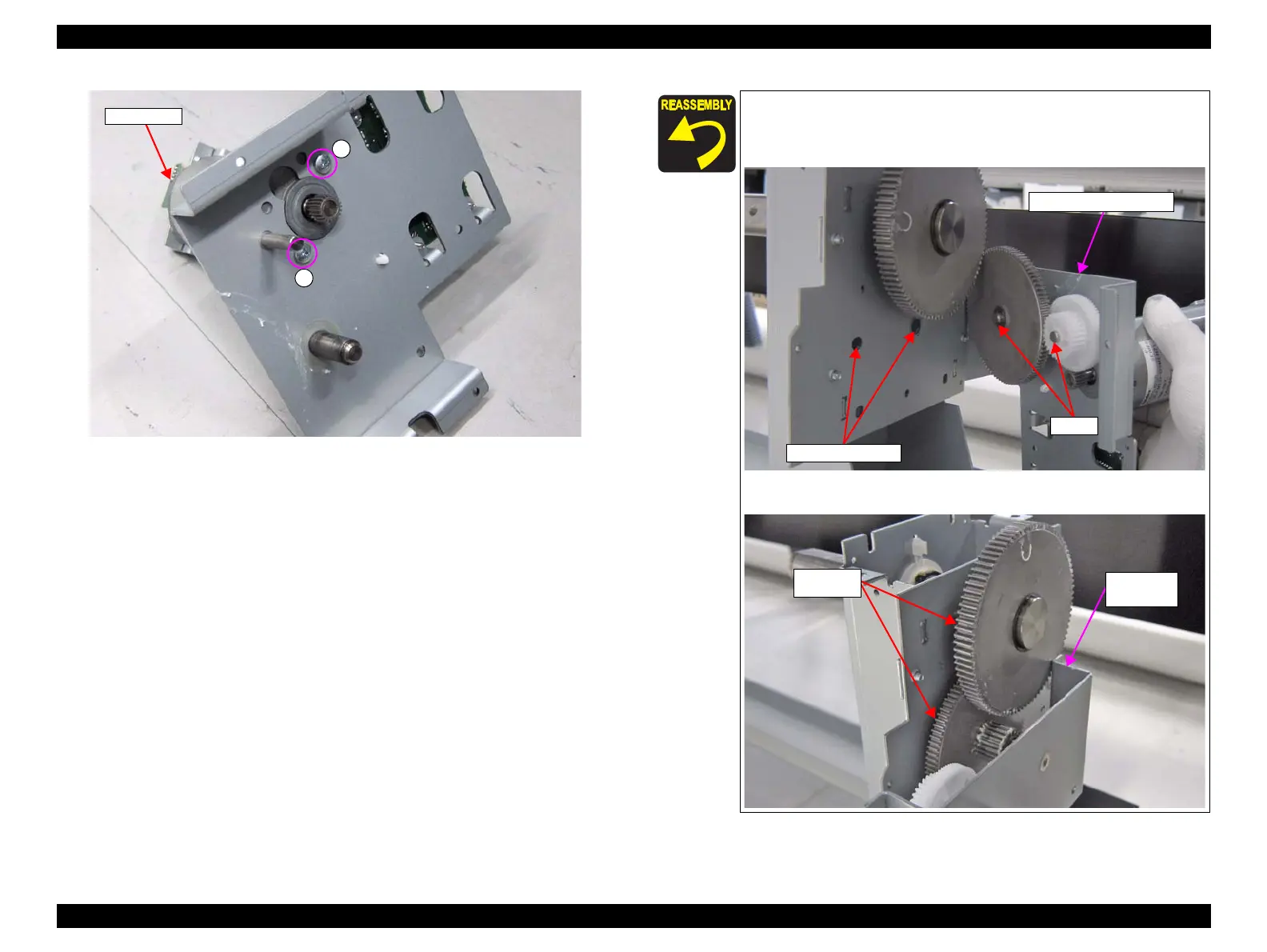

Figure 3-209. Removing the Reel Motor
B
B
Reel Motor
When installing the Right Reel Side Frame, confirm the following.
 Set the two shafts of the Right Reel Side Frame into the two
positioning holes on the frame.
 Install the two Compound Gears as shown in the figure below.
Right Reel Side Frame
Shafts
Positioning holes
Right Reel
Side Frame
Compound
Gear
