DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 256
SE Group Confidential (Related Staff Only)
3.4.10.4 Drying Fan Power Supply Board
1. Remove the Drying Fan Unit. (p252)
2. Remove the Drying Fan Cover. (p254)
3. Disconnect the relay connector.
4. Disconnect the cable from the connector (CN2) on the Power Supply Board.
5. Remove the four screws, and remove the Power Supply Board.
A) Silver M3x8 S-tite screw: 4 pcs

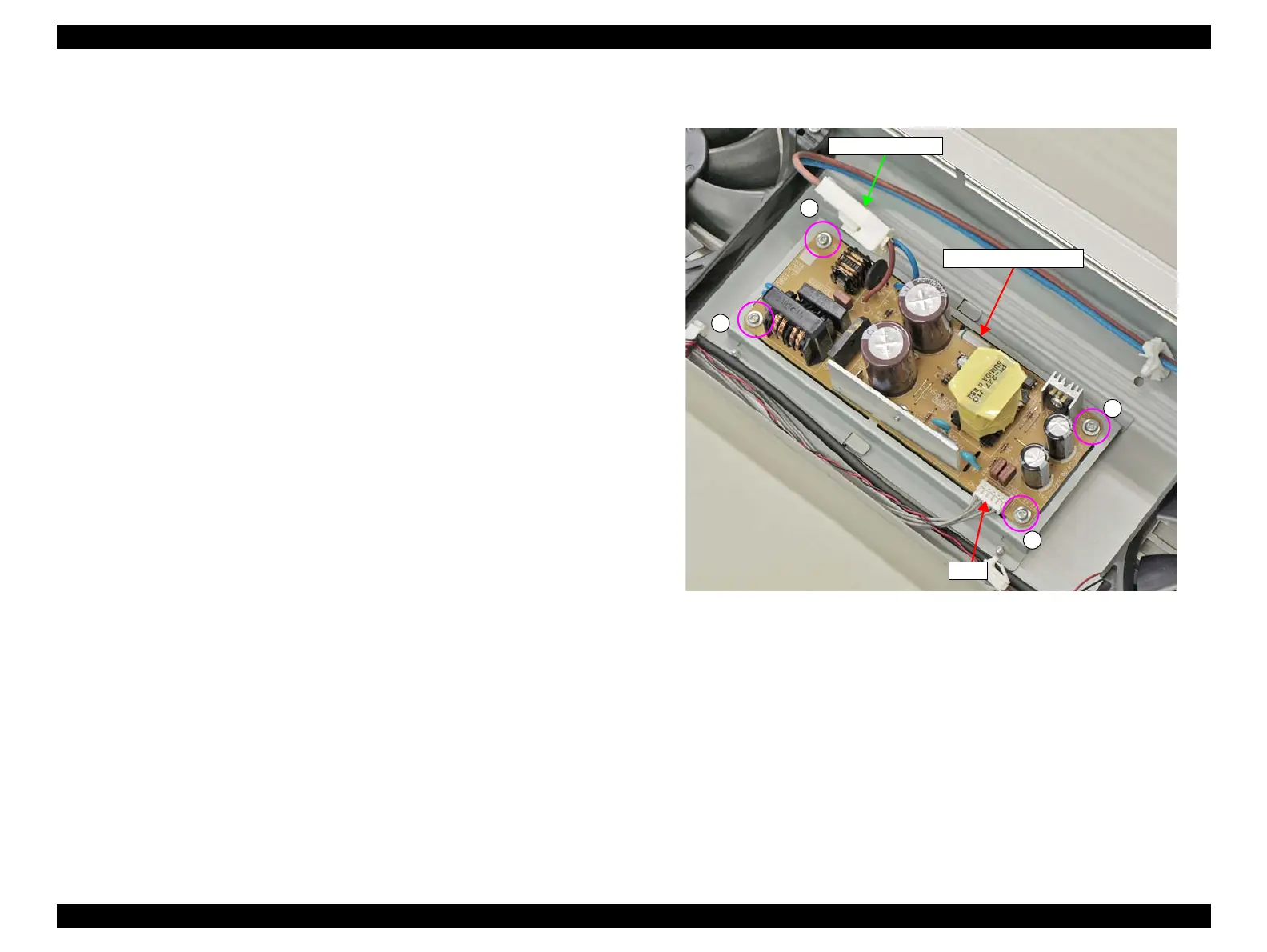

Figure 3-214. Removing the Power Supply Board
A
A
A
A
Power Supply Board
Relay Connector
CN2
