MAINTENANCE Cleaning 386
SE Group Confidential (Related Staff Only)
PW SENSOR
1. Move the Print Head to the cleaning position.
Carry out “Head Maintenance - Head Movement” from “Maintenance” menu.
2. Clean the sensing portion of the PW Sensor using a cotton swab.

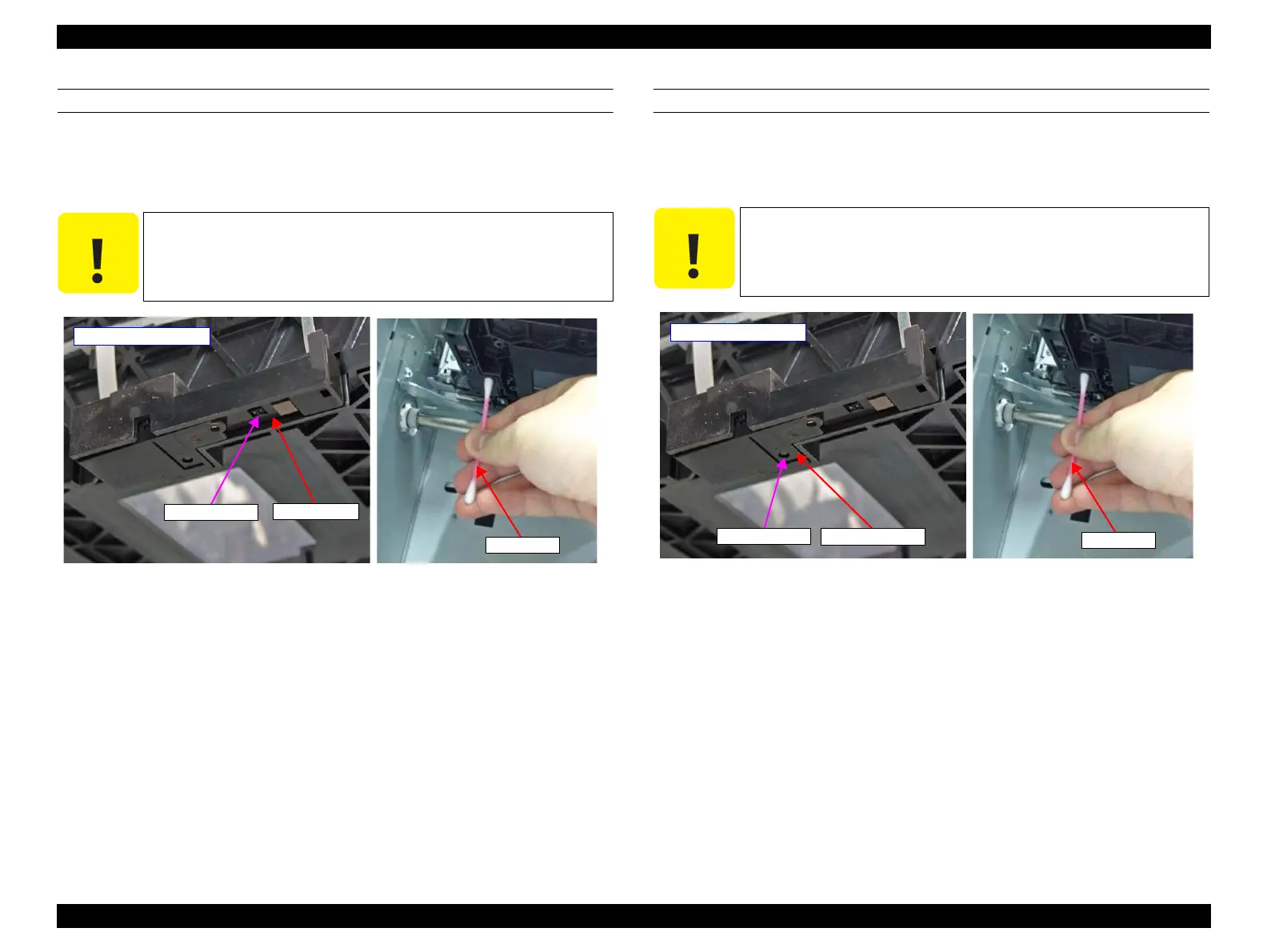

Figure 5-23. Cleaning the PW Sensor
INK MARK SENSOR
1. Move the Print Head to the cleaning position.
Carry out “Head Maintenance - Head Movement” from “Maintenance” menu.
2. Clean the sensing portion of the Ink Mark Sensor using a cotton swab.
Figure 5-24. Cleaning the Ink Mark Sensor
C A U T I O N
Do not use alcohol or solvent.
Sensing Portion
Bottom of the CR Unit
PW Sensor
Cotton swab
C A U T I O N
Do not use alcohol or solvent.
Ink Mark Sensor
Sensing Portion
Bottom of the CR Unit
Cotton swab
