EPSON Stylus CX3100/3200 Revision A
Disassembly and Assembly Disassembly of Printer 45

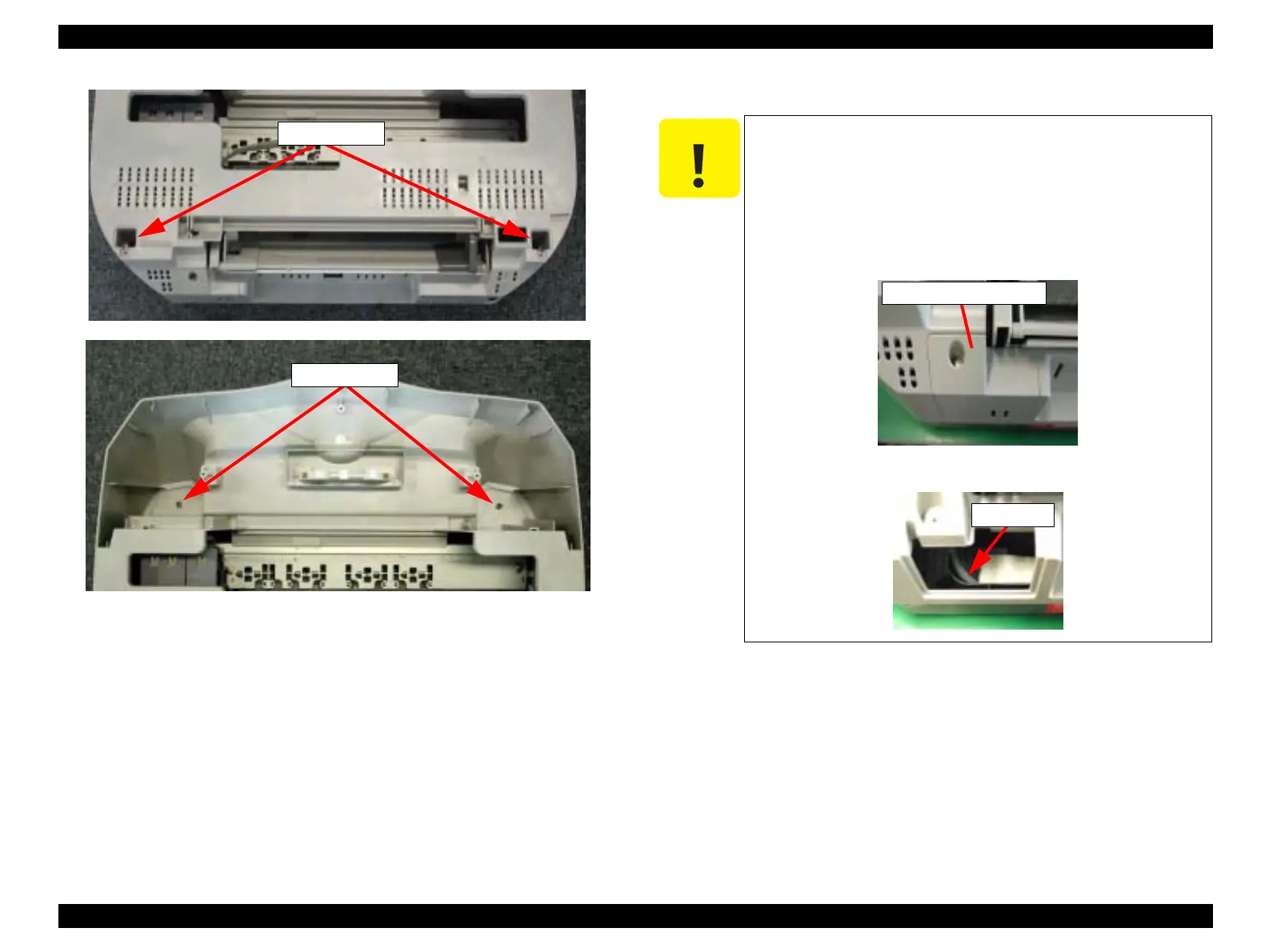

Figure 4-19. Screws securing the Middle Housing
NOTE: Screw tightening torque: 0.5-0.7 Nm
5. Move the left guide edge of the ASF to the left end.
6. Shift the Middle Housing rearward slightly and lift it for removal.
CBP 3x10
CBP 3x10
C A U T I O N
After installing the Middle Housing, remove the Tube Cover once
and make certain that the tube is inserted into the Porous Pad
properly.

Remove the one screw (CBP 3x10) securing the Tube Cover
and remove the Tube Cover.
NOTE: Screw tightening torque: 0.5-0.7 Nm

Check that the tube is inserted into the Porous Pad properly.
Tube Cover
Tube
