EPSON Stylus CX3100/3200 Revision A
Appendix Connectors 81
7.1 Connectors
7.1.1 Connector Assignments

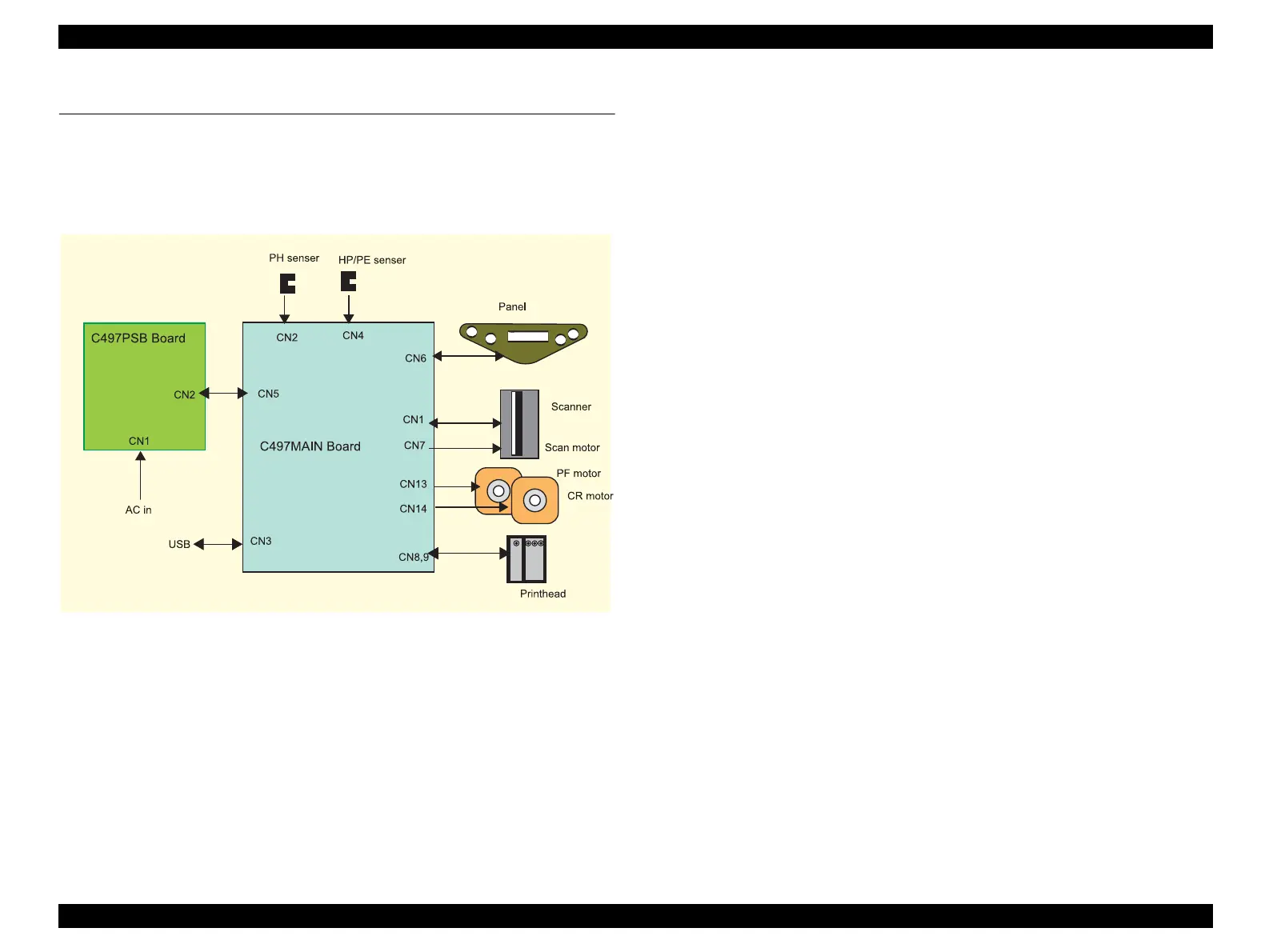

Figure below shows the connector assignments on the circuit boards of Stylus CX3100/
3200.
Figure 7-1. Connector Assignments of Circuit Boards
