EPSON Stylus CX3100/3200 Revision A
Adjustment Adjustment by Adjustment Program 64
1. Click the item for which the adjustment is to be made and click the [OK] button.
When you select “Printing the Bi-D adjustment pattern”, you can print the pattern.
When “Checking present Bi-D parameter” is selected, the set value is indicated at
the lower center of the screen. When you select “Input Bi-Directional adjustment
value”, you can input the adjusted values.
2. From the printed Bi-D adjustment pattern, judge which vertical line corresponding
to which compensation value for each mode is straight.

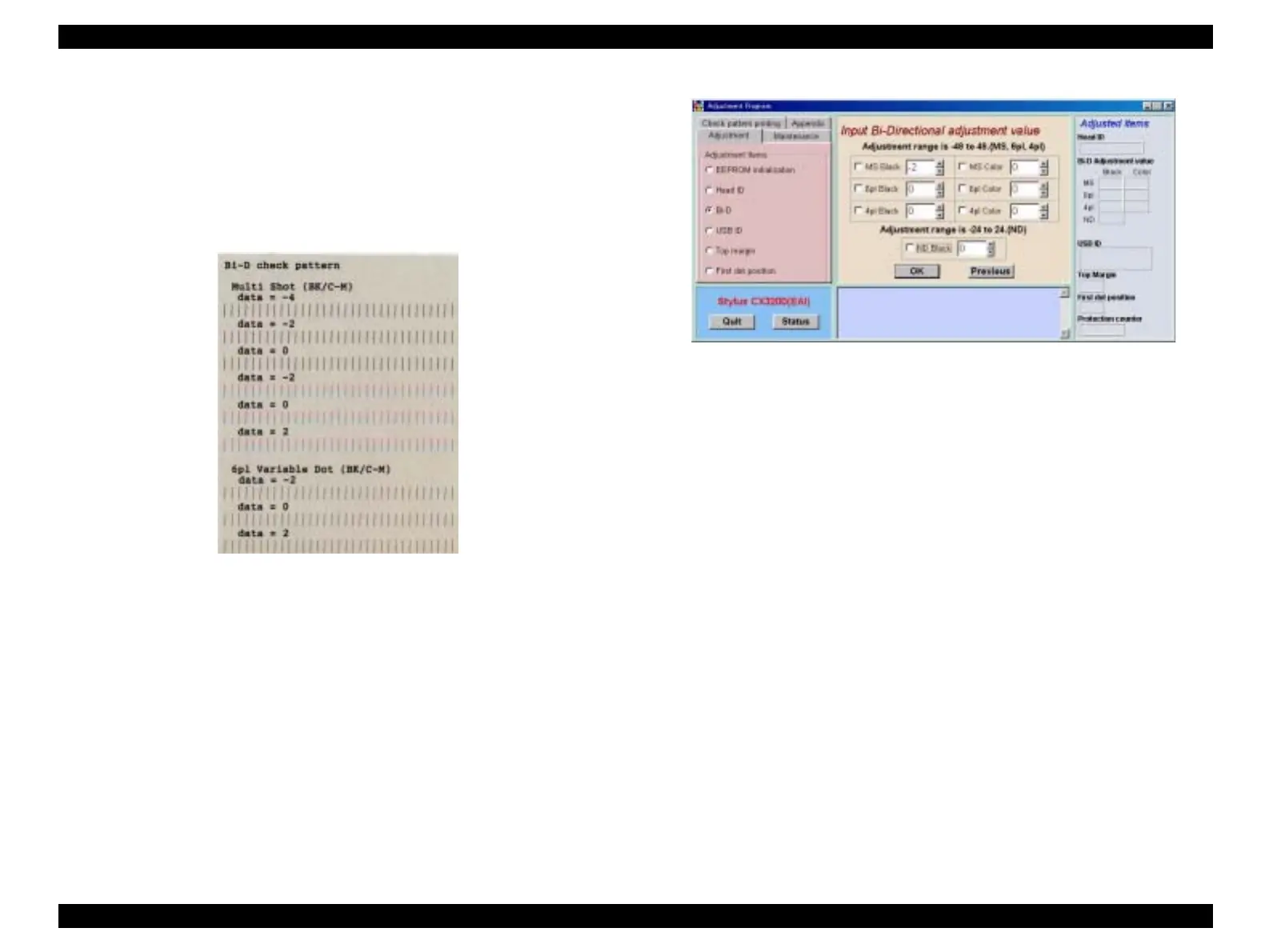

Figure 5-7. Bi-D Adjustment Pattern
3. If adjustment is necessary, select [Bi-D Adjustment] and input the compensation
values at the relevant points in each mode. Adjusted values can be input for each
mode.
Figure 5-8. Input Bi-Directional Adjustment Value
4. Check the item for which the adjustment is to be made. The input value is
indicated in [Adjusted items] at the right side of the screen.
5. By repeating steps 1 to 4 above, make adjustment to minimize the deviation of
bidirectional printing timing.
