Epson SureColor F2100 Series User Manual

76

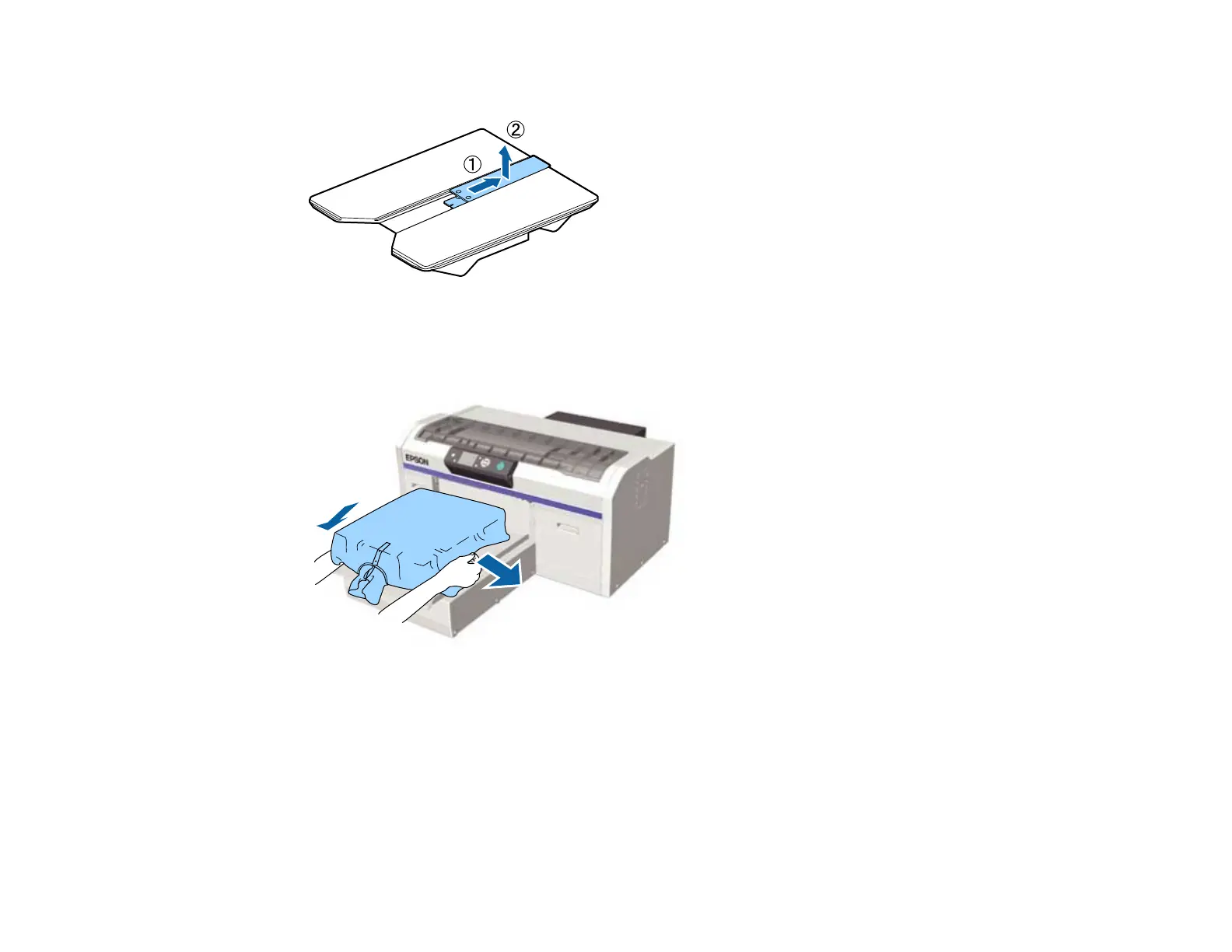

5. Slide the middle part of the platen back, then lift it up to remove it.
Note: Keep the removed screw and part in a safe place.
6. Gently pull the shirt over the edges of the platen to flatten it.
Note: Do not pull the shirt too much; otherwise, the print quality may decline.
Note: Do not use the grip pad tool to smooth the surface when you are using the platen frame.

Epson SureColor F2100 Series Specifications

General

Maximum Print Resolution	1440 x 1440 dpi
Operating System Compatibility	Windows, macOS
Ink Colors	Cyan, Magenta, Yellow, Black, White
Print Technology	PrecisionCore TFP Print Head
Connectivity	USB 2.0, Ethernet
Printer Type	Direct-to-Garment Printer
Ink Configuration	5-color (CMYK + White)
Printable Area	16" x 20"
Media Width	Up to 16 inches
Dimensions (W x D x H)	39" x 49" x 19"
