Cleaning the Print Head Cap Area

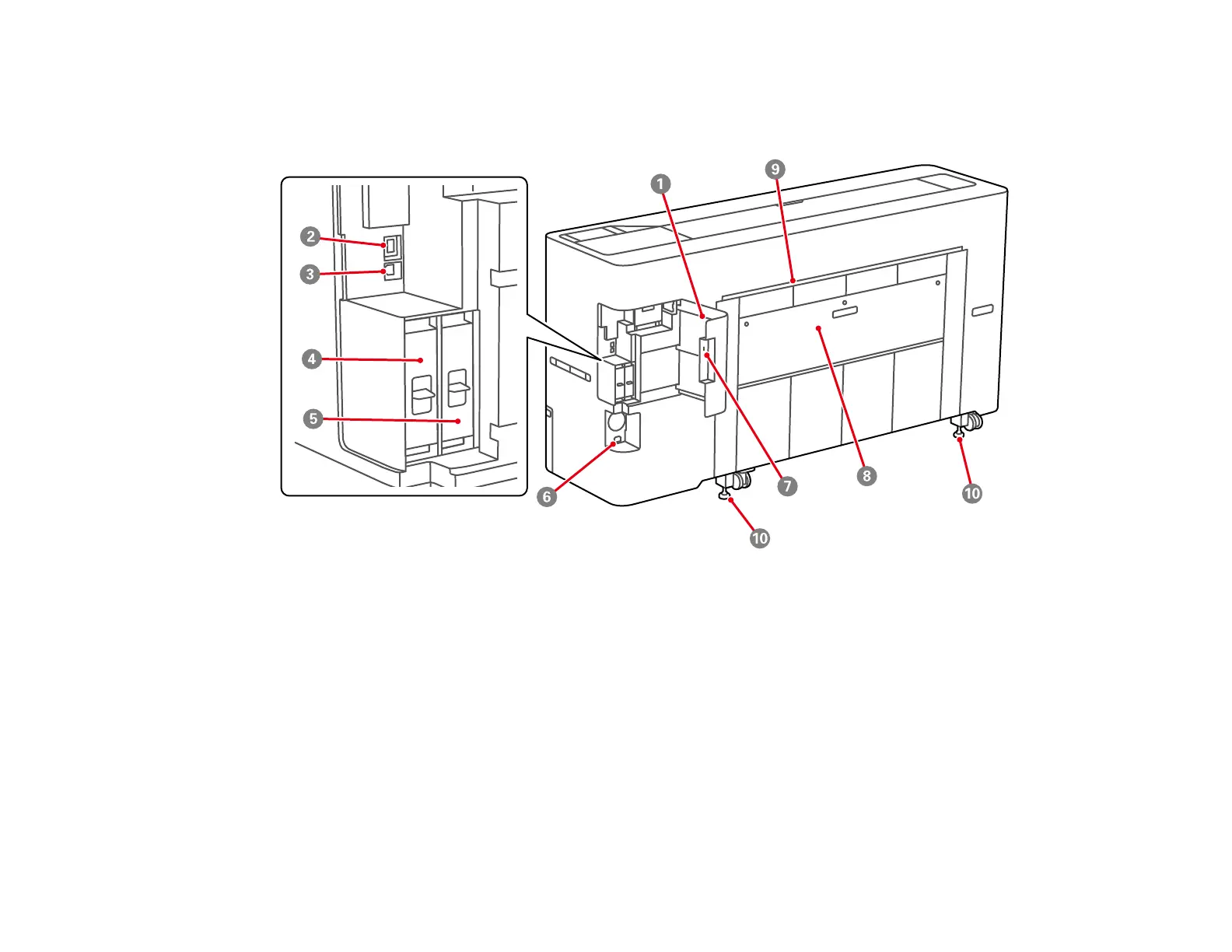

Product Parts - Back

1 Port cover

2 Ethernet LAN port

3 USB port (for computer connection)

4 Optional SSD unit slot

5 Adobe Embedded Print Engine (not available for SureColor P6570DE/P6570E/T3770DE/T3770E)

6 DC inlet (connect supplied power cable)

7 Security lock slot

8 Rear cover

9 Rear paper feed slot (for feeding cut sheet/poster board from the rear)
