Note: Close the paper output flap if it is open.

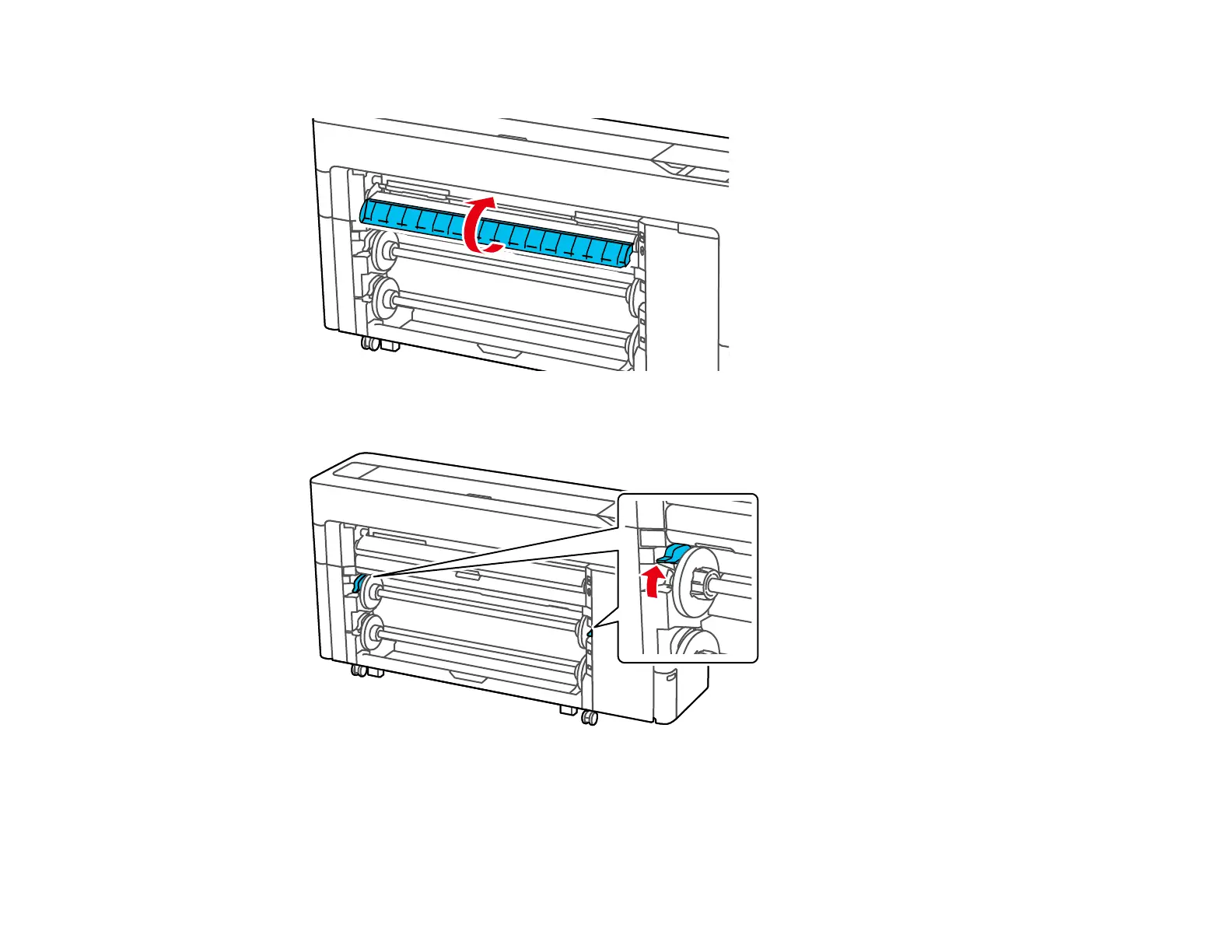

5. Pull up the lock lever on the roll paper holder.

Note: Make sure you pull the lock lever all the way up to unlock it completely.
