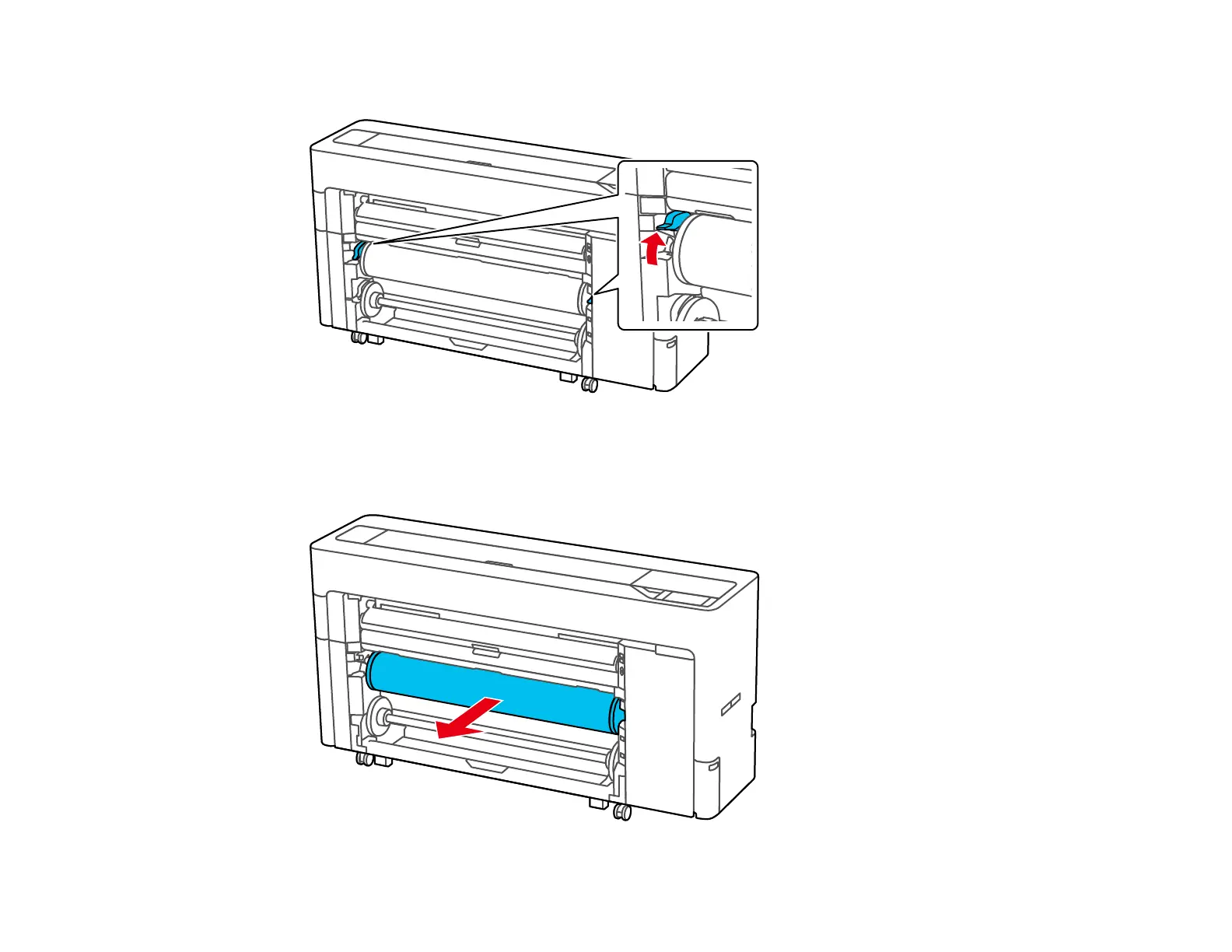

3. Pull up the lock lever on the roll paper holder to release it.

Note: Make sure you pull the lock lever all the way up to unlock it completely.

4. Lift the roll paper out of the printer to remove it.
