Epson TM-T70II Technical Reference Guide

42
Installing the Printer
You can install this printer only horizontally.
Fix the printer so that it does not move around when you open the roll paper cover and cut roll
paper. A tape for fixing the printer is available as an option. (See "Affixing Position of DF-10" on
page 43.)

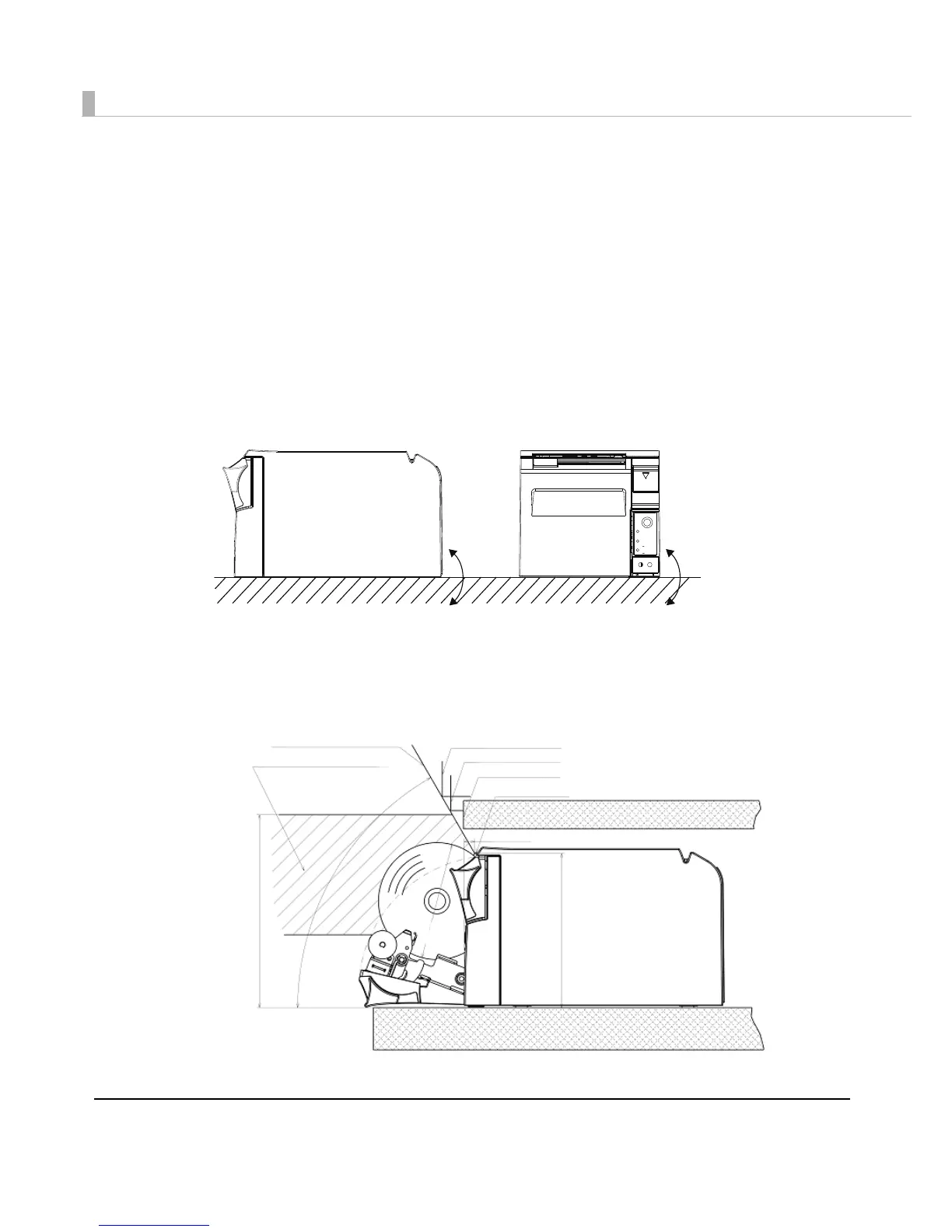

As shown in the figure below, install
the printer with a maximum tilt of 3°.
Installing the printer with a tilt of more than 3° may cause the following problems.
• Roll paper near end cannot be detected.
• The roll paper cover will not close after installing roll paper.
• Roll paper cannot be taken out.
If the printer installation does not fit with
in the specifications shown in the figure below, the
following problems may occur.
•Cannot set the roll paper in the printer
•Cannot cut the paper with the manual cutter
Within
± 3°
Within
± 3°
Horizontal
Range that manual cutting is possible
Area required for loading the roll paper
(diameter: 83 mm)
60° or more
137 mm
109.5 mm
7.5 mm
Shelf height: 150 mm
Shelf height: 140 mm
Shelf height: 127 mm
Manual cutter

Epson TM-T70II Specifications

General

Type	POS printer
Print technology	Thermal
Maximum resolution	180 x 180 DPI
Product color	Gray
Maximum roll diameter	83 mm
Maximum printing width	79.5 mm
USB port	Yes
USB connector	USB Type-B
Standard interfaces	Serial, USB 2.0
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Safety	EN, TÜV, GOST-R
Certification	CE, GOST-R, EN55022
Country of origin	China
Autocutter durability	1.7 million cuts
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	360000 h
AC input voltage	24 V
Power consumption	2000 mA
Power source type	AC
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN	No
Mean cycles between failures (MCBF)	65000000
Pallet width	800 mm
Pallet height	1816 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	24 pc(s)
Package depth	253 mm
Package width	192 mm
Package height	240 mm
Package weight	2600 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	194 mm
Width	125 mm
Height	114 mm
