Epson TM-T70II Technical Reference Guide

68
Connecting the Cash Drawer
Use the cash drawer handled by EPSON or your dealer.

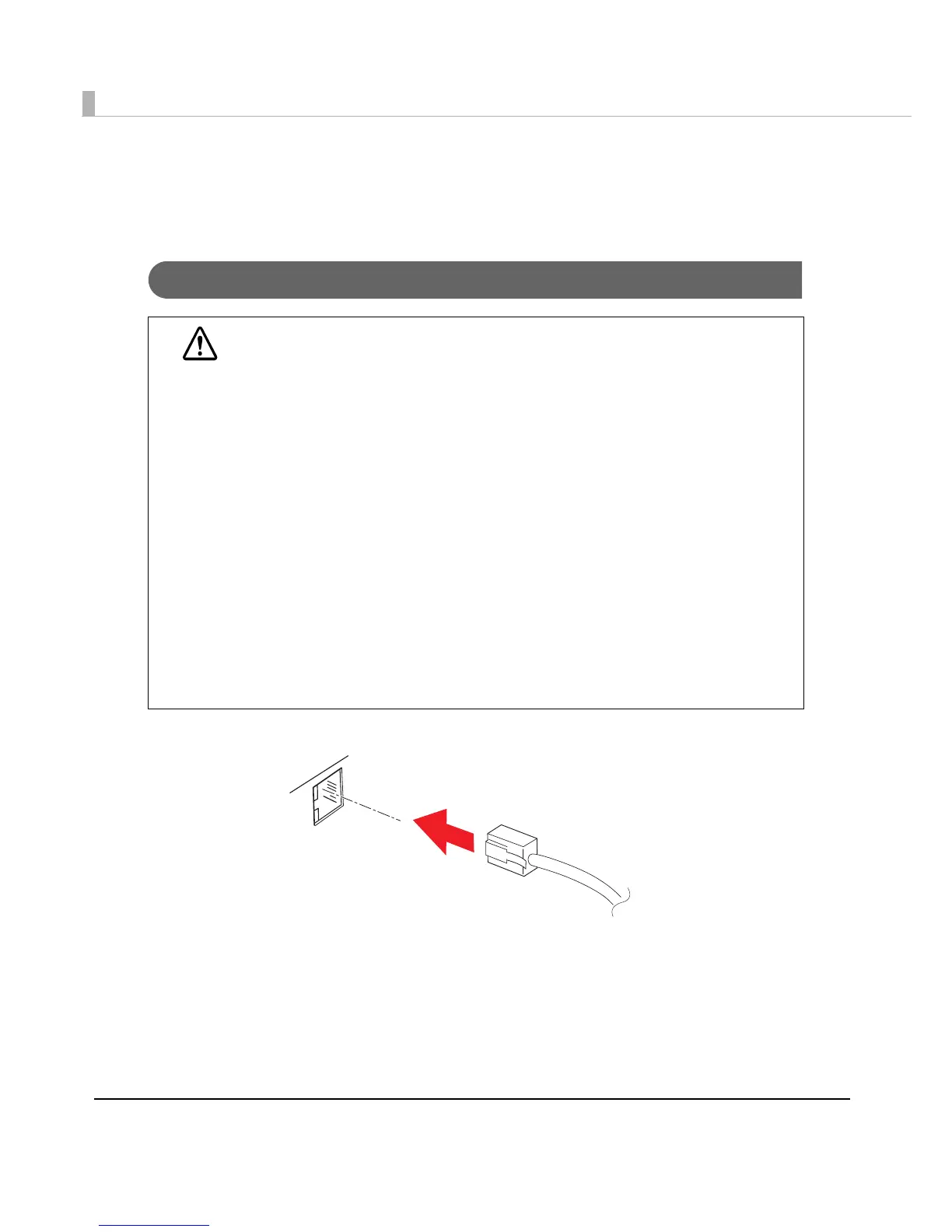

Connecting the Drawer Kick-out Cable
Connect the connector of the drawer kick-out cable to the printer.
WARNING
 Specifications of drawers differ depending on makers or models. When you use a
drawer other than specified, make sure its specification meets the following con-
ditions.
Otherwise, devices may be damaged.
 The load, such as a drawer kick-out solenoid, must be connected between pins 4 and
2 or pins 4 and 5 of the drawer kick-out connector.
 When the drawer open/close signal is used, a switch must be provided between
drawer kick-out connector pins 3 and 6.
 The resistance of the load, such as a drawer kick-out solenoid, must be 24
 or more
or the input current must be 1 A or less.
 Be sure to use the 24 V power output on drawer-kick out connector pin 4 for driving
the equipment.
 Use a shield cable for the drawer connector cable.
 Two driver transistors cannot be energized simultaneously.
 Leave intervals longer than 4 times the drawer driving pulse when sending it
continuously.
 Be sure to use the printer power supply (connector pin 4) for the drawer power
source.
 Do not insert a telephone line into the drawer kick-out connector.
Doing so may damage the telephone line or printer.
DK

Epson TM-T70II Specifications

General

Type	POS printer
Print technology	Thermal
Maximum resolution	180 x 180 DPI
Product color	Gray
Maximum roll diameter	83 mm
Maximum printing width	79.5 mm
USB port	Yes
USB connector	USB Type-B
Standard interfaces	Serial, USB 2.0
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Safety	EN, TÜV, GOST-R
Certification	CE, GOST-R, EN55022
Country of origin	China
Autocutter durability	1.7 million cuts
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	360000 h
AC input voltage	24 V
Power consumption	2000 mA
Power source type	AC
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN	No
Mean cycles between failures (MCBF)	65000000
Pallet width	800 mm
Pallet height	1816 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	24 pc(s)
Package depth	253 mm
Package width	192 mm
Package height	240 mm
Package weight	2600 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	194 mm
Width	125 mm
Height	114 mm
