Epson TM-T70II Technical Reference Guide

44
Connecting the Printer to the Host Computer
For Serial Interface
Serial interface connection diagram

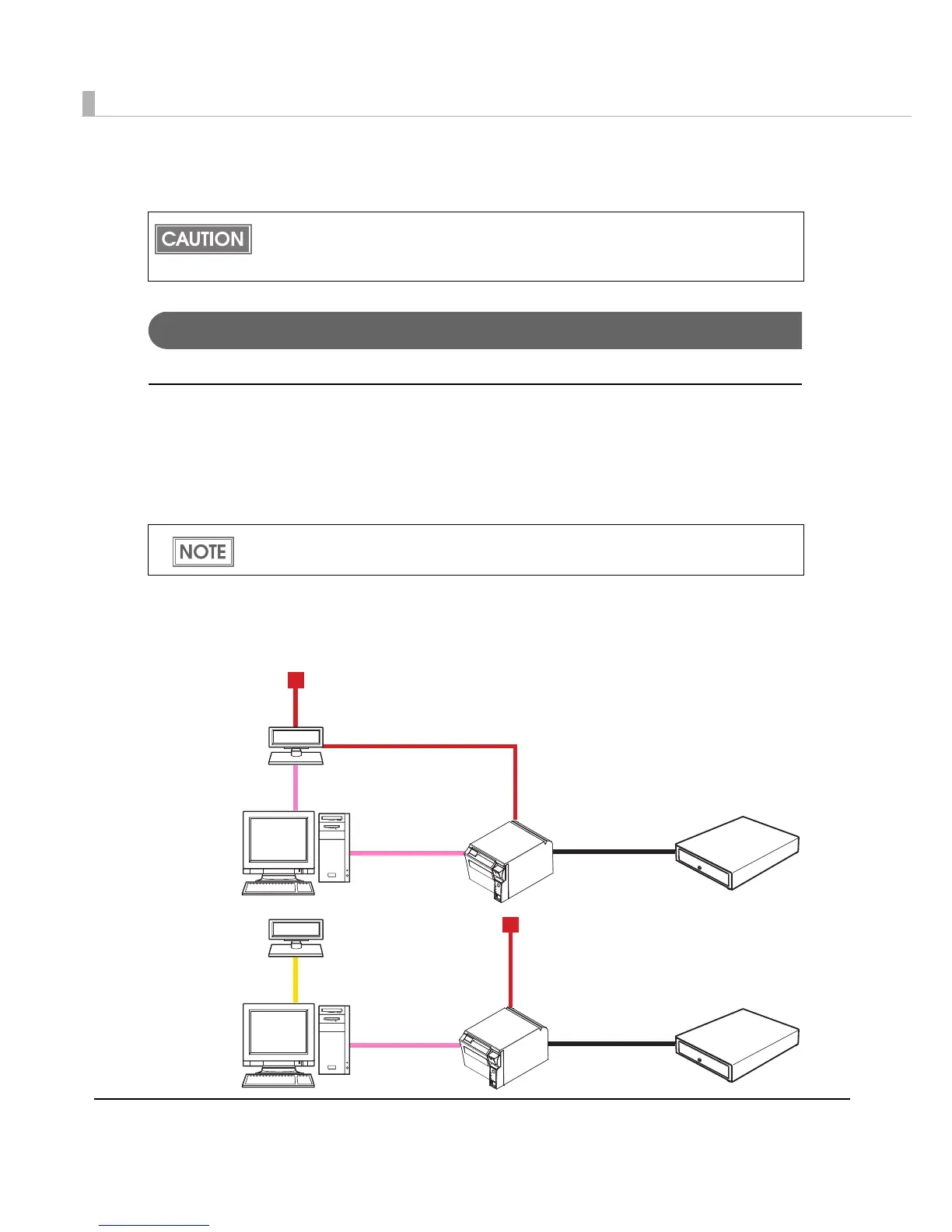

When this printer is connected to a host computer by the serial interface, two connection forms
are possible:
•Stand alone
•Y connection
Stand alone
This printer is connected to the host computer via the serial port. When a customer display
(DM-D) is to be connected, connect it to the host computer via the serial port or USB port.
 Be sure to install the printer driver before connecting the printer to the host computer.
 The printer uses a modular connector specifically designed for the cash drawer. Do not
connect the connector to an ordinary telephone line.
 The modular cable is mounted on the cash drawer.
 Use the extension cable for power supply bundled with the customer display.
TM-T70II
Serial cable
DM-D
(Serial I/F model)
Extension cable for
power supply
Serial cable
Modular cable
Cash drawer
AC adapter + AC cable
DM-D
(USB I/F model)
Serial cable
Modular cable
Cash drawer
AC adapter + AC cable
TM-T70II
USB cable

Epson TM-T70II Specifications

General

Type	POS printer
Print technology	Thermal
Maximum resolution	180 x 180 DPI
Product color	Gray
Maximum roll diameter	83 mm
Maximum printing width	79.5 mm
USB port	Yes
USB connector	USB Type-B
Standard interfaces	Serial, USB 2.0
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Safety	EN, TÜV, GOST-R
Certification	CE, GOST-R, EN55022
Country of origin	China
Autocutter durability	1.7 million cuts
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	360000 h
AC input voltage	24 V
Power consumption	2000 mA
Power source type	AC
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN	No
Mean cycles between failures (MCBF)	65000000
Pallet width	800 mm
Pallet height	1816 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	24 pc(s)
Package depth	253 mm
Package width	192 mm
Package height	240 mm
Package weight	2600 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	194 mm
Width	125 mm
Height	114 mm
