Epson TM-T70II Technical Reference Guide

Chapter 2 Setup
53
2

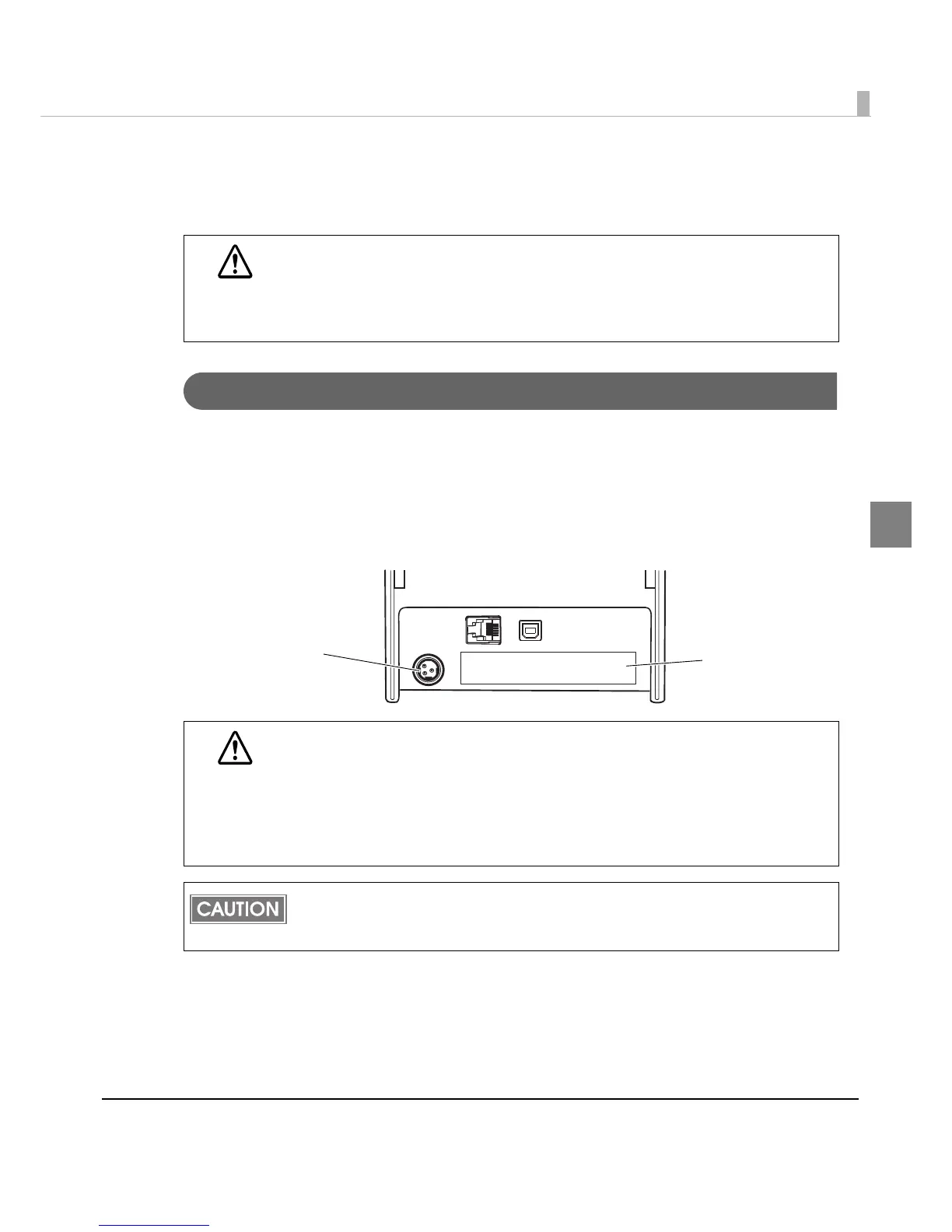

Connecting the AC Adapter (PS-180)
Use the PS-180 or an equivalent product as the AC adapter.
Connecting the AC Adapter
1
Make sure the printer’s power supply is turned off and the AC adapter’s
power cable has been removed from the wall socket.
2
Insert the connector of the power supply cable onto the power supply
connector (stamped 24V).
WARNING
 Always use the EPSON PS-180 or an equivalent product as the AC adapter.
Using a nonstandard power supply can result in electric shock and fire.
 Should a fault ever occur in the EPSON PS-180 or equivalent product, immediately
turn off the power to the printer and remove the power supply cable from the wall
socket.
WARNING
 Be sure to remove the AC adapter’s cable from the wall socket whenever connect-
ing or disconnecting the AC adapter.
Failure to do so may result in damage to the AC adapter or the printer.
 Make sure the wall socket power supply satisfies the rated voltage requirements
of the AC adapter. Never insert the power supply cable plug into a socket that
does not meet the rated voltage requirements of the AC adapter.
Doing so may result in damage to both the power supply and the printer.
Before removing the DC cable connector from the PS-180, make sure the power supply
cable has been removed from the AC adapter, then grasp the arrow-marked section of the
connector and pull straight out.
Power supply connector
Interface board

Epson TM-T70II Specifications

General

Type	POS printer
Print technology	Thermal
Maximum resolution	180 x 180 DPI
Product color	Gray
Maximum roll diameter	83 mm
Maximum printing width	79.5 mm
USB port	Yes
USB connector	USB Type-B
Standard interfaces	Serial, USB 2.0
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Safety	EN, TÜV, GOST-R
Certification	CE, GOST-R, EN55022
Country of origin	China
Autocutter durability	1.7 million cuts
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	360000 h
AC input voltage	24 V
Power consumption	2000 mA
Power source type	AC
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN	No
Mean cycles between failures (MCBF)	65000000
Pallet width	800 mm
Pallet height	1816 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	24 pc(s)
Package depth	253 mm
Package width	192 mm
Package height	240 mm
Package weight	2600 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	194 mm
Width	125 mm
Height	114 mm
