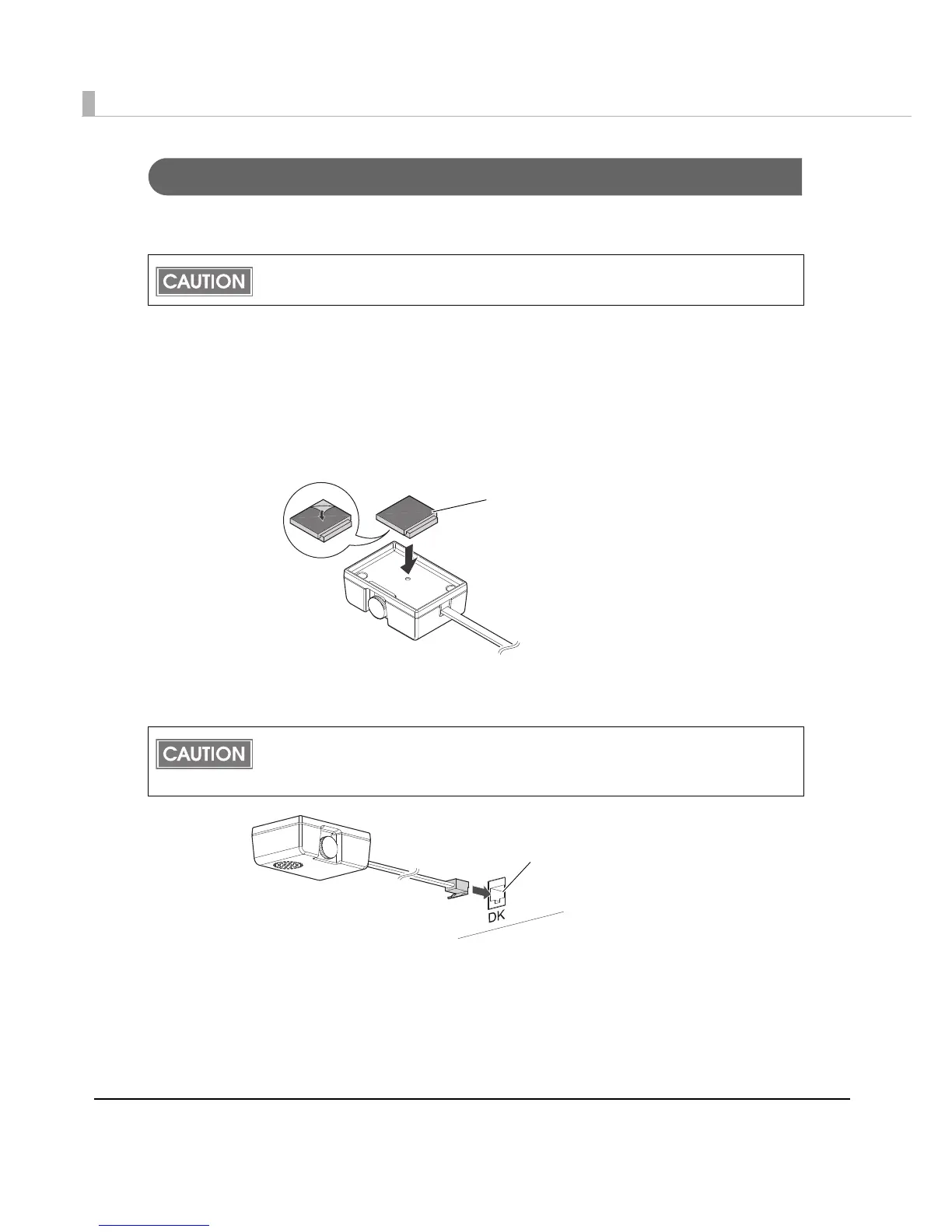

Epson TM-T70II Technical Reference Guide

66
Installation Procedures
1
Turn off the printer.
2
Clean and dry the printer case where the optional external buzzer will
be installed.
3
With 2 pieces of the affixing tape combined, peel off the sticker on one
side, and paste it around the center of the attaching surface of the
optional external buzzer.
4
Connect the cable of the optional external buzzer to the drawer kick-
out connector on the printer.
Connect and disconnect the optional external buzzer while the printer is turned off. If you
connect it while the printer is turned on, the buzzer does not function correctly.
 Be sure to connect to the drawer kick-out connector on the applicable printer.
 Do not connect both the optional external buzzer and the drawer by using a splitter or
similar device.
Affixing tape
Drawer kick-out
connector

Epson TM-T70II Specifications

General

Type	POS printer
Print technology	Thermal
Maximum resolution	180 x 180 DPI
Product color	Gray
Maximum roll diameter	83 mm
Maximum printing width	79.5 mm
USB port	Yes
USB connector	USB Type-B
Standard interfaces	Serial, USB 2.0
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Safety	EN, TÜV, GOST-R
Certification	CE, GOST-R, EN55022
Country of origin	China
Autocutter durability	1.7 million cuts
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	360000 h
AC input voltage	24 V
Power consumption	2000 mA
Power source type	AC
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN	No
Mean cycles between failures (MCBF)	65000000
Pallet width	800 mm
Pallet height	1816 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	24 pc(s)
Package depth	253 mm
Package width	192 mm
Package height	240 mm
Package weight	2600 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	194 mm
Width	125 mm
Height	114 mm
