Epson TM-T70II Technical Reference Guide

64
Connecting the Optional External Buzzer
When using the optional external buzzer (OT-BZ20), install the optional external buzzer.
If your printer is not equipped with a buzzer, you can use the optional external buzzer (OT-
BZ20) by connecting it to the drawer.
Unpacking

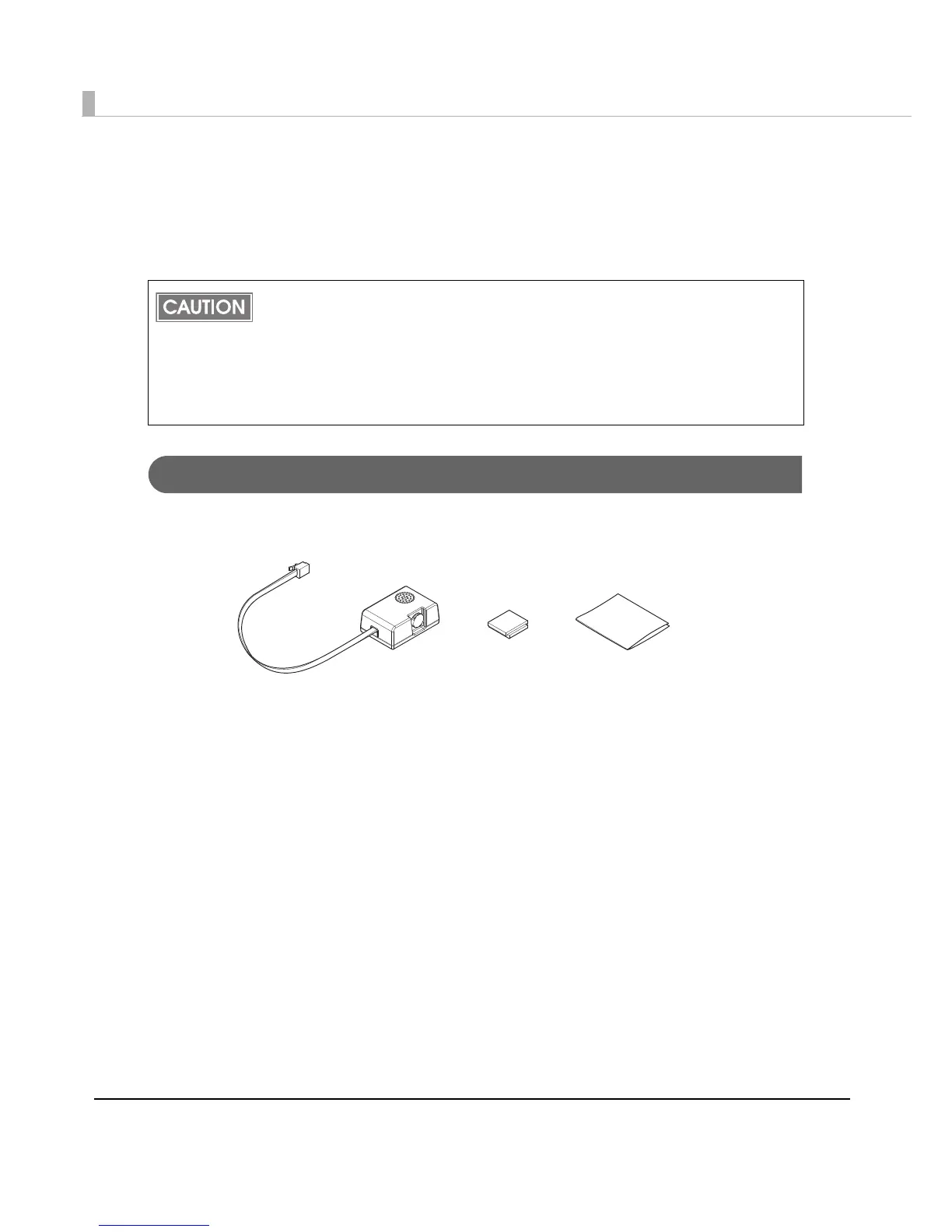

Open the package and confirm that it contains all of the parts listed in the illustration. If any
parts are missing or damaged, please contact your dealer for assistance.
 The optional external buzzer and the drawer cannot be used together at the same time.
 If you configure the memory switch setting to enable the optional external buzzer, the
drawer cannot be opened because the pulse is not sent to the drawer kick connector pin.
 Make sure to use the accessory affixing tape to attach the optional external buzzer to the
printer.
 Be careful not to spill water, oil, solvent, or any other liquid over the printer. Doing so may
result in malfunction of the printer.
Optional external buzzer
Affixing tape
(1 pair, 2 pieces)
User’s Manual

Epson TM-T70II Specifications

General

Type	POS printer
Print technology	Thermal
Maximum resolution	180 x 180 DPI
Product color	Gray
Maximum roll diameter	83 mm
Maximum printing width	79.5 mm
USB port	Yes
USB connector	USB Type-B
Standard interfaces	Serial, USB 2.0
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Safety	EN, TÜV, GOST-R
Certification	CE, GOST-R, EN55022
Country of origin	China
Autocutter durability	1.7 million cuts
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	360000 h
AC input voltage	24 V
Power consumption	2000 mA
Power source type	AC
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN	No
Mean cycles between failures (MCBF)	65000000
Pallet width	800 mm
Pallet height	1816 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	24 pc(s)
Package depth	253 mm
Package width	192 mm
Package height	240 mm
Package weight	2600 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	194 mm
Width	125 mm
Height	114 mm
