Epson TM-T70II Technical Reference Guide

Chapter 2 Setup
69
2

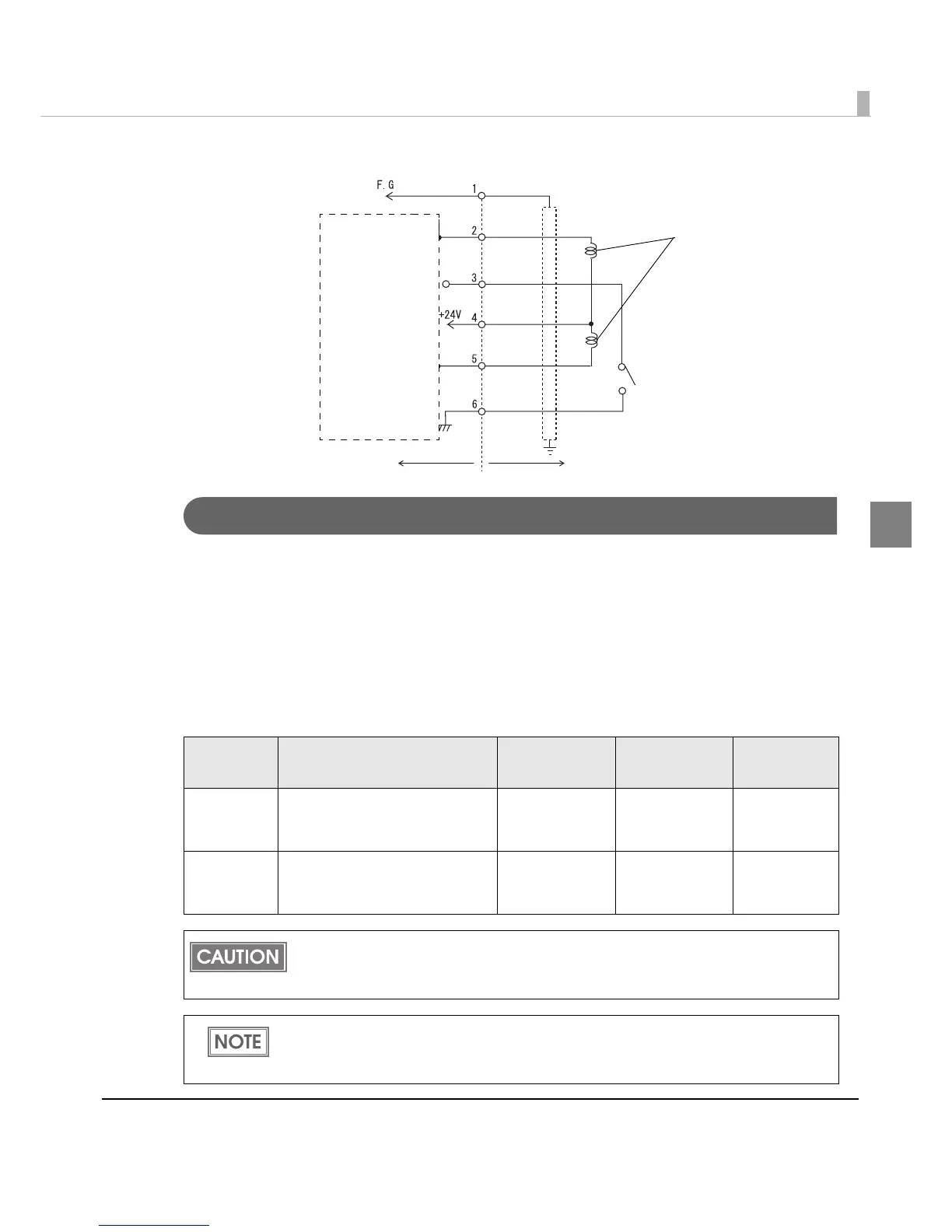

Drawer connection diagram
Setting the Internal Buzzer (for Models with an Internal Buzzer)
Models with the buzzer function can beep the buzzer when the drawer is opened, by setting the
properties of the driver or outputting a pulse signal by a command. The internal buzzer cannot
change the buzzer volume and sound pattern but can change the buzzer frequency. When using
the internal b
uzzer, you need to enable the internal buzzer with the memory switch.
The buzzer setting is performed by setting the memory switches for the buzzer and specifying
connector pin numbers to which a command outputs a pulse signal, as shown in the table below.
For information about the memory switches, see "Setting the Memory Switches/Receipt
Enhancement" on page 54
Memory
switch
Specified connector pin ON OFF Initial setting
Buzzer
frequency
(Pulse 1)
Drawer kick out connector pin 2 Buzzer beeps.
Buzzer does not
beep.
OFF
Buzzer
frequency
(Pulse 2)
Drawer kick out connector pin 5 Buzzer beeps.
Buzzer does not
beep.
ON
Since the buzzer drive signal and the cash drawer drive signal are common in the printer,
do not use the same connector pin numbers to output the signal for the buzzer and the
cash drawer.
 For detailed information about ESC/POS commands, see the ESC/POS Command Ref-
erence.
 For detailed information about the driver control, see the manual for each driver.
With shielded
Drawer kick-out connector
Printer side
User side [Drawer kick-out side]
Drawer open/close switch
Drawer kick-out solenoid
Control device

Epson TM-T70II Specifications

General

Type	POS printer
Print technology	Thermal
Maximum resolution	180 x 180 DPI
Product color	Gray
Maximum roll diameter	83 mm
Maximum printing width	79.5 mm
USB port	Yes
USB connector	USB Type-B
Standard interfaces	Serial, USB 2.0
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Safety	EN, TÜV, GOST-R
Certification	CE, GOST-R, EN55022
Country of origin	China
Autocutter durability	1.7 million cuts
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	360000 h
AC input voltage	24 V
Power consumption	2000 mA
Power source type	AC
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN	No
Mean cycles between failures (MCBF)	65000000
Pallet width	800 mm
Pallet height	1816 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	24 pc(s)
Package depth	253 mm
Package width	192 mm
Package height	240 mm
Package weight	2600 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	194 mm
Width	125 mm
Height	114 mm
