Epson TM-T70II Technical Reference Guide

Chapter 2 Setup
47
2
For Parallel Interface

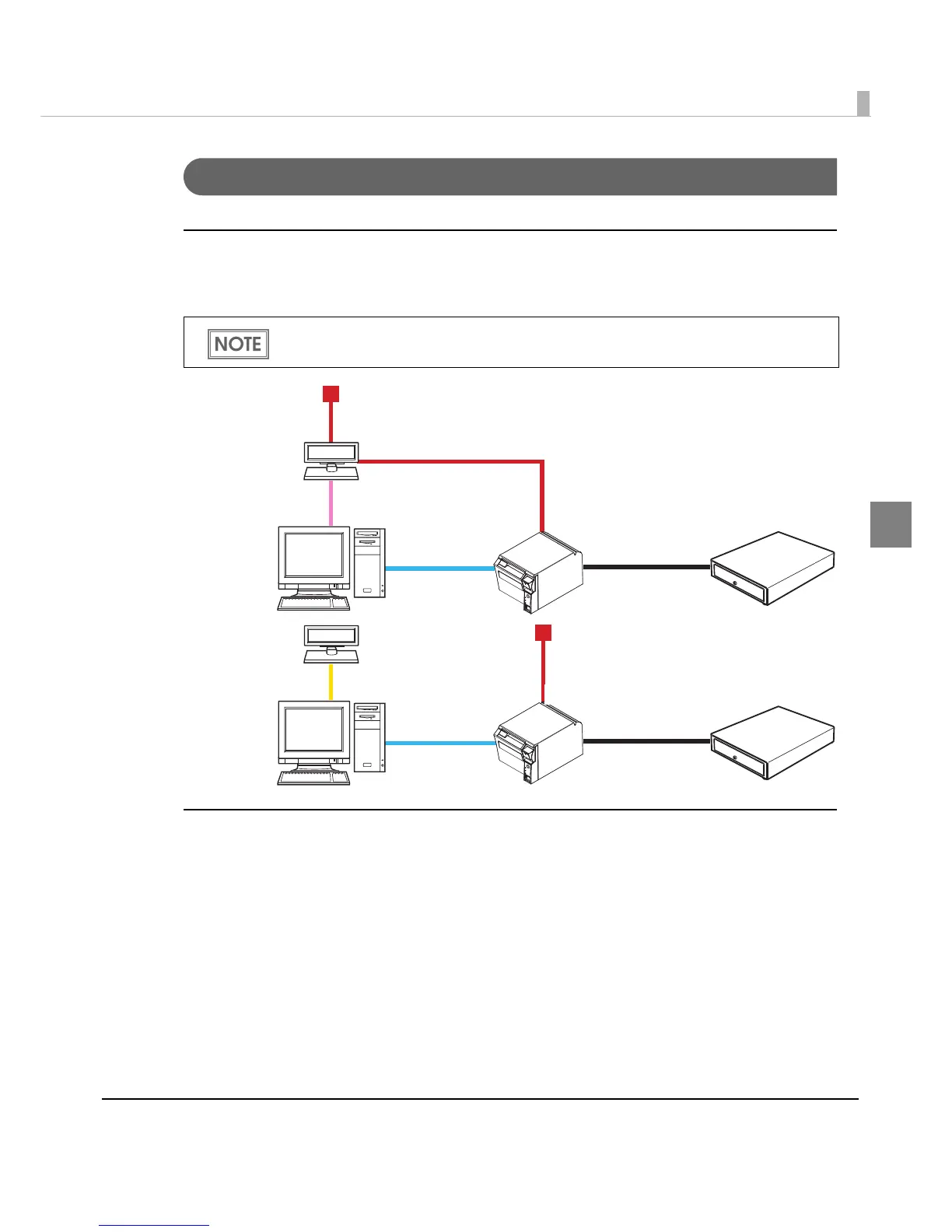

Parallel interface connection diagram
This printer is connected to the host computer via the parallel port. When a customer display
(DM-D) is to be connected, connect it to the host computer via the serial port or USB port.
Connecting the parallel interface cable
1
Insert the interface cable connector firmly into the interface connector
on the connector panel.
2
Press down the clips on either side of the connector to lock it in place.
3
When using interface cables equipped with a ground line, attach the
ground line to the screw hole marked “FG” on the printer.
4
Connect the other end of the interface cable to the host computer.
 The modular cable is mounted on the cash drawer.
 Use the extension cable for power supply bundled with the customer display.
DM-D
(Serial I/F model)
AC adapter + AC cable
Extension cable for
power supply
Parallel cable
Parallel cable
DM-D
(USB I/F model)
Modular cable
Modular cable
AC adapter + AC cable
Serial cable
USB cable
Cash drawer
Cash drawer
TM-T70II
TM-T70II

Epson TM-T70II Specifications

General

Type	POS printer
Print technology	Thermal
Maximum resolution	180 x 180 DPI
Product color	Gray
Maximum roll diameter	83 mm
Maximum printing width	79.5 mm
USB port	Yes
USB connector	USB Type-B
Standard interfaces	Serial, USB 2.0
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Safety	EN, TÜV, GOST-R
Certification	CE, GOST-R, EN55022
Country of origin	China
Autocutter durability	1.7 million cuts
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	360000 h
AC input voltage	24 V
Power consumption	2000 mA
Power source type	AC
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN	No
Mean cycles between failures (MCBF)	65000000
Pallet width	800 mm
Pallet height	1816 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	24 pc(s)
Package depth	253 mm
Package width	192 mm
Package height	240 mm
Package weight	2600 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	194 mm
Width	125 mm
Height	114 mm
