Epson WF-7820 Series User Manual

181

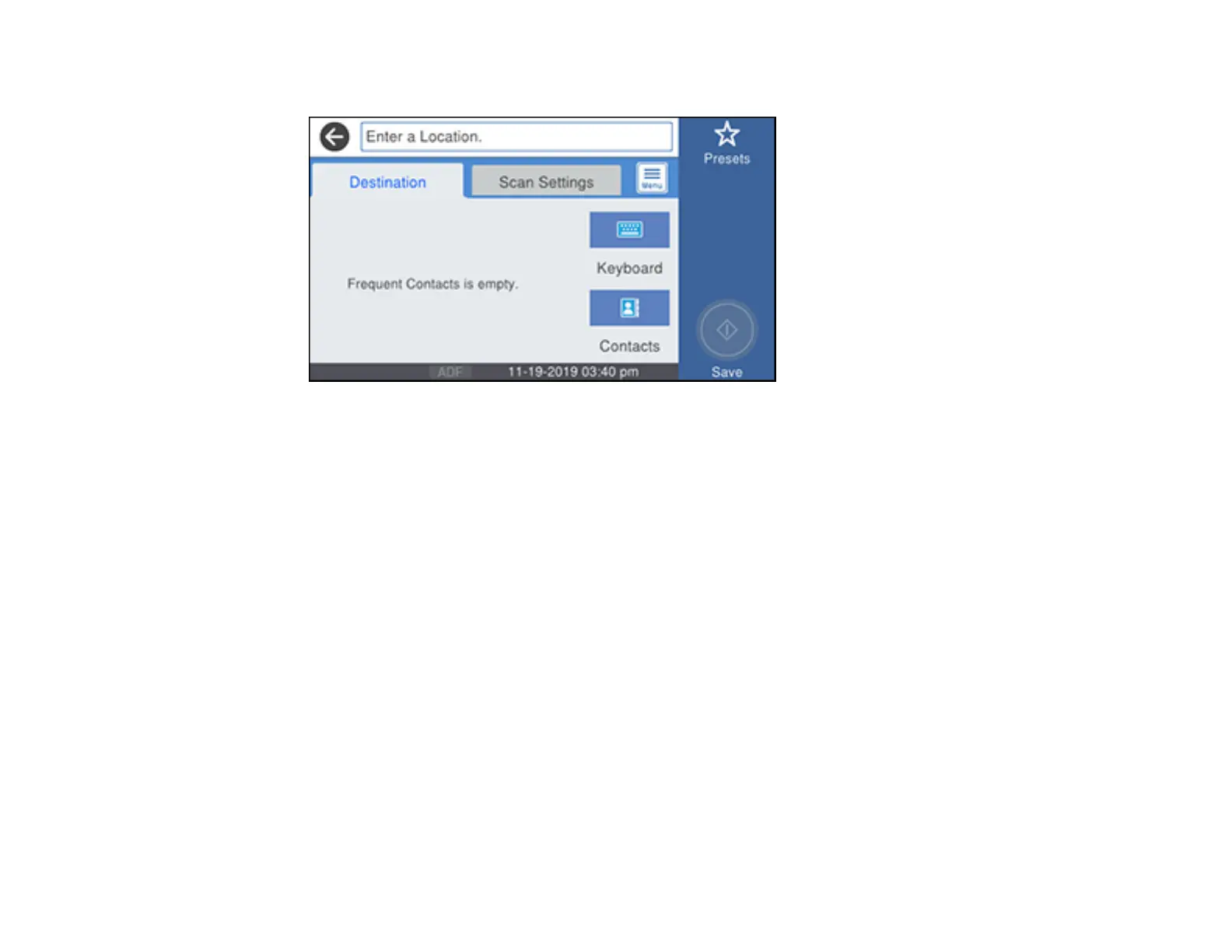

You see a screen like this:
5. Do one of the following:
• Select a frequently used location displayed on the Destination tab, if you created any.
• Select Keyboard, then select the Communication Mode field and select Network Folder (SMB)
or FTP. Then select the Location field and enter the folder location, and press OK.
Enter the folder path name for the Location setting in one of the following formats depending on
the Communication Mode setting you selected:
• SMB: \\host_name\folder
• FTP: ftp://host_name/folder_name
• Select Contacts and choose a saved location from the Contacts list.
• For a network folder or FTP location with a password, select the User Name field and use the
displayed keyboard to enter the user name. Then select the Password field and enter the
password.
• For an FTP location, enter the FTP server port number in the Port Number field. If there is a
firewall between the product and FTP server, select the Connection Mode field and select
Passive Mode.
6. Select Scan Settings.
7. Select File Format to choose the file format for your scan.

Epson WF-7820 Series Specifications

General

Print Resolution	4800 x 2400 dpi
Max Print Size	13" x 19"
Duplex Printing	Yes
Scan Resolution	1200 x 2400 dpi
Paper Capacity	250 sheets
ADF Capacity	50 sheets
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Scanner Type	Flatbed colour image scanner
Connectivity	Wi-Fi, Ethernet, Wi-Fi Direct, USB
Mobile Printing	Epson Connect, Apple AirPrint, Google Cloud Print
Paper Sizes	A3, A4, A5, A6, B4, B5, C6, DL
Fax Transmission Speed	Approx. 3 seconds per page
Fax Memory	Up to 550 pages
Print Technology	PrecisionCore
Ink Type	DURABrite Ultra Ink
