WF-C20590 Installation Guide

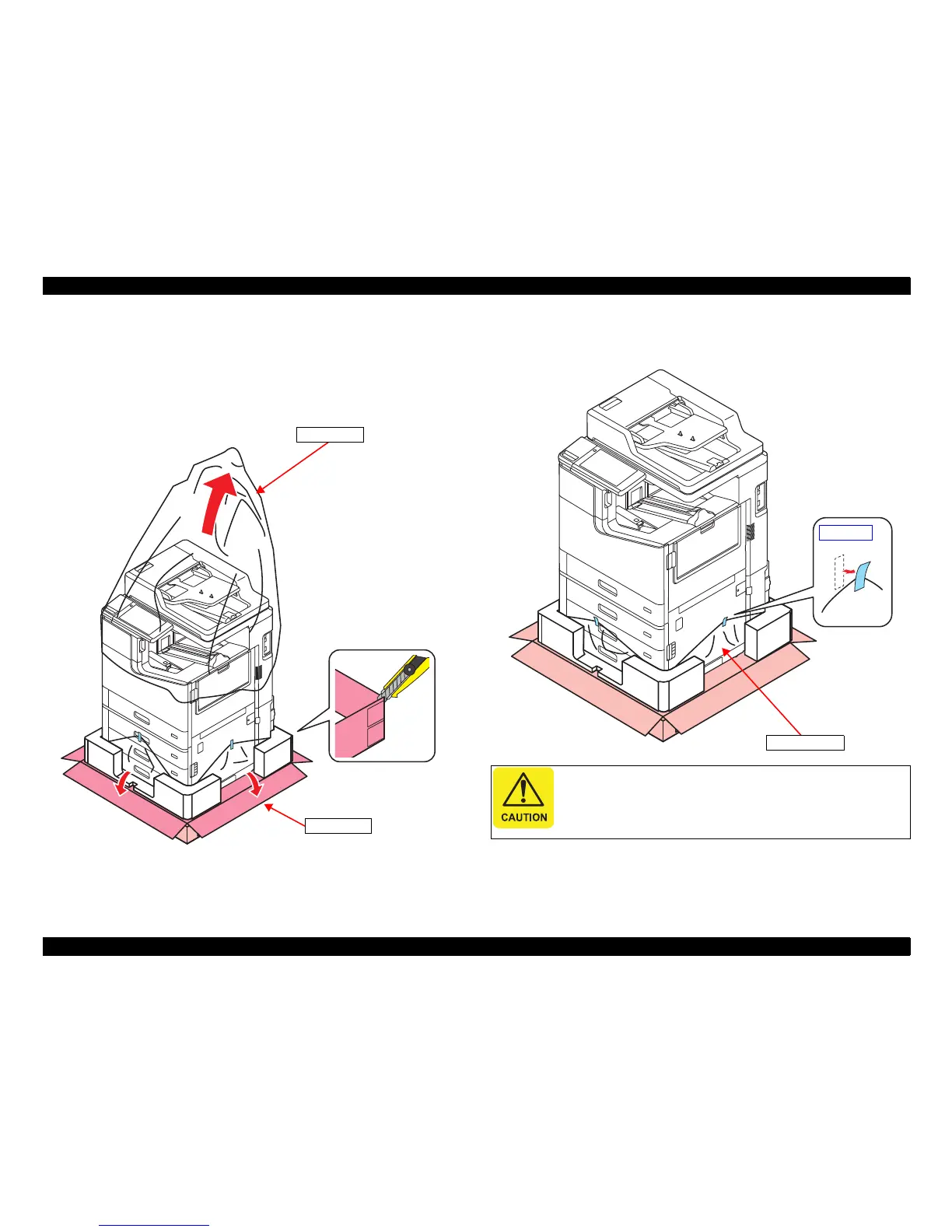

Unpacking
7
5.
Remove the plastic bag covering the printer.
6.
Using a box cutter, cut the
transparent tape holding the
four corners of the lower
box and open the bo
x.
7.
Remove the blue tape attaching the plastic sheet under the print
er.
x4
Plastic bag
Lower box
The center of gravity of the printer is toward the rear.
For the next steps, one worker should stand at each
corner of the printer and proceed carefully, paying
attention to the balance of the printer.
x4
Plastic sheet
Blue tape
PRELIMINARY
8
10
Table of Contents
Default Chapter
2
Table of Contents
2
WF-C20590 Installation Guide
2
Site Preparation
3
Installation Environment
3
Environmental Specifications
3
Installation Site Space
3
Space Required for Installation
4
Printer + Bridge Unit + Finisher Unit + High-Capacity Input Tray
4
Installation Notes
5
Position Where Hands Should be Placed on the Printer Body
5
Position Where Hands Should be Placed on the Bridge Unit
5
Position Where Hands Should be Placed on the Finisher Unit
5
Printer Included Items
6
Unpacking the Printer
6
Items Needed
6
Exterior
13
EJ Unit Interior
13
ADF and Scanner
13
Control Panel
13
Bridge Unit Included Items (Optional)
14
Unpacking the Bridge Unit
15
Minimum Workers
15
Finisher Unit Included Items (Optional)
20
Unpacking the Finisher Unit
20
High-Capacity Input Tray Included Items (Optional)
25
Unpacking the High-Capacity Input Tray
25
Setting up the Printer
27
Adding Labels
27
Checking the Circuit Breaker
27
Updating the Firmware
28
Initial Settings
29
Date/Time Setting
29
Installing Ink Cartridges and the Maintenance Box
31
Operation/Print Quality Check
31
Copy Test
32
Installing the Optional Units
33
Installing the Bridge Unit
33
Installation Space
33
Preparation of Printer
34
Connection of Printer and Bridge Unit
34
Left Side
36
Buffer Blocks
36
How to Adjust the Casters
41
Fixing Nut
41
Adjustment Nut
41
Adjusting the Right (Printer Side) Casters
42
Parallel Adjustment
42
Adjusting the Right (Printer Side) Casters to Touch the Floor
44
Cable Connection and Sponge Attachment
45
Bridge Unit Left Side
45
Power Supply Cable
45
Installing the Finisher Unit
46
Left Side of the Bridge Unit
48
Installing the Staple Cartridge (Finisher Unit)
51
Adjusting the Finisher Unit Height
52
Installing the High-Capacity Input Tray
55
Service Support Mode
59
