ESAB CUTMASTER 80
SERVICE Manual 0-5396
5-8
!
WARNING
Always turn OFF the air supply and bleed the system before disassembling the Filter As-
semblyasinjurycouldresult.
3. LoosenthetwoboltsonthetopoftheFilterAssemblyenoughtoallowtheFilterElementstomovefreely.
4. NotethelocationandorientationoftheoldFilterElements.
5. Slide out the old Filter Elements.

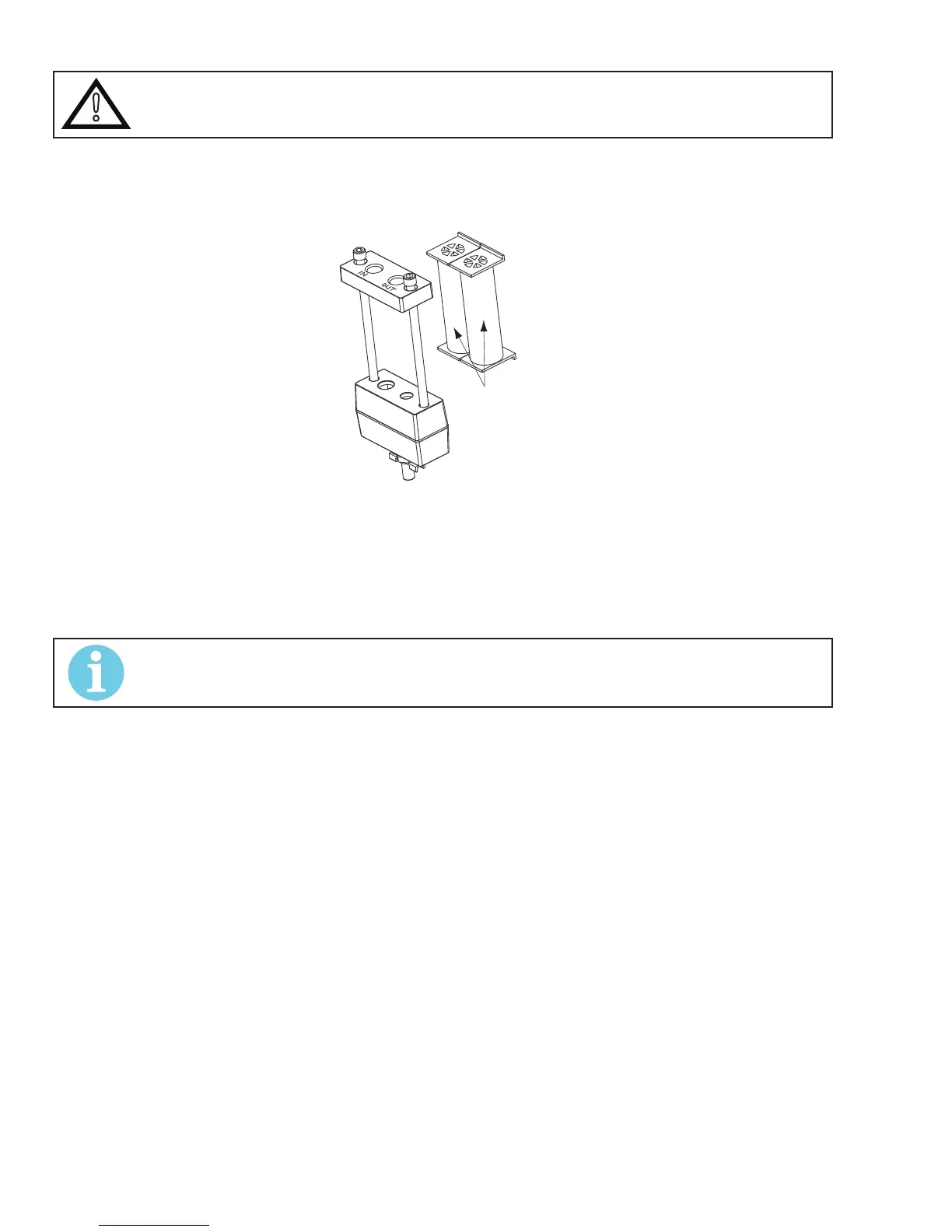

First & Second
Stage
Cartridges
(as marked)
Art # A-02942
Optional Two-Stage Filter Replacement
6. SlidethereplacementFilterElementsintotheFilterAssembly,withthesameorientationasnotedinStep4
above.
7. Handtightenthetwoboltsevenly,thentorqueeachboltto20-30in-lbs(2.3-3.4Nm).Impropertorque
may damage the gasket.
8. Slowlyapplyairpressuretotheassembly,checkingforleaks.
NOTE!
Asmallamountofairleakagefromthebottomttingisnormal.
This completes the parts replacement procedures.
