ESAB CUTMASTER 80
 INTRODUCTION Manual0-5396
2-2

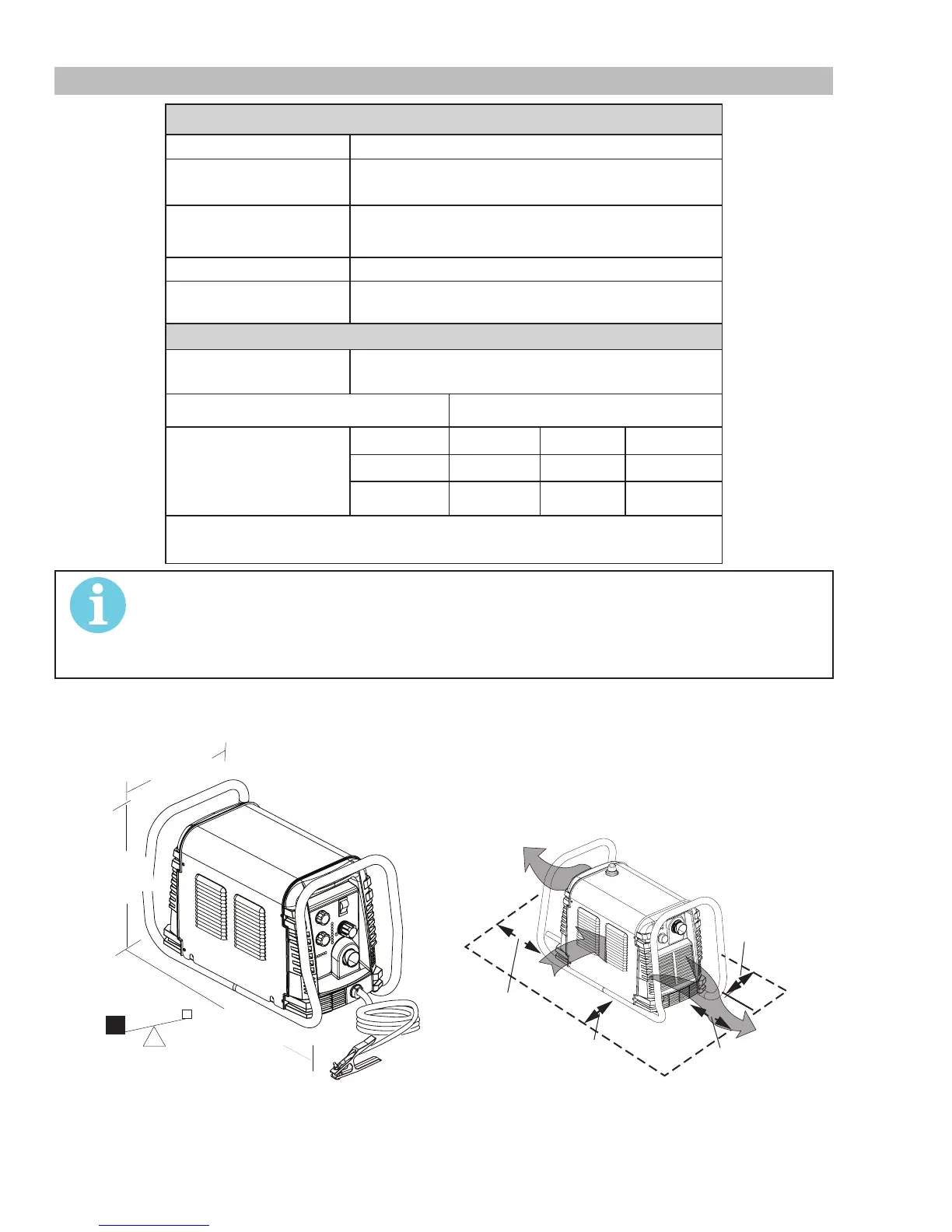

2.04 PowerSupplySpecications
ESAB Cutmaster
®
80PowerSupplySpecications
Input Power
400VAC(360-440VAC),ThreePhase,50/60Hz
Input Power Cable
Power Supply includes input power cable.
Forcablesatotherinputvoltagesseesection2.05.
Input Power Cable
Power Supply includes input cable.
Cable for 400V 3 Phase.
Output Current
20-80Amps,ContinuouslyAdjustable
Power Supply Gas
Filtering Ability
Particulates to 5 Microns
ESAB Cutmaster
®
80 Power Supply Duty Cycle *
Ambient Temperature
Duty Cycle Ratings @ 40° C (104° F)
Operating Range 0° - 50° C
IEC Rating
All Units
Duty Cycle 40% 60% 100%
Current
80 Amps 65 Amps 50 Amps
DC Voltage
112 106 100
*NOTE:Thedutycyclewillbereducediftheprimaryinputpower(AC)islowor
theoutputvoltage(DC)ishigherthanshowninthischart.
NOTE!
IECRatingisdeterminedasspeciedbytheInternationalElectro-TechnicalCommission.
Thesespecicationsincludecalculatinganoutputvoltagebaseduponpowersupplyrated
current.Tofacilitatecomparisonbetweenpowersupplies,allmanufacturersusethisout-
putvoltagetodeterminedutycycle.
Power Supply Dimensions & Weight Ventilation Clearance Requirements
22.5"
0.57 m
43 lb / 19.5 kg
10.75"
273 mm
16.375"
416 mm
Art # A-07941
6"
150 mm
24"
610 mm
6"
150 mm
6"
150 mm
Art # A-07925_AB
