ESAB Cutmaster 80 - Fault Indicator

ESAB CUTMASTER 80
Manual 0-5396 SERVICE
5-3

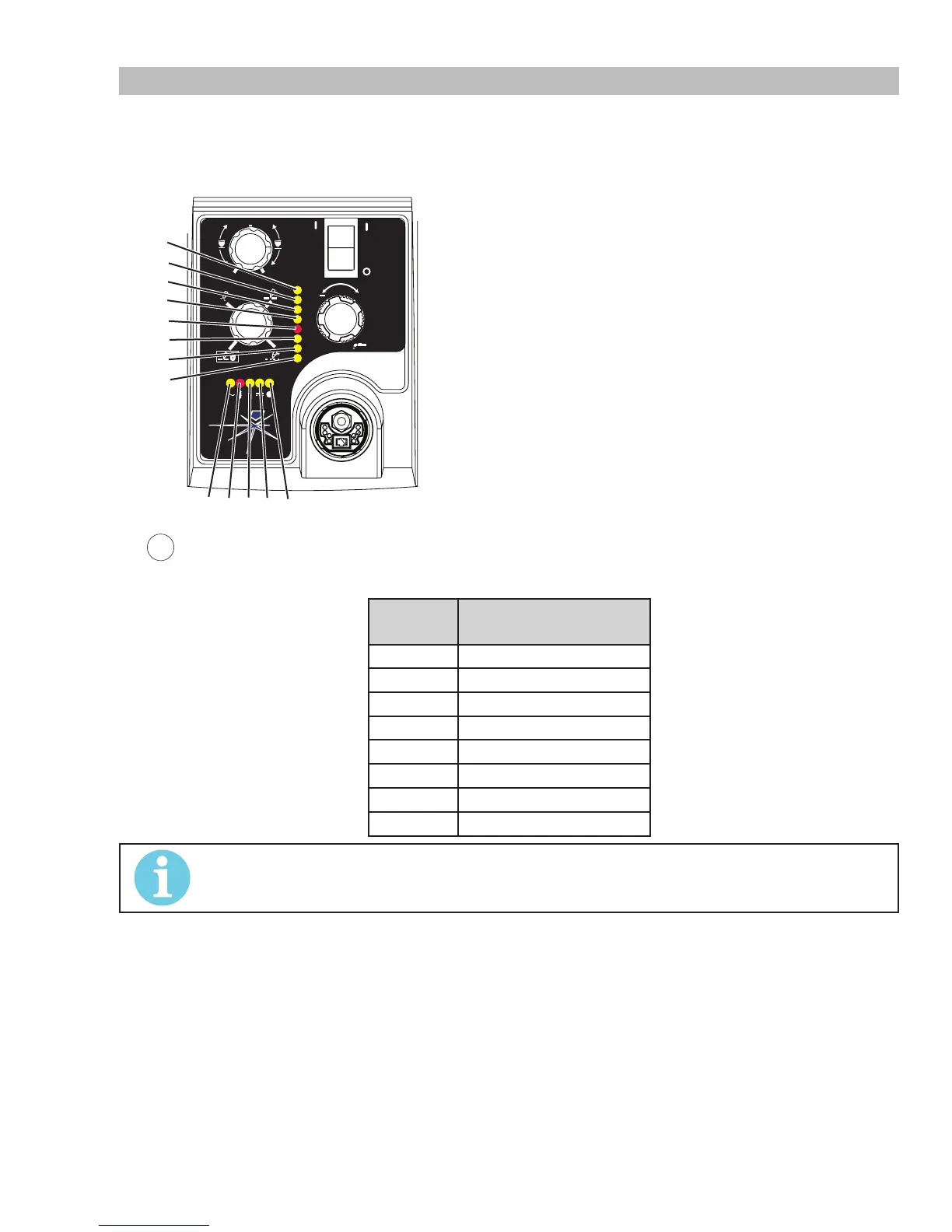

5.04 Fault Indicator
Atinitialpowerup,twolightswilltemporarilyilluminatefor2-3secondstoshowtheversionofsoftwareused.
Todeterminetherstdigit,countthefunctionindicatorslefttoright,1through5.Todeterminetheseconddigit
countthepressureindicators,readingfrombottomtotop,0through7.IntheexamplebelowtheTempindicator
and75psiindicatorsareonindicatingtheversionwouldbe2.3.
A
+
PSI BAR
MAXMAX
MINMIN
!
1
2
3
4
Art# A-07988
MIN
MAX
0
1
2
3
4
5
6
7
5
!
Whenthe"Fault"indicatorisONorblinkingitwillbeaccompaniedbyoneofthepressureindicatorlights
depending on what the Fault is. The following table explains each of those Faults.
Pressure
Indicator
Fault
Max OverPressure
90 Internal Error
85 Check Consumables
80 Consumables Missing
75 Start Error
70 Parts in Place
65 Input Power
Min Under Pressure
NOTE!
Faultexplanationsarecoveredinthefollowingtables.
