ESAB ESD 7.5 - Esd;Esi 15

3  TECHNICAL DATA
0463 751 001
- 11 -
© ESAB AB 2023
3.2 ESD/ESI 15

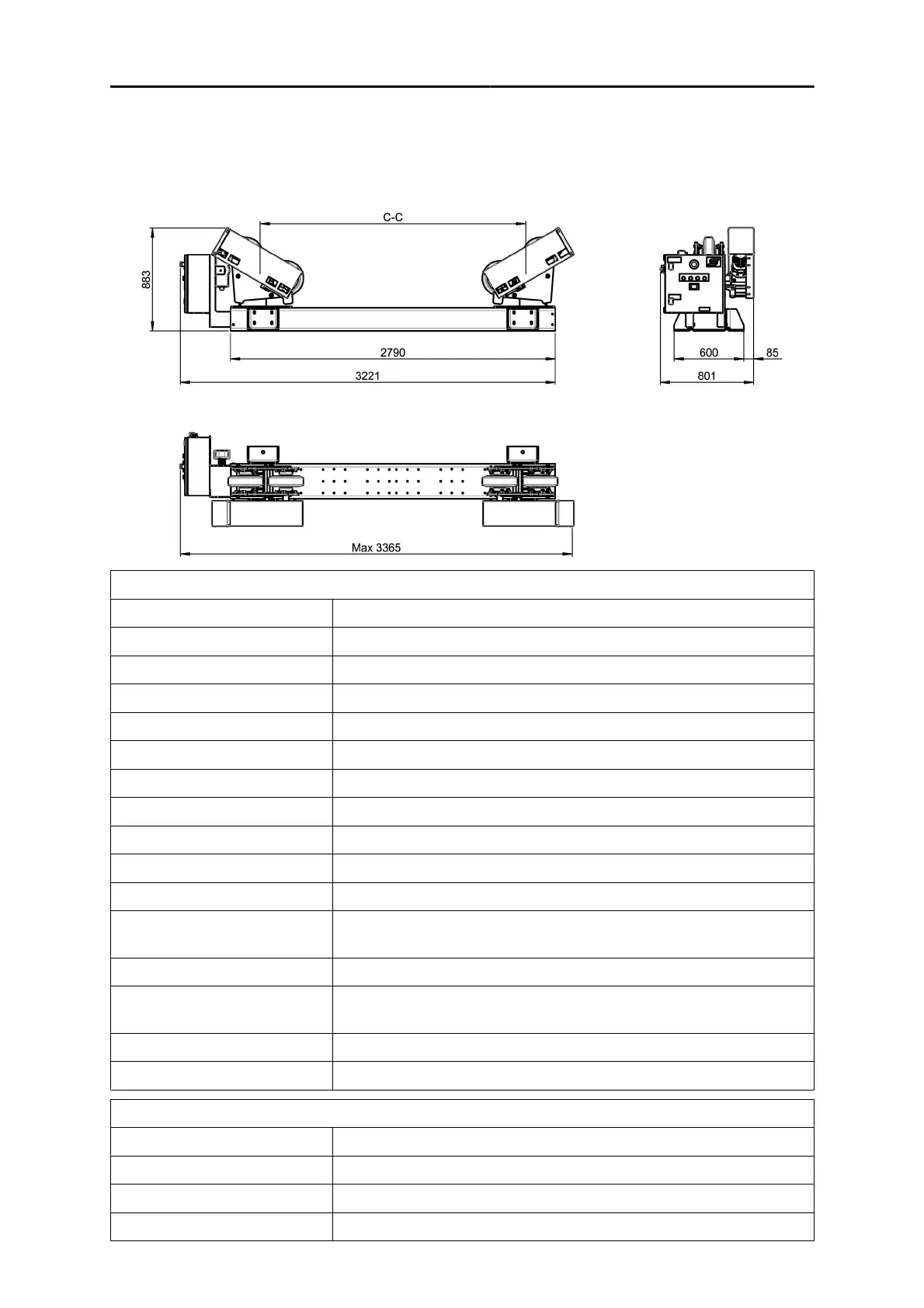

3.2.1 Drive unit, ESD 15
ESD15
Max loading capacity 7500 kg (16535lb)
Turning capacity 22500kg (49604 lb)
Turning drive motor 2×0.18kW
Turning speed 200-2000mm/min (5.51-78.74in./min)
Workpiece diameter minimum Ø1090mm (42.91in.) at 60° included angle
Workpiece diameter maximum Ø5400mm (212.60 in.) at 45° included angle
Mains supply 380-440V, 3phase, 50Hz
Mains fuse 16A
Roller type Polyurethane (90 °C / 92°A Shore)
Roller width / diameter 90 mm (3.54in.) / 300mm (11.81 in.)
Dimensions (L × W × H) 3365 × 801 × 883 mm (132.5 × 31.5 ×34.76in.)
C-C
760, 1140, 1520, 1900, 2280 mm
(29.92, 44.88, 59.84, 74.8, 89.76 in.)
Weight 700 kg (1544 lb)
Wireless remote - control
pendant
Wireless
Control voltage 24V
Operation temperature -15 to +40 °C
PEK settings, ESD15
Gear 1 N1:N2 100:1
Gear 2 N1:N2 10:1
Gear 3 N1:N2 1:1
Wheel diameter 400mm
