ESAB ESD 7.5 - Roller Bed Configurations

4  INSTALLATION
0463 751 001
- 26 -
© ESAB AB 2023
4.7 Roller bed configurations

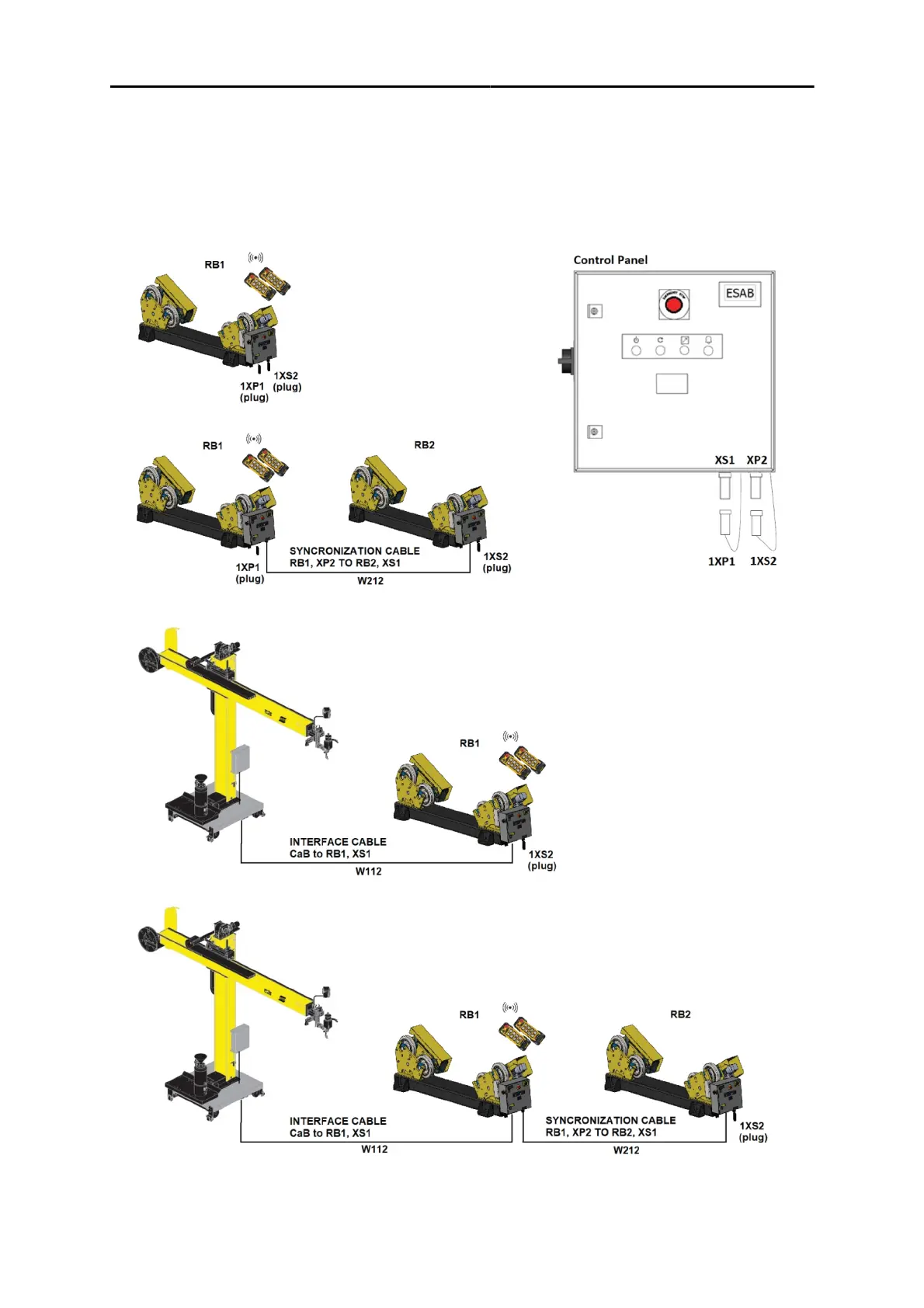

The figure below shows different setup options for the CaB and roller bed. For further details see
section "WIRING DIAGRAM". For interface cable and synchronization cable see section
"ACCESSORIES".
