ESAB ESD 7.5 - SPARE PARTS - ESI 7.5 Mechanical Parts List - Idler Section

APPENDIX
0463 751 001
- 48 -
© ESAB AB 2023
SPARE PARTS - ESI 7.5 Mechanical parts list -
Idler section

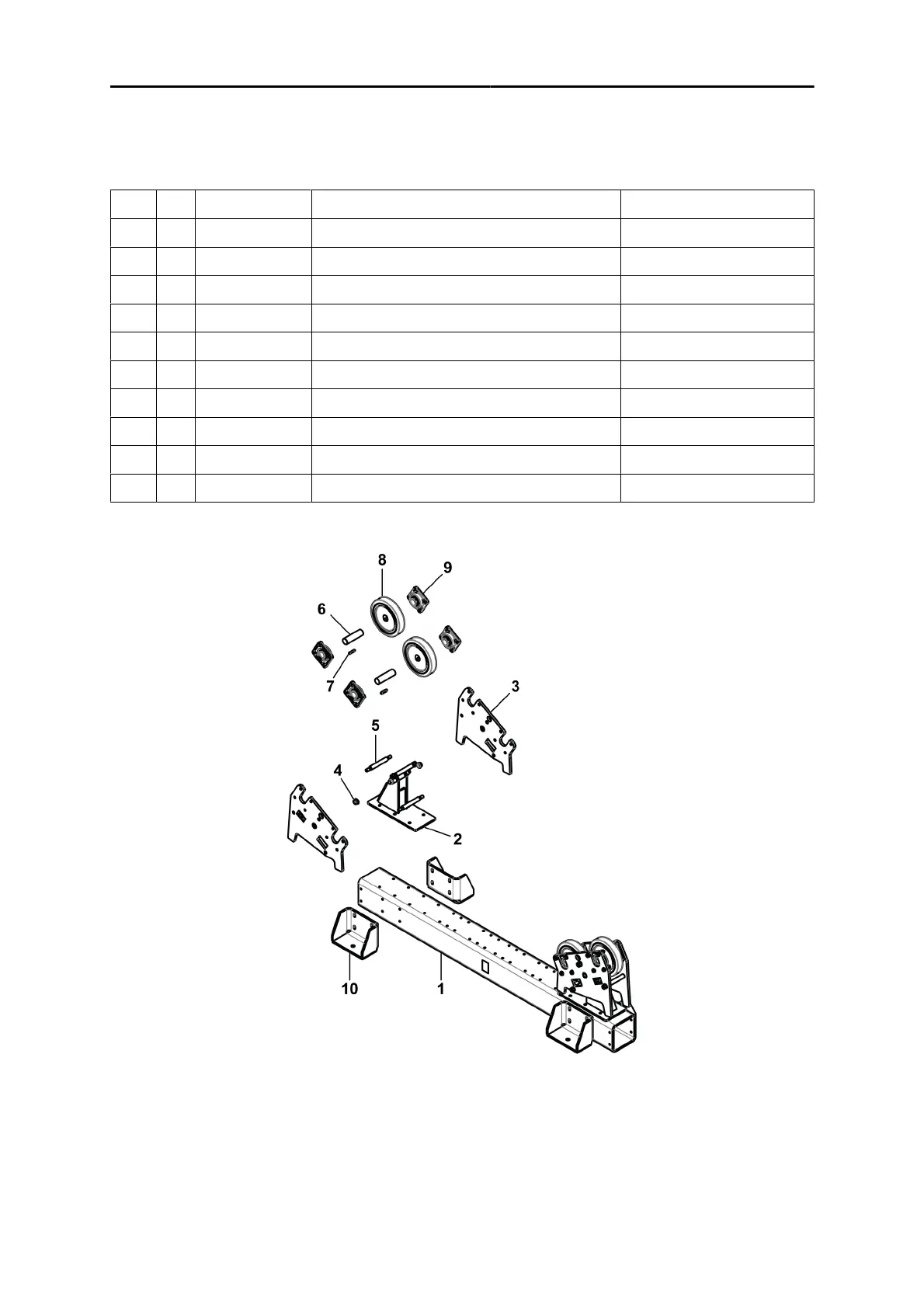

Item Qty Ordering no. Denomination Notes
1 1 0909 229 001 Base frame 200×200×12.5 L=2200
2 2 0909 248 880 Roller stand
3 4 0909 297 001 Side plate
4 4 0909 173 001 Slide bearing with flange
5 6 0909 392 001 Shaft kidney
6 4 0909 299 001 Idler shaft
7 4 0215 701 321 Key, wheel 12×8×32
8 4 0909 249 001 PU wheel 247×50
9 8 0909 302 001 Flange bearing
10 4 0909 037 001 Side support
