3.4 ESD/ESI 60

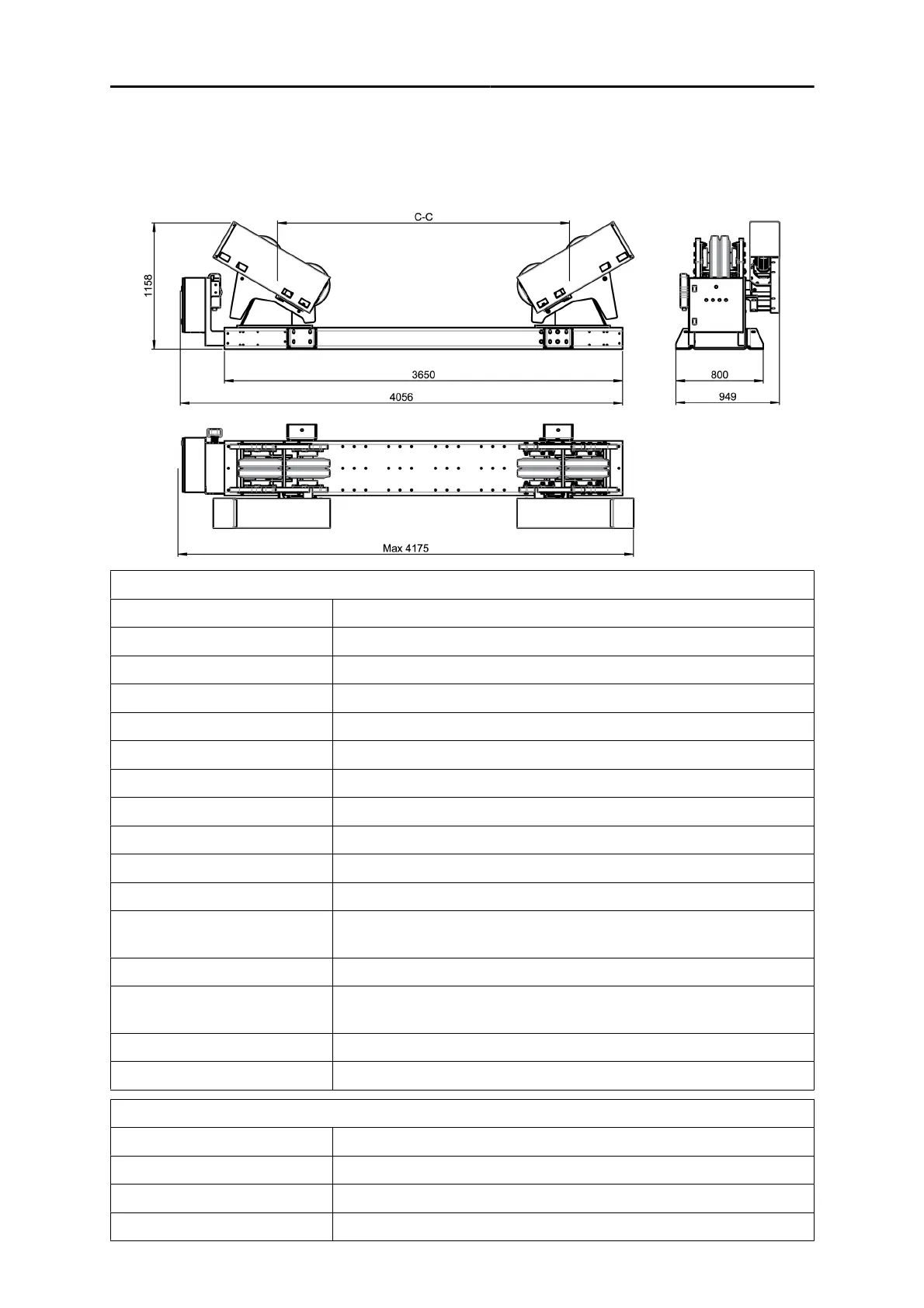

3.4.1 Drive unit, ESD 60
ESD60
Max loading capacity 30000 kg (66139lb)
Turning capacity 90000kg (198416 lb)
Turning drive motor 2×0.75kW
Turning speed 200-2000mm/min (5.51-78.74in./min)
Workpiece diameter minimum Ø1420mm (55.91in.) at 60° included angle
Workpiece diameter maximum Ø6300mm (248.03 in.) at 45° included angle
Mains supply 380-440V, 3 phase, 50Hz
Mains fuse 16A
Roller type Polyurethane (90 °C / 92°A Shore)
Roller width / diameter 2×90 mm (2×3.54 in.) / 400 mm (15.74 in.)
Dimensions (L × W × H) 4175 × 949 × 1158 mm (164.4 × 37.4 × 45.59in.)
C-C
995, 1415, 1835, 2255, 2675mm
(39.17, 55.71, 72,24, 88.78, 105.31in.)
Weight 2000 kg (4410 lb)
Wireless remote - control
pendant
Wireless
Control voltage 24V
Operation temperature -15 to +40 °C
PEK settings, ESD60
Gear 1 N1:N2 100:1
Gear 2 N1:N2 10:1
Gear 3 N1:N2 1:1
Wheel diameter 580mm
