3  TECHNICAL DATA
0463 751 001
- 9 -
© ESAB AB 2023
3 TECHNICAL DATA
3.1 ESD/ESI7.5

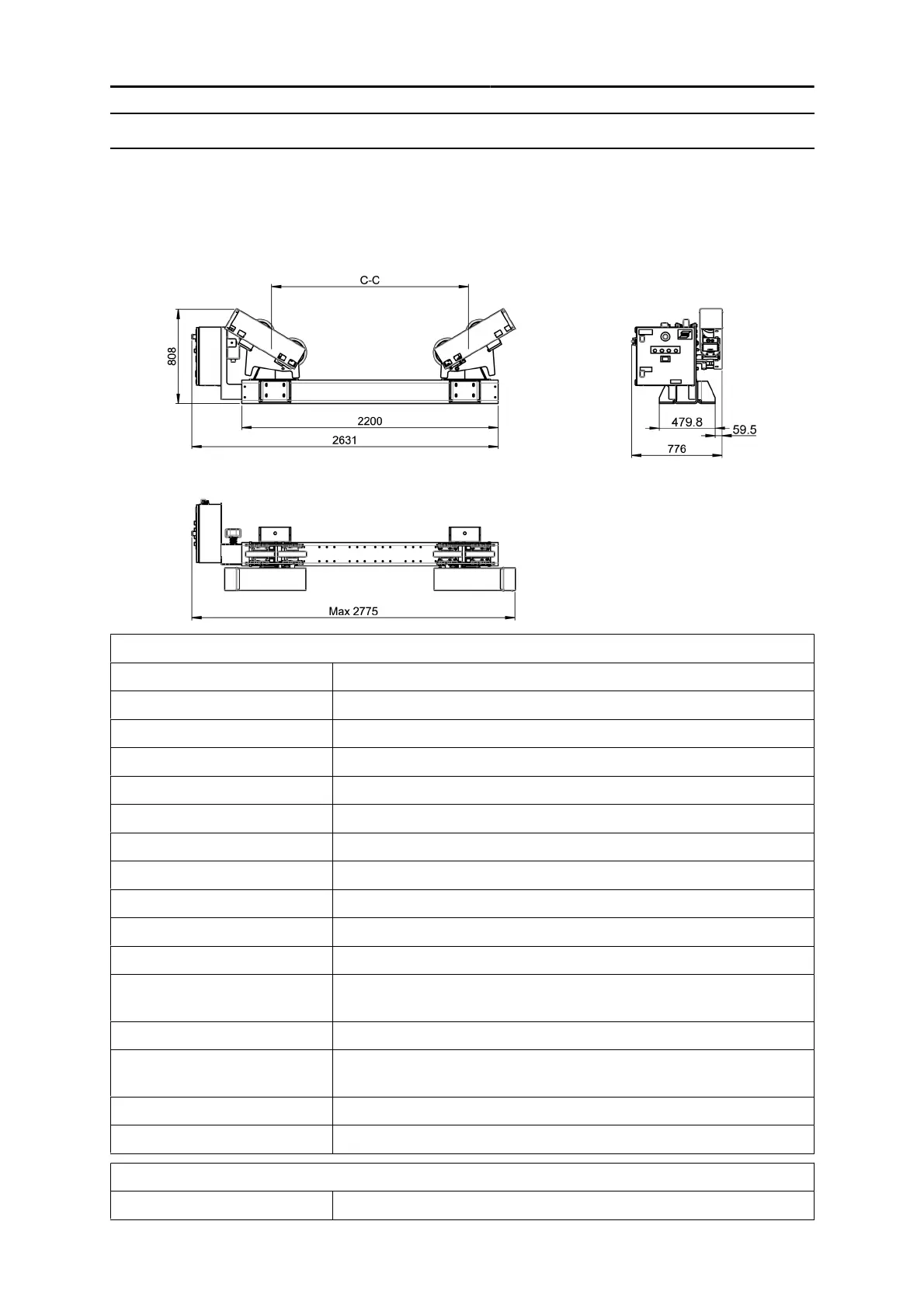

3.1.1 Drive unit, ESD7.5
ESD 7.5
Max loading capacity 3750 kg (8269lb)
Turning capacity 11250kg (24806 lb)
Turning drive motor 2×0.25kW
Turning speed 150–1500mm/min (5.91–59.05in./min)
Workpiece diameter minimum Ø950mm (37.40in.) at 60° included angle
Workpiece diameter maximum Ø4000mm (157.48 in.) at 45° included angle
Mains supply 380–440V, 3phase, 50Hz
Mains fuse 16A
Roller type Polyurethane (90 °C / 92°A Shore)
Roller width / diameter 50 / 247 mm (1.97 / 9.72 in.)
Dimensions (L × W × H) 2775 × 776 × 808 mm (116.4 × 31.89 × 31.8 in.)
C-C
650, 910, 1170, 1430, 1690 mm
(25.59, 35.83, 46.06, 56.30, 66.54 in.)
Weight 550 kg (1213 lb)
Wireless remote - control
pendant
Wireless
Control voltage 24V
Operation temperature -15 to +40 °C (53.5 to 104 °F)
PEK settings, ESD 7.5
Gear 1 N1:N2 100:1
