ESAB ESD 7.5 - SPARE PARTS - ESI 30 Mechanical Parts List - Idler Section

APPENDIX
0463 751 001
- 54 -
© ESAB AB 2023

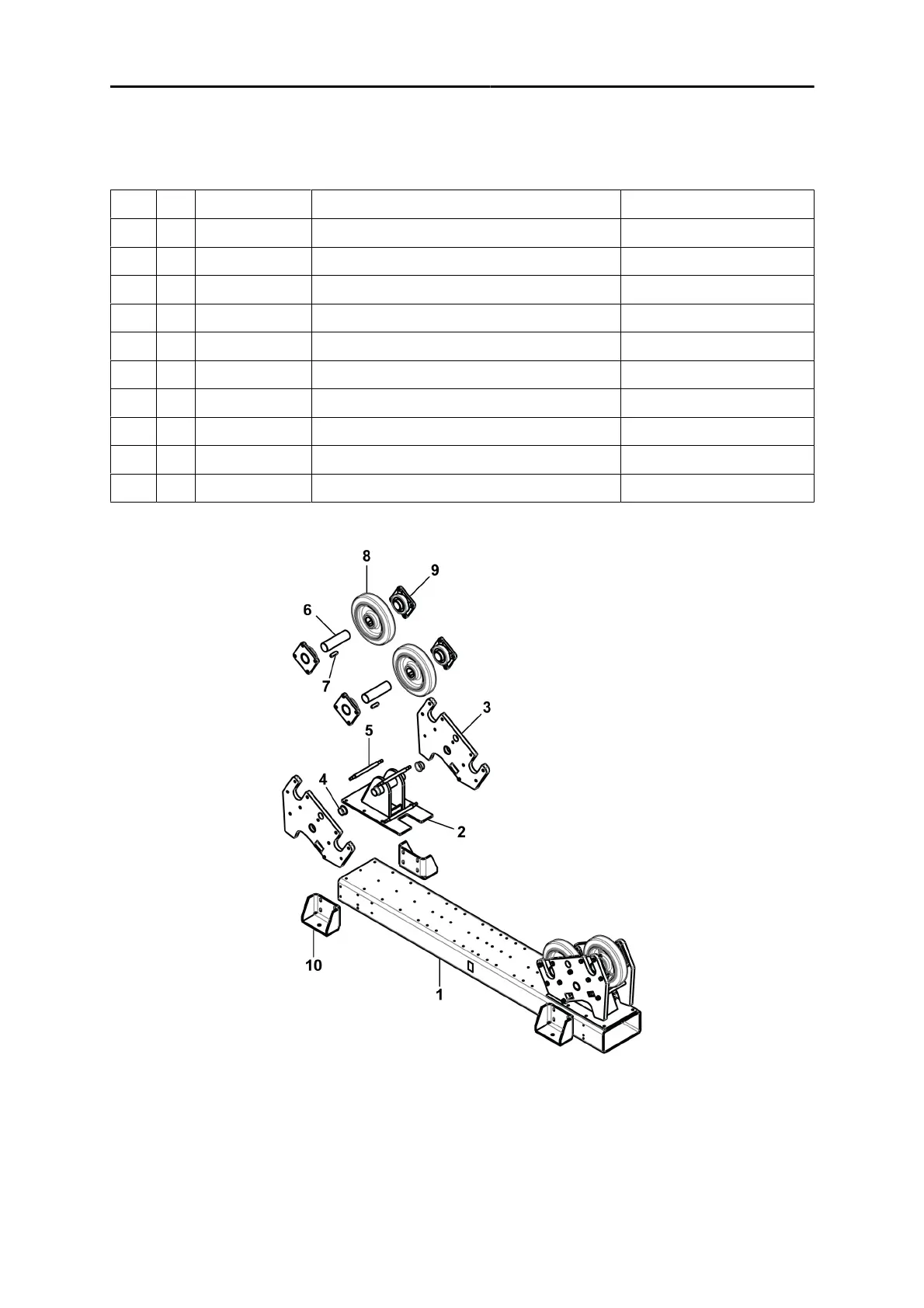

SPARE PARTS - ESI30 Mechanical parts list -
Idler section
Item Qty Ordering no. Denomination Notes
1 1 0909 035 001 Base frame 400×200×12.5 L=2790
2 2 0909 134 880 Roller stand
3 4 0909 135 001 Side plate
4 4 0909 173 014 Slide bearing with flange
5 6 0909 386 001 Shaft kidney
6 4 0909 132 001 Idler shaft
7 4 0215 701 420 Key, wheel 20×12×70
8 4 0909 076 001 PU wheel 400×90
9 8 0909 136 001 Flange bearing
10 4 0909 037 001 Side support
