3.5 ESD/ESI 90

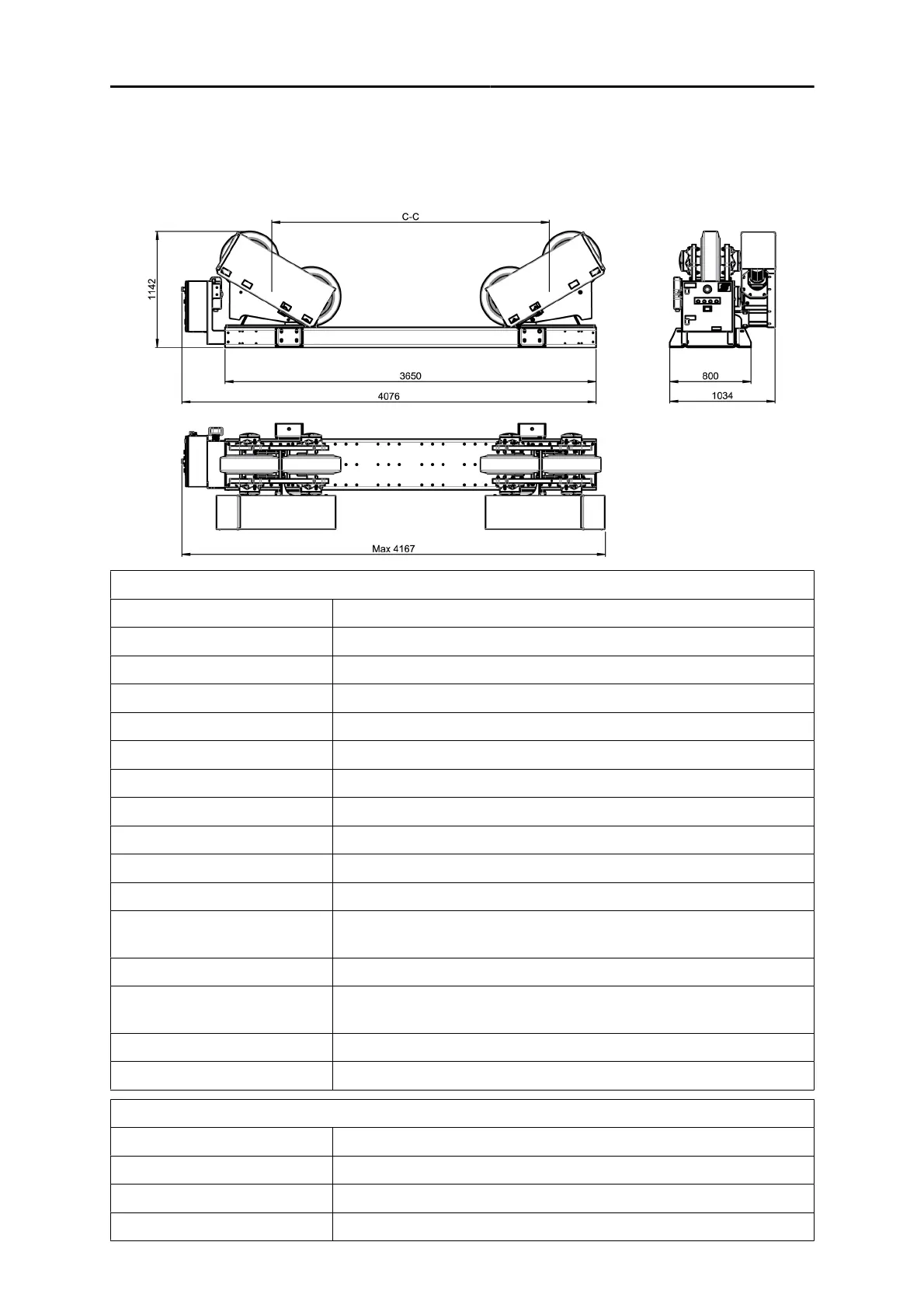

3.5.1 Drive unit, ESD 90
ESD90
Max loading capacity 45000 kg (66139lb)
Turning capacity 135000kg (297624 lb)
Turning drive motor 2×1.0kW
Turning speed 200-2000mm/min (5.51-78.74in./min)
Workpiece diameter minimum Ø2120 mm (83.46in.) at 60° included angle
Workpiece diameter maximum Ø6200mm (244.09 in.) at 45° included angle
Mains supply 380-440V, 3 phase, 50Hz
Mains fuse 16A
Roller type Polyurethane (90 °C / 92°A Shore)
Roller width / diameter 180 mm (7.09in.) / 580 mm (22.83in.)
Dimensions (L × W × H) 4167 × 1034 × 1142 mm (164.1 × 40.71 × 44.96 in.)
C-C
1470, 1890, 2310, 2730 mm
(57.87, 74.41, 90.94, 107.48 in.)
Weight 2550 kg (5623 lb)
Wireless remote - control
pendant
Wireless
Control voltage 24V
Operation temperature -15 to +40 °C
PEK settings, ESD90
Gear 1 N1:N2 100:1
Gear 2 N1:N2 10:1
Gear 3 N1:N2 1:1
Wheel diameter 580mm
