3.6 ESD/ESI 120

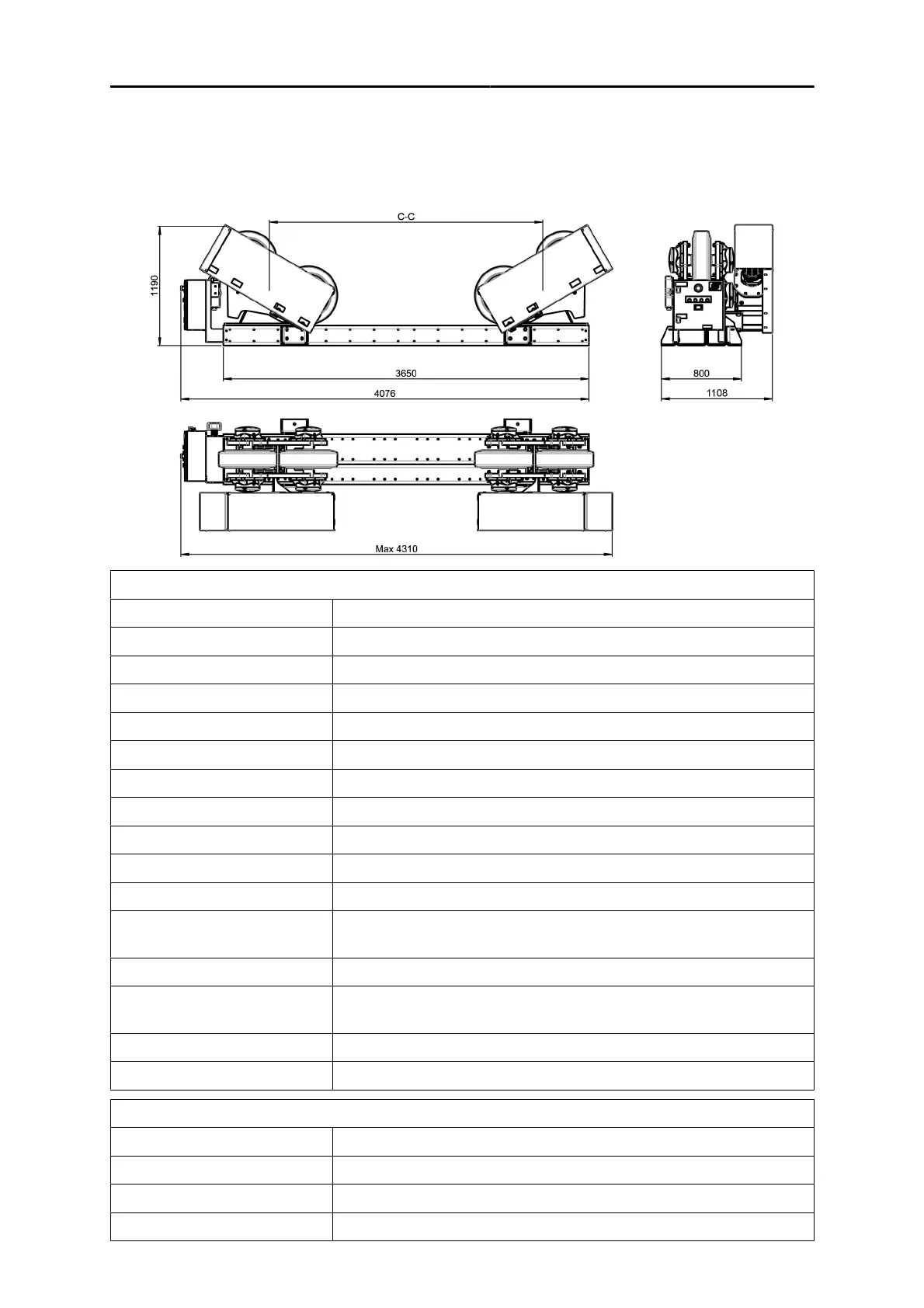

3.6.1 Drive unit, ESD 120
ESD120
Max loading capacity 60000 kg (132277 lb)
Turning capacity 180000kg (396832 lb)
Turning drive motor 2×1.5kW
Turning speed 200-2000mm/min (7.87-78.74in./min)
Workpiece diameter minimum Ø2120mm (83.46in.) at 60° included angle
Workpiece diameter maximum Ø6200 mm (244.09 in.) at 45° included angle
Mains supply 380-440V, 3 phase, 50Hz
Mains fuse 16A
Roller type Polyurethane (90 °C / 92°A Shore)
Roller width / diameter 180 mm (7.08in.) / 580 mm (22.83in.)
Dimensions (L × W × H) 4310 × 1108 × 1190 mm (169.7 × 43.62 × 46.85in.)
C-C
1470, 1890, 2310, 2730 mm
(57.87, 74.41, 90.94, 107.48 in.)
Weight 3000 kg (6615 lb)
Wireless remote - control
pendant
Wireless
Control voltage 24V
Operation temperature -15 to +40 °C
PEK settings, ESD120
Gear 1 N1:N2 100:1
Gear 2 N1:N2 10:1
Gear 3 N1:N2 1:1
Wheel diameter 580mm
