3.3 ESD/ESI 30

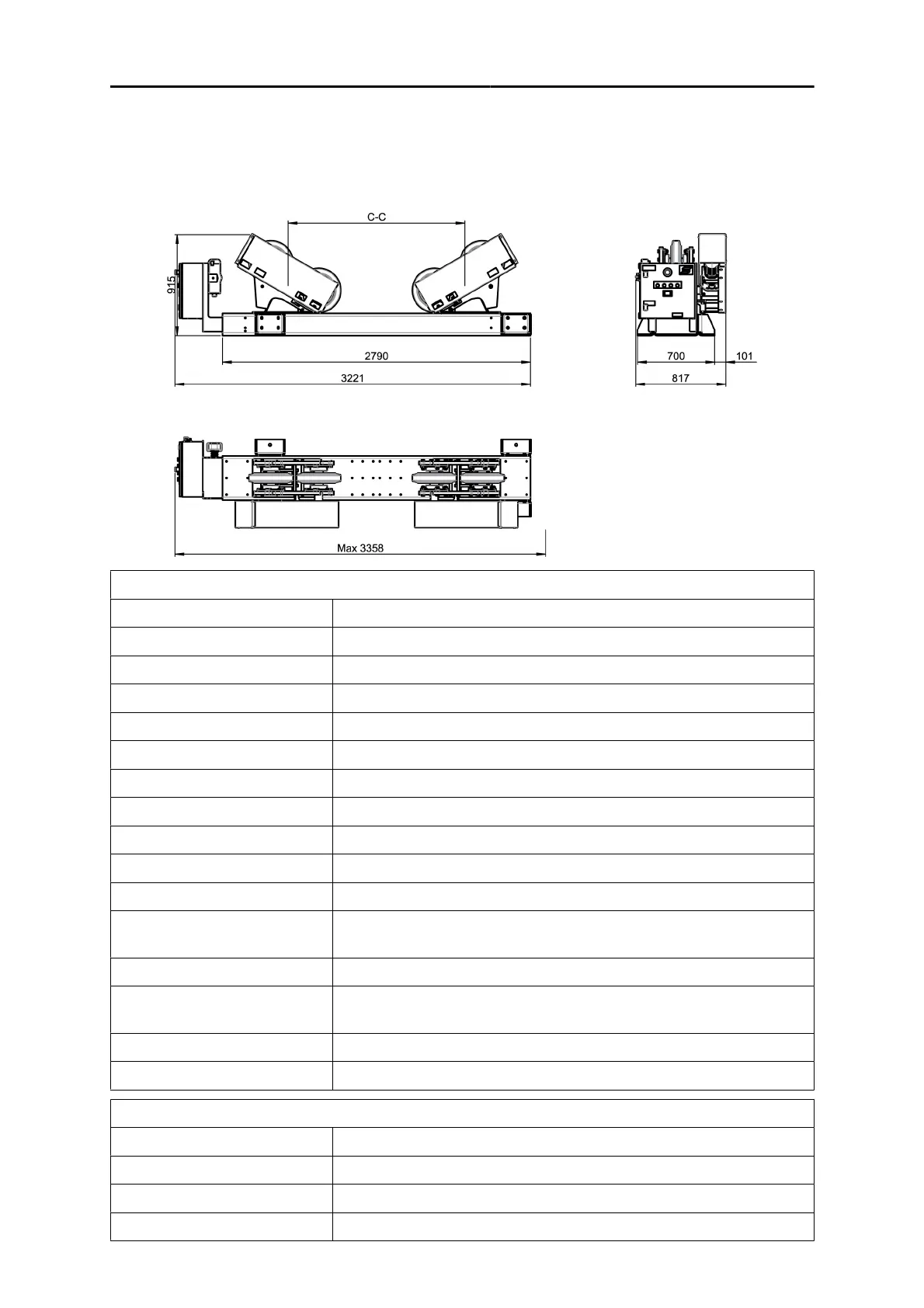

3.3.1 Drive unit, ESD 30
ESD 30
Max loading capacity 15000 kg (33069lb)
Turning capacity 45000kg (99208 lb)
Turning drive motor 2×0.37kW
Turning speed 200-2000mm/min (5.51-78.74in./min)
Workpiece diameter minimum Ø1420mm (55.91 in.) at 60° included angle
Workpiece diameter maximum Ø4900mm (192.92 in.) at 45° included angle
Mains supply 380-440V, 3phase, 50Hz
Mains fuse 16A
Roller type Polyurethane (90 °C / 92°A Shore)
Roller width / diameter 90 mm (3.54in.) / 400mm (15.74in.)
Dimensions (L × W × H) 3358 × 817 × 915 mm (132.2 × 32.2 × 36.0 in.)
C-C
995, 1375, 1755, 2135 mm
(39.17, 54.12, 69.09, 84.06 in.)
Weight 1100 kg (2426 lb)
Wireless remote - control
pendant
Wireless
Control voltage 24V
Operation temperature -15 to +40 °C
PEK settings, ESD 30
Gear 1 N1:N2 100:1
Gear 2 N1:N2 10:1
Gear 3 N1:N2 1:1
Wheel diameter 400mm
