5 OPERATION
0463 751 001
- 29 -
© ESAB AB 2023
NOTE!
When one of the direction buttons (forward or reverse) is pressed, the roller beds immediately
begin to turn the vessel.

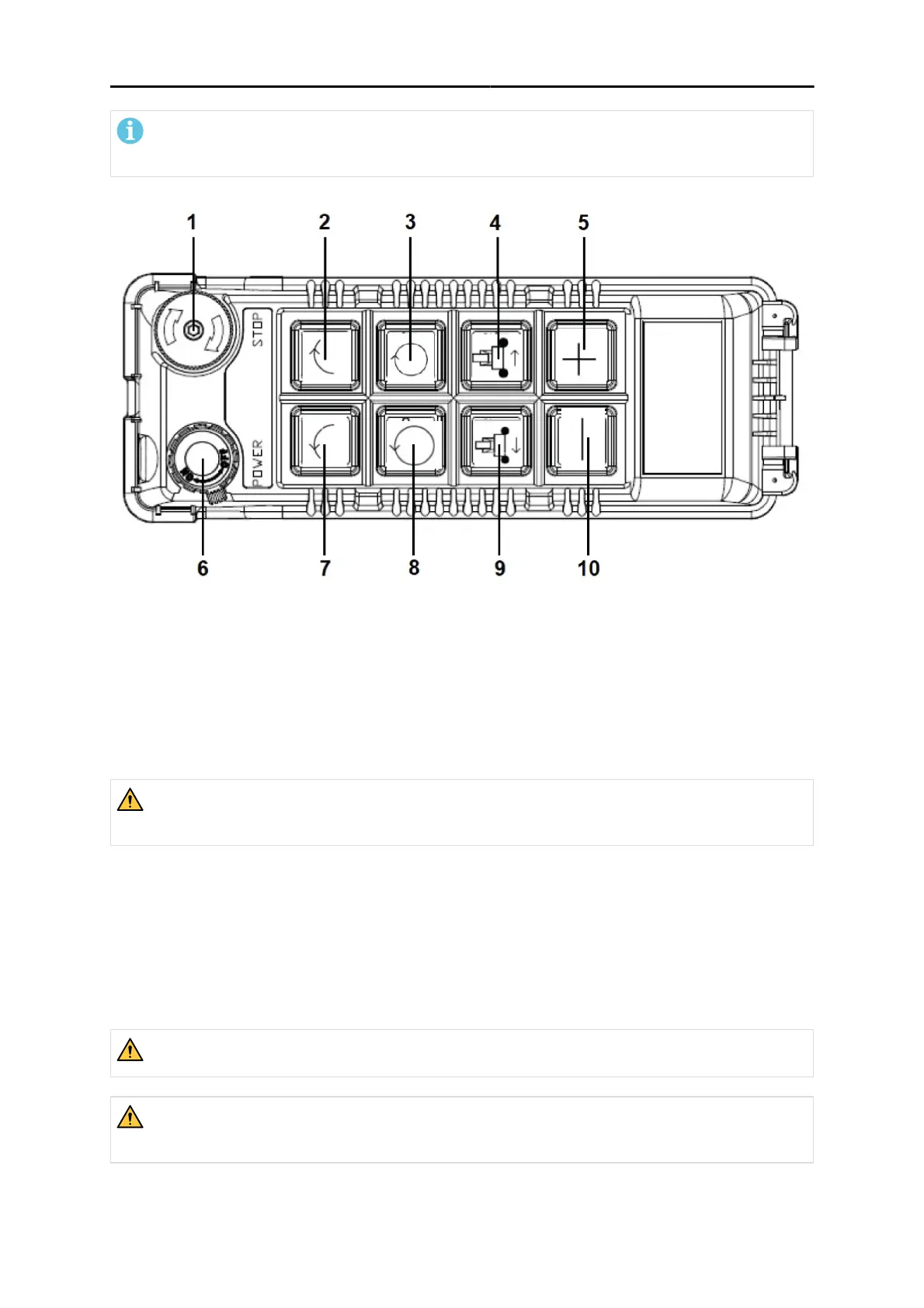

1. Emergency stop button 6. Main switch, ON/OFF
2. Incremental rotation clockwise 7. Incremental rotation anti-clockwise
3. Continuously rotation clockwise. Toggling
function ON/OFF.
8. Continuously rotation anti-clockwise. Toggling
function ON/OFF.
4. Railcar motion direction A 9. Railcar motion direction B
5. Increasing rotation speed 10. Decreasing rotation speed
5.4 Switch the mains power on
WARNING!
Do not operate the roller beds if there are signs of damage. Always have an authorized ESAB
service technician to check and make repairs if necessary.
Before switching on the roller beds, check that:
1. the wheel stands are correctly bolted on the base frame.
2. the wheels are correctly positioned under the vessel.
3. there are no obstructions to prevent rotation of the vessel (if one is loaded).
Visually inspect the wheels, motors, gearboxes, wireless remote - control pendant, control panel and
cables for any signs of damage.
WARNING!
Make sure that the mains supply matches the electrical voltage shown on the control panel.
WARNING!
Ensure that mains cable do not lay on vehicle or forklift traffic lanes and do not cause a
tripping hazard.
1) Plug in the mains lead to the power supply.
2) Switch on the mains power, the mains on lamp (green) on the control panel illuminates.
