ESAB ESD 7.5 - SPARE PARTS - ESI 15 Mechanical Parts List - Idler Section

APPENDIX
0463 751 001
- 51 -
© ESAB AB 2023

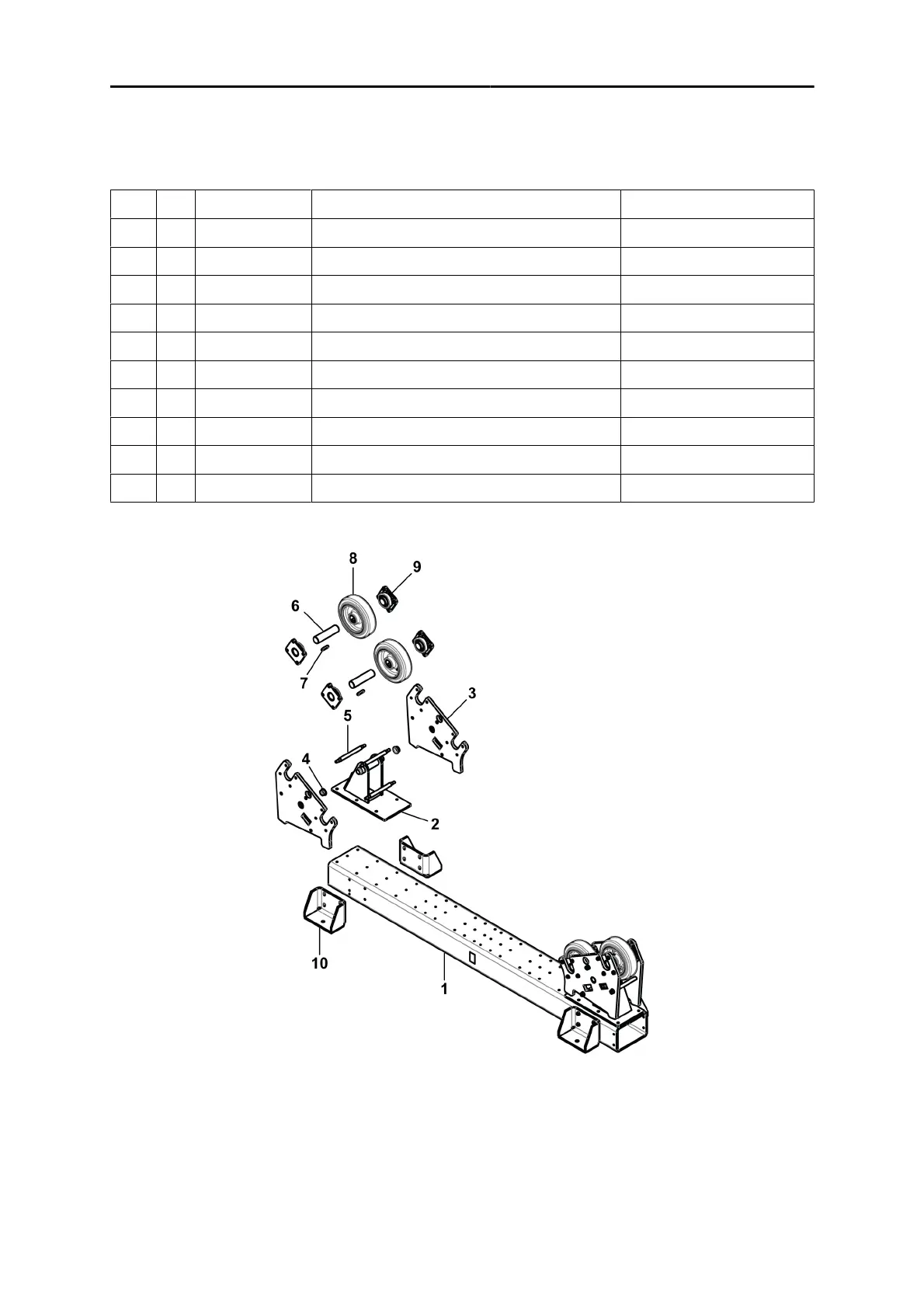

SPARE PARTS - ESI15 Mechanical parts list -
Idler section
Item Qty Ordering no. Denomination Notes
1 1 0909 043 001 Base frame 300×200×12.5 L=2790
2 2 0909 159 880 Roller stand
3 4 0909 160 001 Side plate
4 4 0909 173 005 Slide bearing with flange
5 6 0909 390 001 Shaft kidney
6 4 0909 163 001 Idler shaft
7 4 0215 701 341 Key, wheel 14×9×63
8 4 0909 164 001 PU wheel 300×90
9 8 0909 162 001 Flange bearing
10 4 0909 037 001 Side support
