SECTION 3 INSTALLATION
Panel Receptacle
Air Hose
Extension Cable Male
Receptacle
C. Connecting to the ESP-101

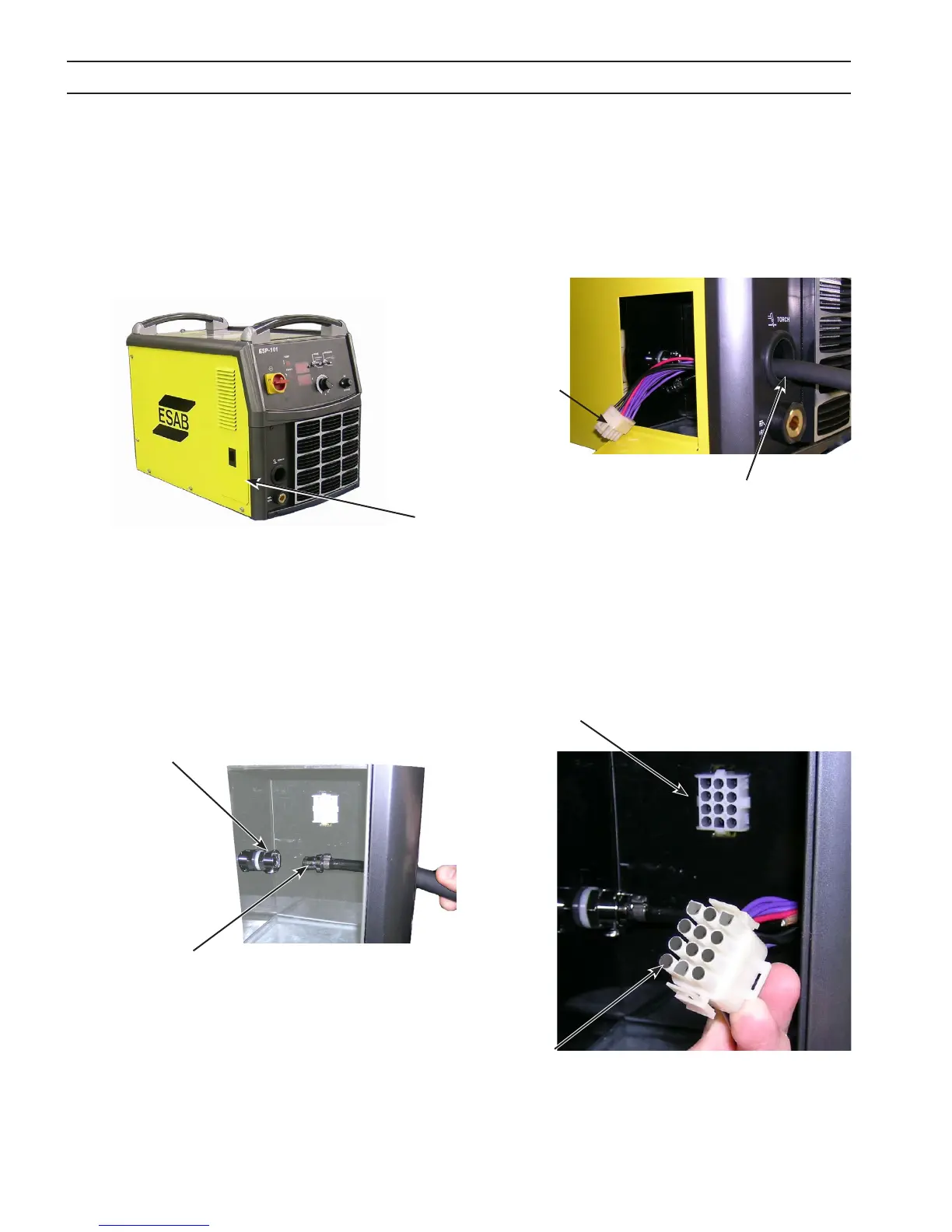

The Extension Cable is connected to the ESP-101 in the same manner as the PT-37 Torch.
1. Open extension cable lead access door on the left side of the ESP-101.
2. Insert the extension cable and air hose through the extension cable access opening on the front of
the console.
3. Connect the extension cable male receptacle (from Remote Junction Box) to the female receptacle.
Check orientation of the sockets so as to ensure a correct t.
4. Connect the air hose (from Remote Junction Box) to the quick-connect tting.
Quick-connect Fitting
Extension Cable and
Air Hose
Extension Cable Lead
Access Door
Extension Cable Access
Opening
5. Close the Extension Cable Lead access door.
