ESAB ESP-101 - Page 35

35
SECTION 3 INSTALLATION
From ESP-101
Extension Cable
Air Connection
Extension Cable
To PT-37 Torch
Extension Cable
Power Connection
2. Insert the free end of the Extension Cable through the grommet on the end of the RJB and make the
power and gas connections as shown.
3. Insert the free end of the PT-37 Torch through the grommet on the other end of the RJB and make the
power and gas connections as shown.
4. Replace all covers and hardware.
Torch Cable
Power Connection
Torch Cable
Air Connection
Note:
Extension Cable connections from
the ESP-101 must be connected
on the solenoid wiring side of the
Remote junction Box.
(Torch connection side is labeled.)

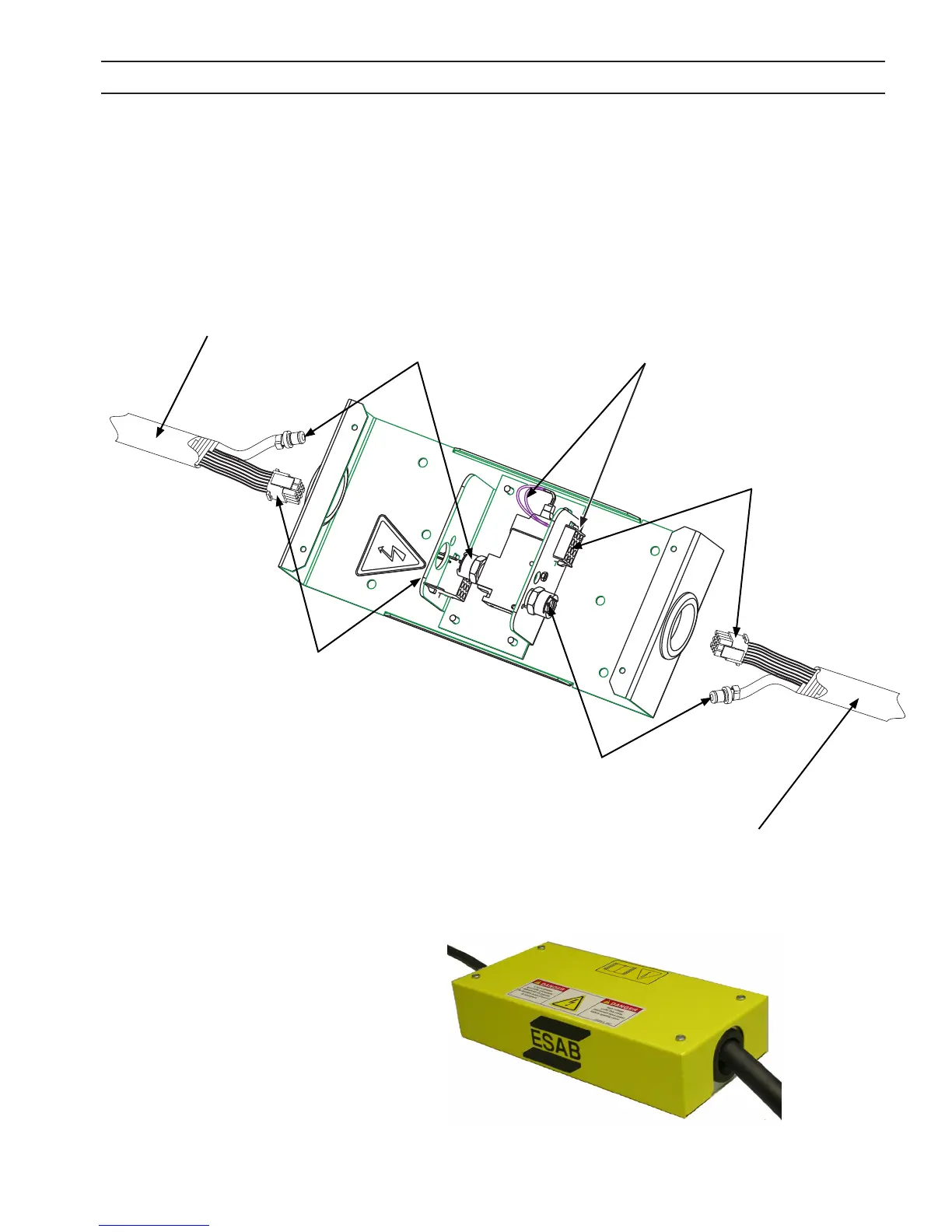

Figure 3-9. Remote Junction Box Connections
