B. Mounting the Remote Junction Box (RJB)
1. With the cover removed from the Remote Junction Box, mount the base to a rigid location on the cut-
ting machine, robot, or other suitable object, using at least 2 of the provided mounting holes. Orient
the box such that the Extension Cable will enter the end of the RJB not marked for torch connection.
SECTION 3 INSTALLATION
c. Re-route the Input Air Hose over to the output side.
d. Couple the free ends of the gas tubes together using the provided union.

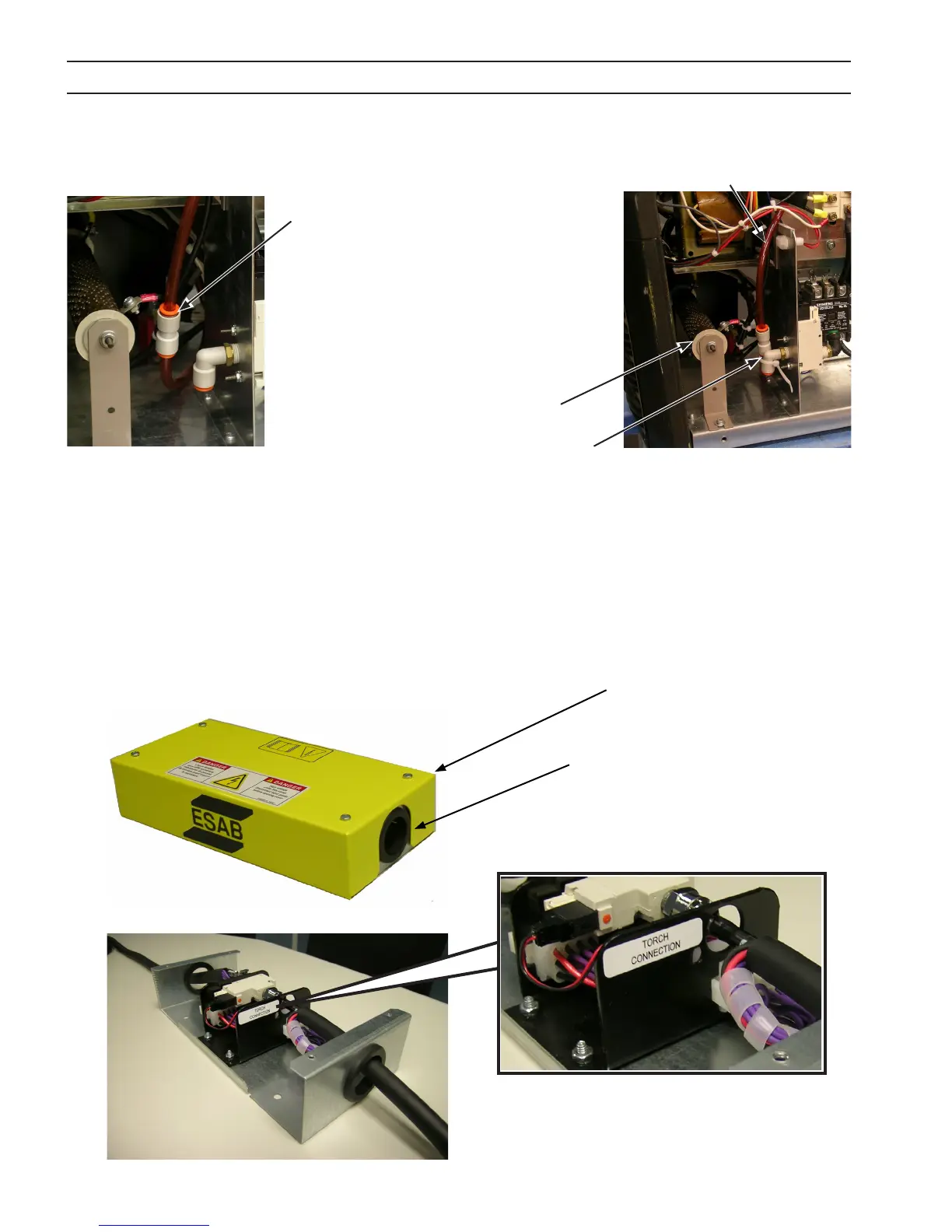

Remote Junction Box
Torch and Extension Cable Openings
(typical at each end of
Remote Junction Box)
(d) Couple the free ends of the gas
tubes together
(e) Secure the tubing
(c) Re-route Input Air Hose
Important Note:
Earlier versions of the ESP-101
(prior to revision G) were equipped with a
pilot arc resistor. Ensure tubing is securely fastened
at least 1 inch away from pilot arc resistor.
Pilot Arc Resistor
(if equipped)
e. If applicable, secure the tubing to prevent contact with pilot arc resistor.
f. Replace the top and right side panel of the power supply.
To Next Page
