ESAB FABRICATOR 141i
Manual 0-5448 4-7 OPERATION
4.02 Attaching the Fusion 140A MIG Gun
Fit the MIG Gun to the Power Source by pushing the MIG Gun connector into the MIG Gun Adapter and tightening the Locking
Screw to secure the MIG Gun in the MIG Gun Adapter.
Connect the 8 pin plug by aligning the keyway then inserting the 8 pin plug into the 8 pin socket and rotate threaded collar fully
clockwise to lock the plug into position.
Art #
A-10356_AB
MIG Gun Adaptor
MIG Gun Connector
MIG Gun Connector
Thumb Screw
8 pin socket
8 pin plug

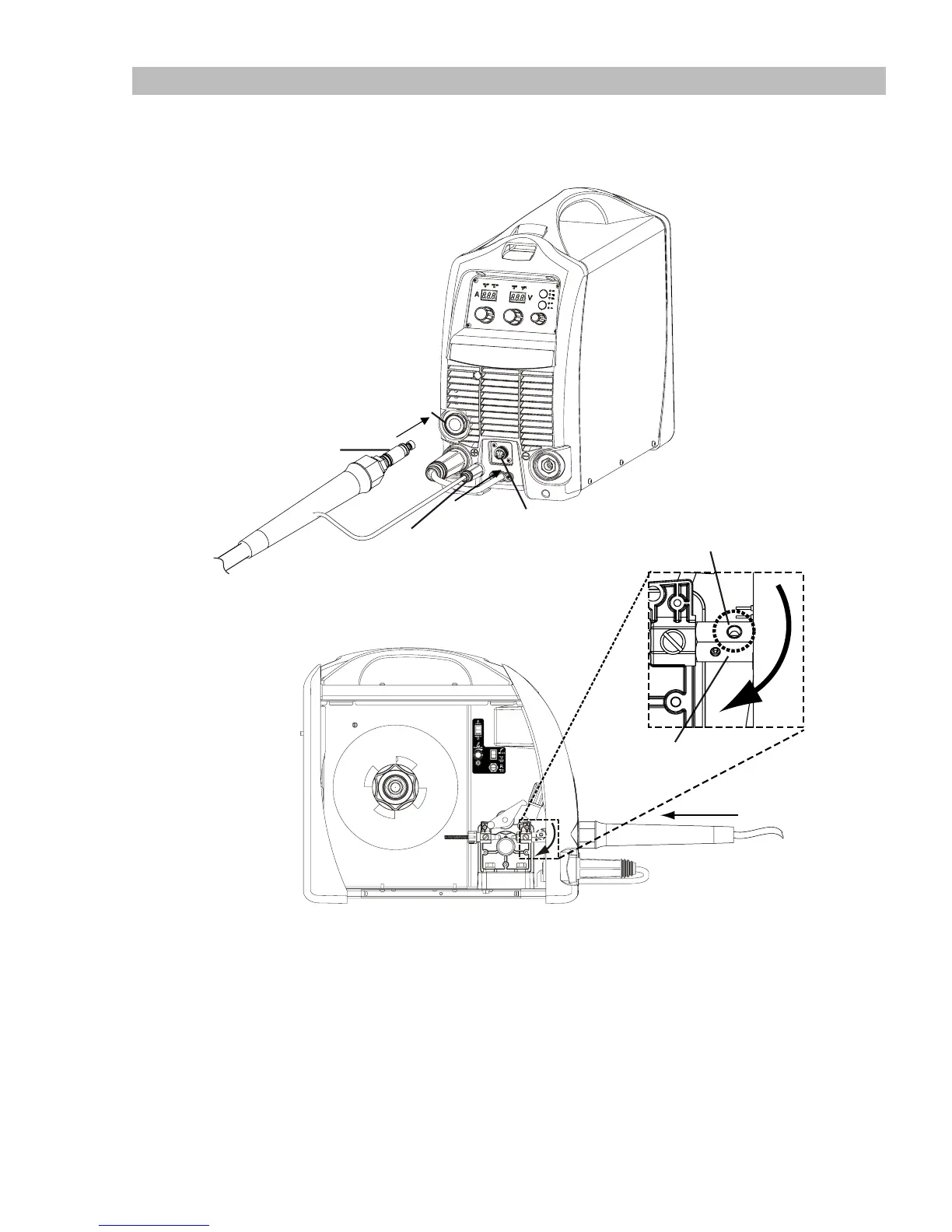

Figure 4-5: Attaching MIG Gun
