ESAB FABRICATOR 141i
TROUBLESHOOTING 6-18 Manual 0-5448

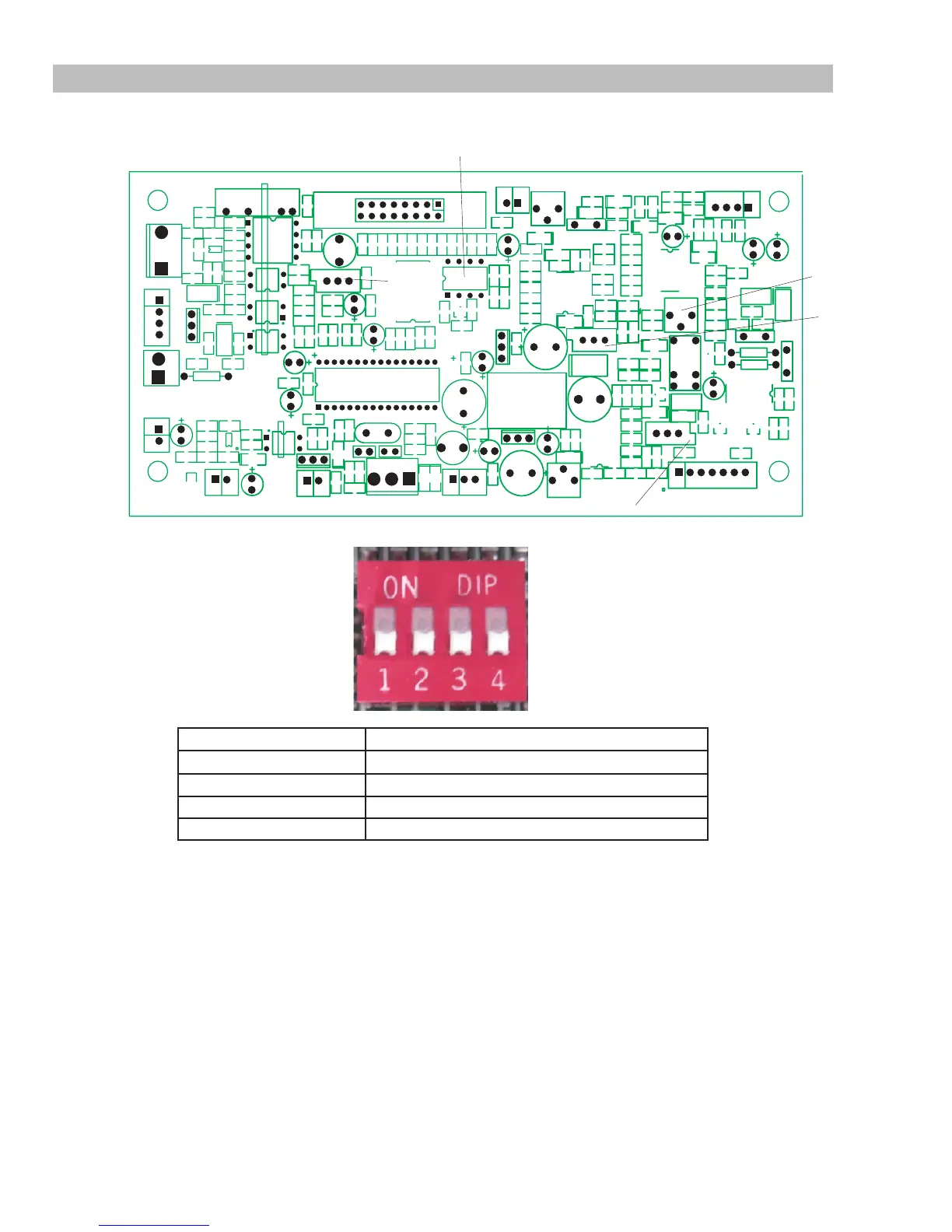

6.12 DIP Switch Settings, Control PCB2
1 DIP Switch SW0, Control PCB2
Art # A-12173
Imin
IFB
PWM
Vmin
MB
GUN
QF/DY
WVIN
IGBTOT
NTCS FUNs CR SOURCE DRIVE
Imax
W2
WVF
A
SW0

Art # A-12221
SW0 position Function
1 Set to OFF for Fabricator 141i
2 Set to OFF for Fabricator 141i
3 Set to OFF for Fabricator 141i
4 Set to OFF for Fabricator 141i
Table 6-41 SW0 Dip Switch functions
