ESAB FABRICATOR 141i
DISASSEMBLY PROCEDURE 7-6 Manual 0-5448
7.05 Rear Panel Removal
!
CAUTION
Read and follow safety information in Section 6.02 before proceeding with disassembly.

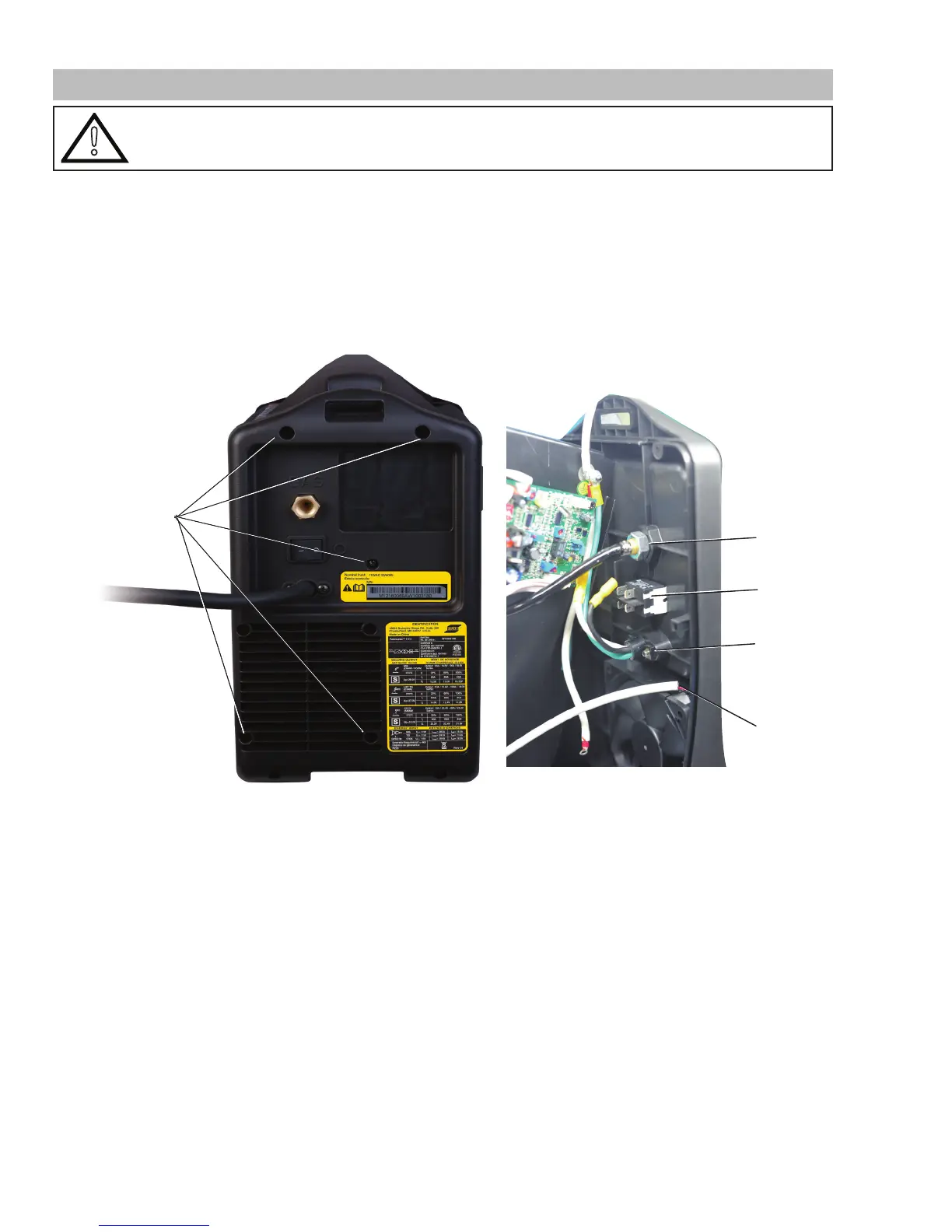

1. Remove the rear panel screws.
2. Disconnect the gas tube.
3. Disconnect Input Cord ground wire.
4. Disconnect the four wires from the switch.
5. Disconnect FUNS Harness from the control PCB2.
2
3
4
5
1
1
A-12931
